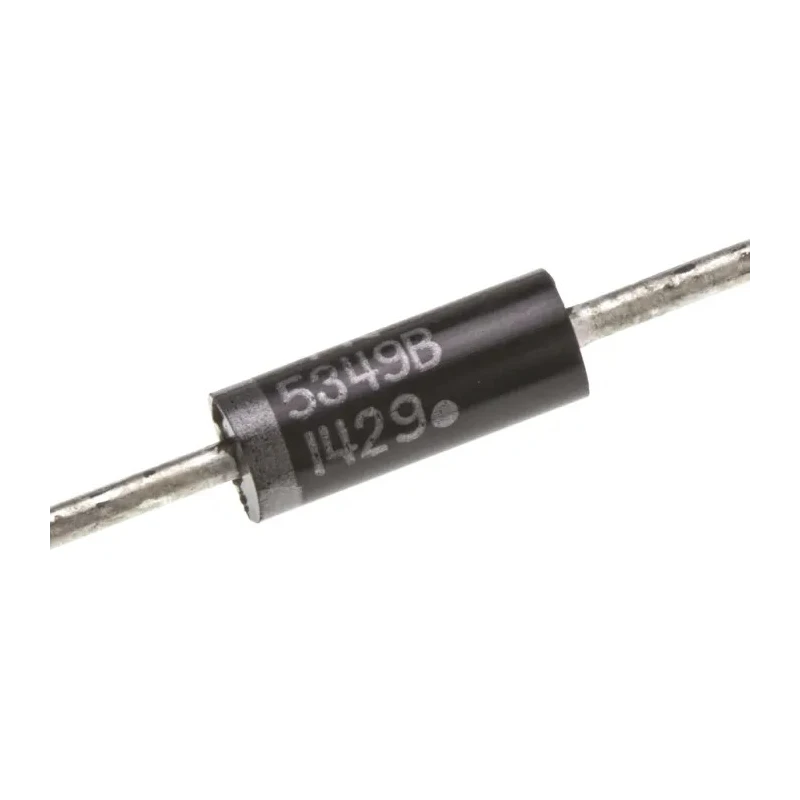

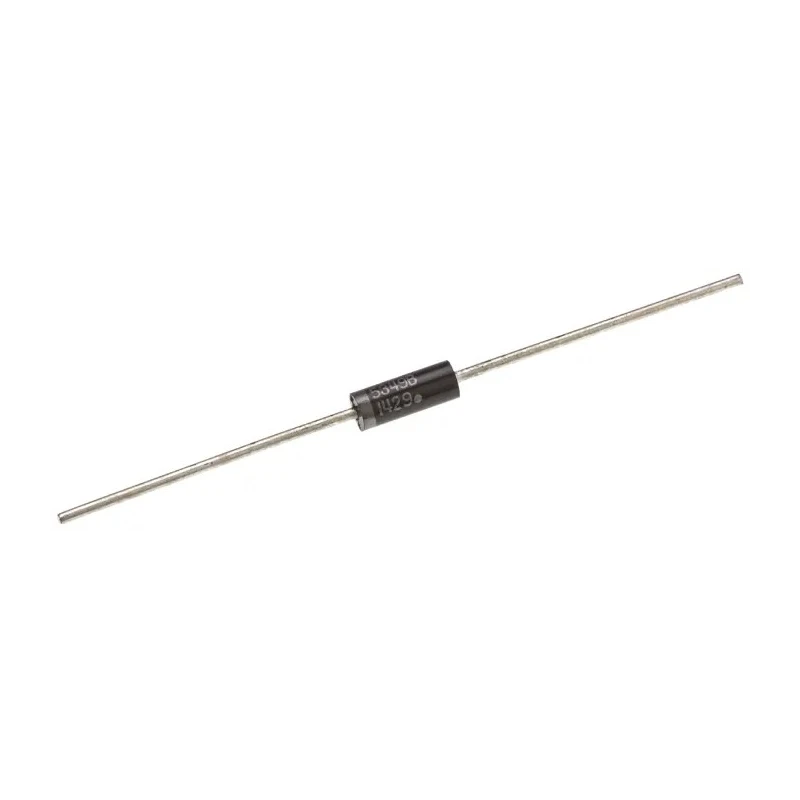

onsemi Zener Diode 12 V 5 W Voltage Regulator Through Hole DO-15 2-Pin 1N5349BRLG
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 3.68mm |
| Length | 8.89mm |
| Model | 1N5349BRLG |
| Mount Type | Through Hole |
| Series | 1N53 |
| Maximum Operating Temperature | 200°C |
| Package Type | DO-15 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation Pd | 5W |
| Diode Configuration | Single |
| Test Current It | 100mA |
| Maximum Reverse Leakage Current | 2μA |
| Nominal Zener Voltage Vz | 12V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 2.5Ω |
Key Features
- Maximum power dissipation is 5 watts ensuring robust performance.
- Nominal Zener voltage of 12 volts with ±5% tolerance for precise regulation.
- Equipped with low maximum reverse leakage current of 2 microamperes.
- Constructed for operating temperatures ranging from -65°C to 200°C.
- Axial leaded design suitable for mounting in various industrial applications.
- Package type DO-15 offers durability and corrosion resistance.
- Maximum Zener impedance is 2.5 ohms supporting stable voltage regulation.
- Test current set at 100 mA to validate device performance.
Product Description
onsemi 1N5349BRLG is a Zener diode designed as a voltage regulator with a nominal voltage of 12 V and maximum power dissipation of 5 W. It features a single diode configuration housed in a durable through hole DO-15 package with two pins, built for reliable performance in various industrial and electronic environments.
The device operates effectively across a wide temperature range from -65°C to 200°C, making it suitable for high-reliability applications. The maximal Zener impedance of 2.5 Ω ensures stable voltage regulation, while the maximum reverse leakage current is maintained at an ultra-low 2 μA to reduce energy loss and improve efficiency.
This model incorporates an axial leaded design with corrosion-resistant and readily solderable leads, compliant to the 1N53 series characteristics. Its robust encapsulation with void-free transfer-molded thermosetting plastic protects against common environmental conditions.
The diode supports tight operating limits and superior performance thanks to its silicon-oxide passivated junction, providing reliable industrial use cases including power management, consumer electronics, portable devices, and other applications requiring precise voltage regulation.
Maximum power dissipation of 5 W ensures robust voltage regulation. Nominal Zener voltage of 12 V with ±5% tolerance for tight control. Low maximum reverse leakage current of 2 μA enhances efficiency. Operating temperature range from -65°C to 200°C suits diverse environments.
Durable through hole DO-15 package with 2 pins for easy mounting. Axial leaded for corrosion resistant and solderable application. Maximum Zener impedance of 2.5 Ω sustains stable voltage output. Test current of 100 mA confirms performance standards.
No automotive standard compliance; suitable for general industrial use. Package contents include a single 1N5349BRLG Zener diode supplied on a reel, facilitating production and assembly efficiency.
This product fits categorically under the Zener Diodes within the Semiconductor sector of Electronics & Electricals, ideal for design and manufacturing professionals requiring high-quality voltage regulation components.
Explore more on similar semiconductor products and voltage regulators at EnvMart for industrial, laboratory, and commercial electronic applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal Zener voltage of this model is 12 volts with a tolerance of ±5%.
The maximum power dissipation of the 1N5349BRLG is 5 watts, ensuring robust performance.
This model features a low maximum reverse leakage current of 2 microamperes.
It operates effectively across a temperature range from -65°C to 200°C.
This model is designed for through hole mounting, featuring a durable DO-15 package.
The maximum Zener impedance is 2.5 ohms, which supports stable voltage regulation.
The test current is set at 100 mA to validate the performance of the diode.
The dimensions of this model are 8.89 mm in length and 3.68 mm in height.
This Zener diode has 2 pins, suitable for various applications.
It features a single diode configuration, making it suitable for voltage regulation applications.
The 1N5349BRLG is manufactured in India.
This model belongs to the 1N53 series of Zener diodes.
