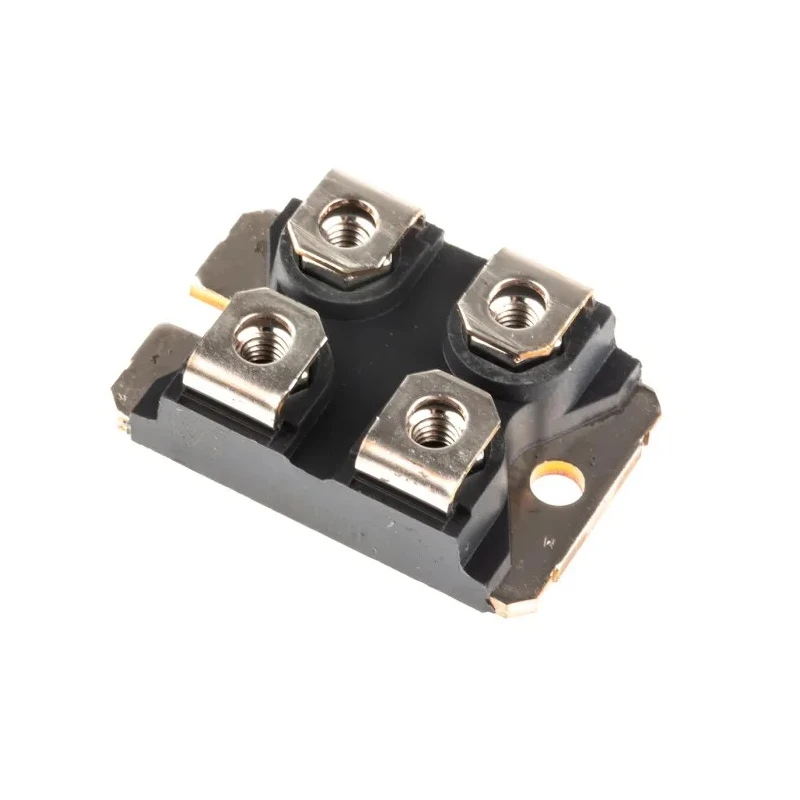

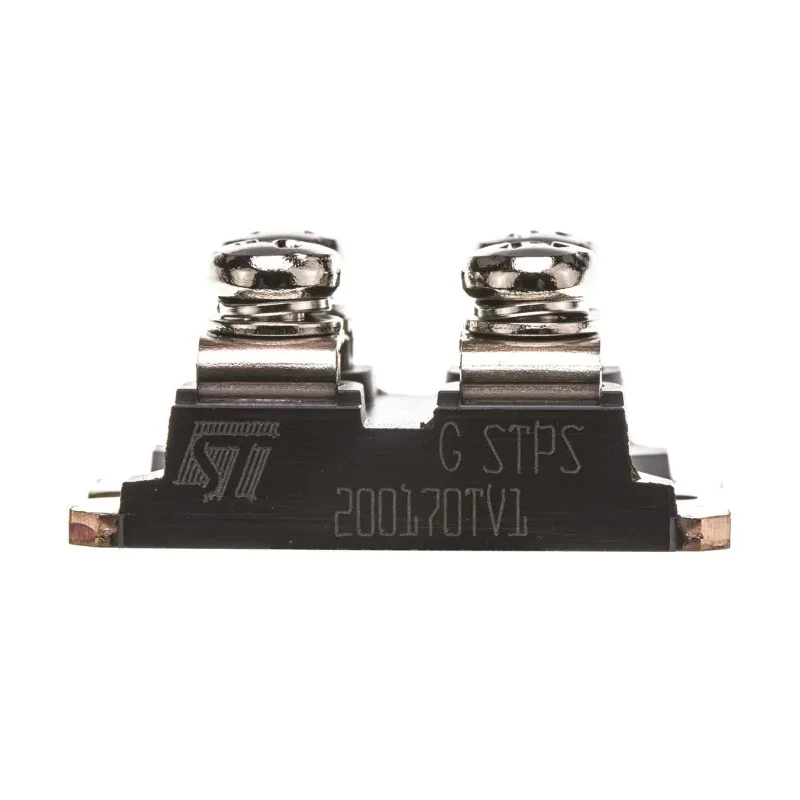

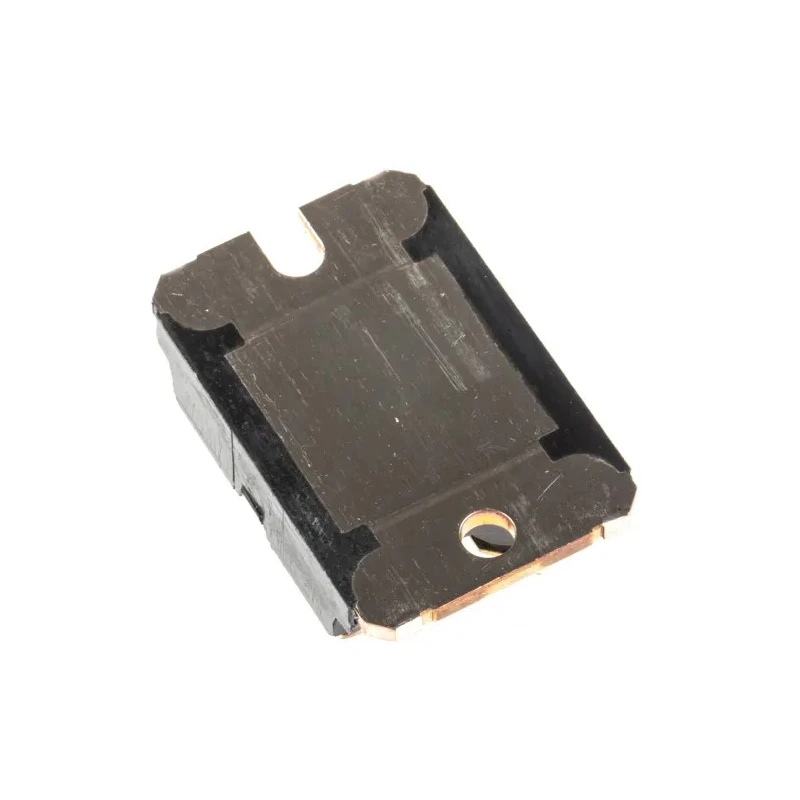

STMicroelectronics Schottky Diode 170 V 200 A 4-Pin ISOTOP Rectifier STPS200170TV1

STMicroelectronics STPS200170TV1 Schottky Diode is a high-performance 170 V, 200 A rectifier configured with a single diode configuration and packaged in a 4-pin ISOTOP insulated panel mount. This device is specialized for use in the secondary rectification of switched mode power supplies, offering significant efficiency gains due to its negligible switching losses and low forward voltage drop of 850 mV.

Designed for industrial and commercial applications, the diode supports a wide operating temperature range from -55°C minimum to 150°C maximum and provides excellent surge tolerance with a peak non-repetitive forward surge current of 700 A. The ISOTOP package ensures insulation voltage up to 2500 VRMS and a low capacitance of 45 pF, enabling better high frequency performance and reliability.

Its compact physical dimensions - length 38.2 mm, width 25.5 mm, and height 9.1 mm - facilitate installations in densely packed circuit boards. The device features a low leakage current, avalanche rating, and an optimally balanced trade-off between leakage current and forward voltage drop, enhancing power efficiency and durability.

This diode is ideally suited for electronic components requiring high current rectification, including industrial power supplies, automotive electronics, and high-frequency switching applications. Its reliable construction and ISOTOP mounting type provide robust mechanical and thermal stability.

Maximum continuous forward current of 200 A for high current handling requirements. Reverse repetitive voltage rating at 170 V ensures dependable blocking capability. Low forward voltage drop minimizes conduction losses.

High surge current capacity for transient robustness. Wide operating temperature tolerance supports harsh environments. Insulated ISOTOP package with high voltage isolation. Low capacitance suitable for high-frequency applications.

Compact size optimizes space in power modules and assemblies.

Environmentally compliant as per RoHS certificate of compliance, this STMicroelectronics product integrates seamlessly with design and manufacturing processes for electrical and electronic systems. Perfect for industrial, laboratory, HVAC, and manufacturing use cases requiring efficient and reliable rectification.
