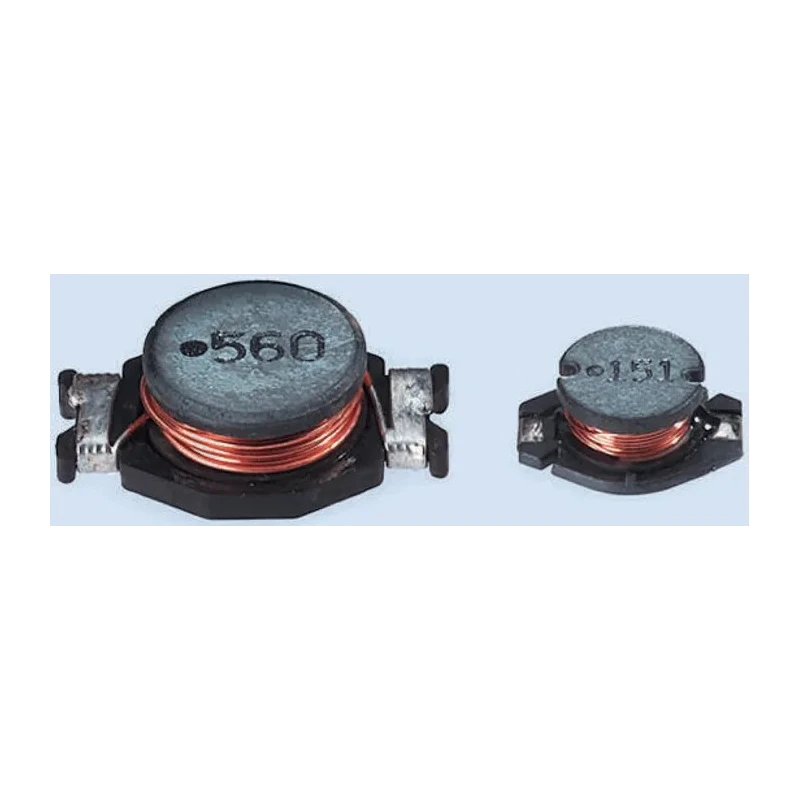

Wurth Elektronik Wirewound Surface Mount Inductor with Ferrite Core 100μH ±20% 300mA Idc 7445520
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Height | 2.92mm |
| Length | 6.6mm |
| Model | 7445520 |
| Depth | 4.45mm |
| Packaging | Reel |
| Series | WE-PD4 |
| Maximum Operating Temperature | 100°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 100μH |
| Standards/Approvals | RoHS |
| Maximum DC Current | 300mA |
| Maximum DC Resistance | 1.27Ω |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 9MHz |
| Automotive Standard | AEC-Q200 |
Key Features
- Compact design with length 6.6mm, height 2.92mm, and depth 4.45mm.
- Unshielded wirewound surface mount construction with ferrite core.
- Maximum DC current rating of 300mA for reliable operation.
- Wide operating temperature range from -40°C to 100°C.
- Complies with RoHS and AEC-Q200 automotive standards.
- Maximum DC resistance of 1.27Ω ensures low power loss.
- Maximum self-resonant frequency of 9MHz supports high-frequency applications.
- Supplied on reel packaging for efficient assembly.
Product Description
Wurth Elektronik 7445520 WE-PD4 series wirewound surface mount inductor offers a reliable ferrite core design with inductance of 100μH and tolerance ±20%. It supports a maximum DC current of 300mA, making it suitable for various high efficiency electronic circuits.
This inductor is constructed with an unshielded wirewound configuration and a compact footprint measuring 6.6mm in length, 2.92mm in height, and 4.45mm in depth, optimized for surface mount technology.
The component operates efficiently within temperature ranges from -40°C to 100°C and complies with industry standards including RoHS and the automotive AEC-Q200 certification, emphasizing suitable use in automotive and industrial environments.
It exhibits a maximum DC resistance of 1.27Ω, facilitating low power losses, and a maximum self-resonant frequency of 9MHz, ensuring suitability for high-frequency applications such as switch-mode power supplies and interference suppression.
Packaging on reel supports automated assembly processes and enhanced production efficiency. The ferrite core material contributes to low loss and thermal stability under operational stress.
Compact length of 6.6mm, height 2.92mm, depth 4.45mm suitable for dense PCB layouts. Unshielded wirewound inductor construction with ferrite core. Maximum DC current of 300mA supports moderate power applications. Wide operating temperature range from -40°C to 100°C ensures versatility.
Compliant to RoHS and automotive AEC-Q200 standards. Low maximum DC resistance of 1.27Ω reduces energy losses. High self-resonant frequency of 9MHz enables performance in high-frequency circuits. Delivered on reel packaging for easy surface mount device placement.
This Wurth Elektronik inductor is ideal for industrial electronics, automotive systems, power supplies, and filtering applications. It's an essential component for designers seeking compact, efficient inductors with reliable performance.
Explore more Wurth Elektronik Surface Mount Inductors and related electronic components on EnvMart for your technical and production needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 100μH with a tolerance of ±20%.
It has a maximum DC current rating of 300mA, suitable for moderate power applications.
The dimensions are 6.6mm in length, 2.92mm in height, and 4.45mm in depth, making it compact for surface mount technology.
The maximum self-resonant frequency is 9MHz, enabling performance in high-frequency circuits.
It operates efficiently within a temperature range from -40°C to 100°C.
The maximum DC resistance is 1.27Ω, which helps reduce energy losses.
It complies with RoHS and AEC-Q200 automotive standards, making it suitable for automotive and industrial applications.
It is supplied on reel packaging, which supports efficient automated assembly processes.
The core material used is ferrite, which contributes to low loss and thermal stability.
This model features a surface mount termination style, optimized for PCB layouts.
It is suitable for various applications including industrial electronics, automotive systems, power supplies, and filtering.
This inductor belongs to the WE-PD4 series from Wurth Elektronik.
