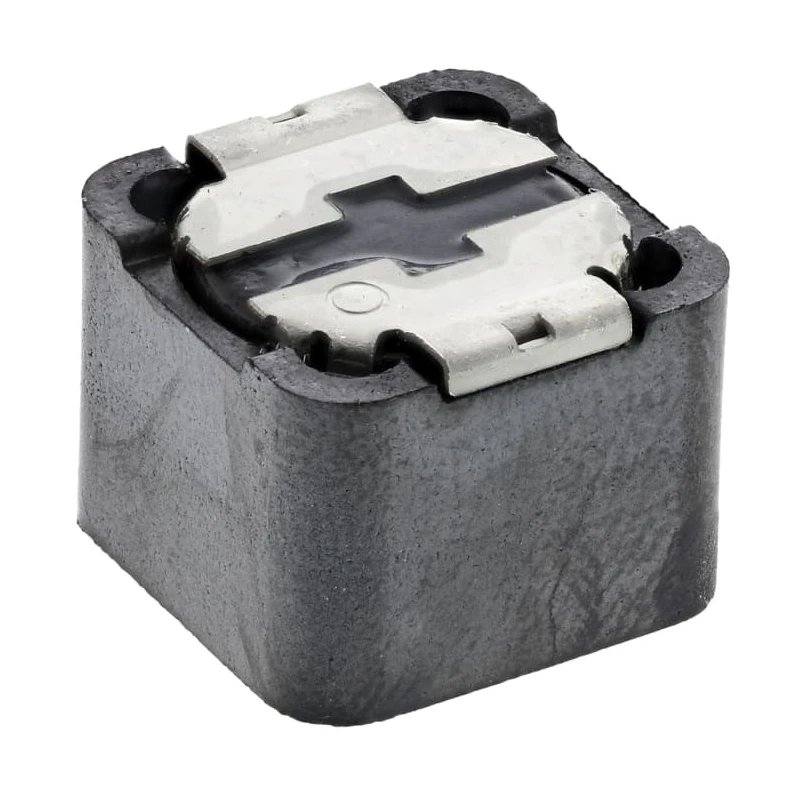

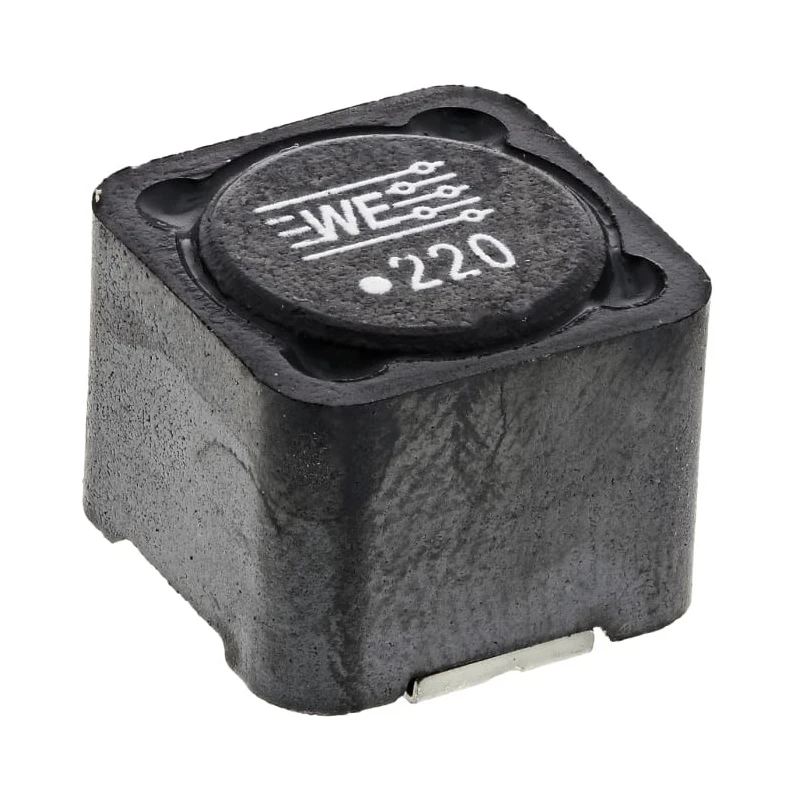

Wurth Elektronik WE-PD 1210 Shielded Wirewound Surface Mount Inductor with Ferrite Core 22 μH ±20% 5.3 A IDC 7447709220

Wurth Elektronik 7447709220 WE-PD series shielded wirewound surface mount inductor features a ferrite core with an inductance of 22 μH ±20% tolerance and a maximum DC current rating of 5.3 A. Housed in a 1210 package with tape and reel packaging, this inductor is designed to support high-performance applications in electronic circuits. Its magnetic shielding reduces leakage fields, ideal for high density PCB layouts.

The inductor supports operation across a wide temperature range from -40°C to 125°C, making it well-suited for automotive and industrial environments adhering to AEC-Q200 standards. The device has low DC resistance of 28 milliohms to minimize conduction losses, enhancing efficiency.

Certifications include compliance with JEDEC JS709B, RoHS, REACH, and IEC 62024-2-2020, ensuring environmentally friendly and quality-assured components. With a maximum self-resonant frequency of 10 MHz, the inductor is effective in power conversion applications such as switching regulators and integrated DC/DC converters, particularly in systems requiring efficiencies above 86%, including graphic cards and other high-frequency electronics.

Constructed with wirewound inductance and a moulded ferrite core, the part supports recommended solder reflow profiles for easy assembly and long-term reliability. Dimensions are 12mm length, 10mm height, and 12mm depth, suitable for compact system designs.

Shielded construction provides low magnetic interference. High current capability of 5.3 A supports demanding power applications. Ferrite core optimizes inductance and frequency response. Compliance with multiple industry standards guarantees durability and environmental safety.

Tape and reel packaging facilitates automated placement on assembly lines.

This Wurth Elektronik surface mount inductor is ideal for industrial, automotive, and commercial electronic manufacturing requiring powerful, reliable inductors for efficient power management. Explore the extensive range of Surface Mount Inductors from Wurth Elektronik on EnvMart for your next project.
