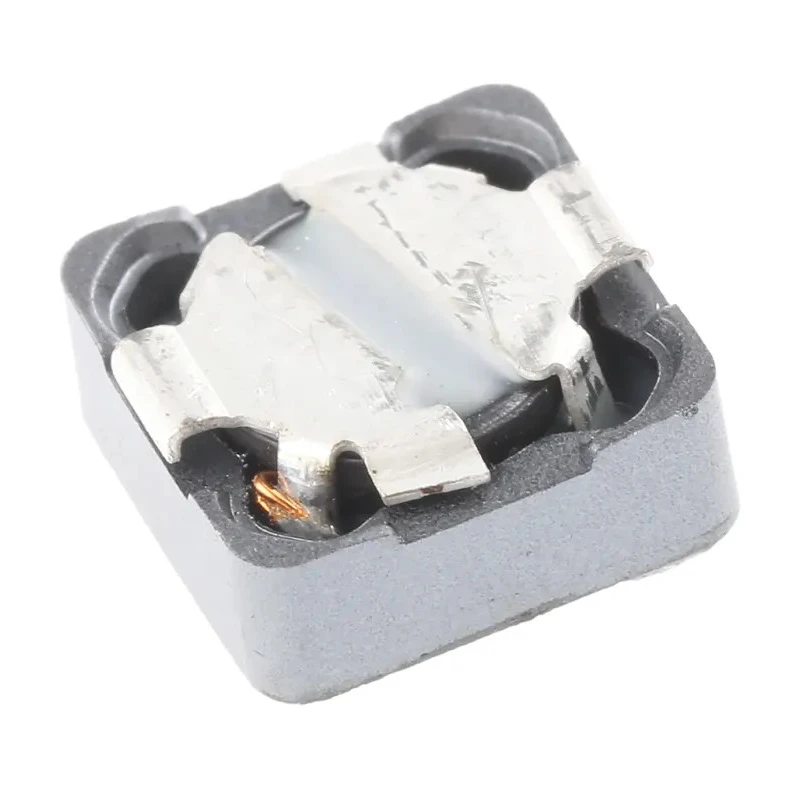

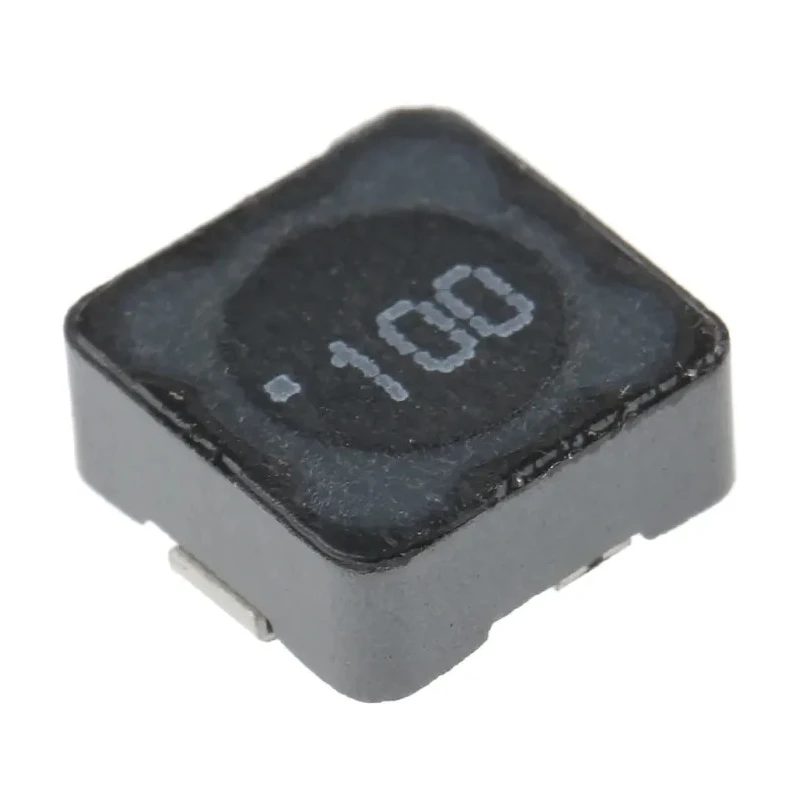

Wurth Elektronik WE-PD Shielded Wirewound Surface Mount Inductor with Ferrite Core, 10 μH ±20 %, 1.38 A Idc 74477810
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 4mm |
| Brand | Wurth Elektronik |
| Height | 3.2mm |
| Length | 7.3mm |
| Model | 74477810 |
| Depth | 7.3mm |
| Packaging | Tape & Reel |
| Series | WE-PD |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 10μH |
| Standards/Approvals | RoHS |
| Maximum DC Current | 1.38A |
| Maximum DC Resistance | 72mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 23MHz |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- Magnetically shielded construction reduces electromagnetic interference.
- Suitable for high current applications up to 1.38 A DC.
- Wirewound inductor with ferrite core ensures high reliability and stability.
- Operates from -40°C to +125°C for robust performance.
- Complies with RoHS and automotive standard AEC-Q200.
- Designed for switching regulators and efficient DC-DC converters.
- Available in tape & reel packaging for automated assembly.
Product Description
Wurth Elektronik 74477810 WE-PD series shielded wirewound Surface Mount Inductor features a ferrite core designed for optimized magnetic performance and reduced leakage. It provides a nominal inductance of 10 μH with a tolerance of ±20 %, supporting maximum DC current of 1.38 A. Compact form factor with 7.3 mm length and depth and 3.2 mm height, plus a small 4 mm diameter, makes this component suitable for space-constrained electronic designs.
This wirewound inductor is magnetically shielded to minimize electromagnetic interference and is constructed with a ferrite core to enhance stability and durability. It meets automotive quality and reliability standards (AEC-Q200) and is RoHS compliant, ensuring safe use in automotive and industrial electronics.
Operating in a wide temperature range from -40°C to +125°C, the inductor is designed for demanding environments in switching regulators, integrated DC-DC converters, and graphics cards. Its low DC resistance of 72 mΩ contributes to efficient energy management.
The product comes in tape & reel packaging, making it suitable for high-volume automated surface mount technology (SMT) assembly lines. The inductors are ideal for applications requiring high efficiency (>86%) switching regulators.
Magnetically shielded construction for reduced electromagnetic interference. Compact size suitable for high-density PCB layouts. Wide operating temperature range from -40°C to 125°C. Complies with industry standards including RoHS and AEC-Q200 automotive certification.
Low DC resistance enhances efficiency. Optimized for switching regulators and DC-DC converters. Ferrite core improves electrical performance and reliability. Available in tape & reel packaging for SMT processes.
Wurth Elektronik products are known for quality and reliability in industrial, automotive, and consumer electronics. Explore the full WE-PD series and other inductors for your applications in our extensive catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal inductance of this inductor is 10 μH with a tolerance of ±20%.
This model supports a maximum DC current of 1.38 A.
The inductor has a length and depth of 7.3 mm, a height of 3.2 mm, and a diameter of 4 mm.
It operates within a temperature range of -40°C to +125°C.
This inductor features a ferrite core designed for optimized magnetic performance.
The maximum self-resonant frequency is 23 MHz.
It complies with RoHS and the automotive standard AEC-Q200.
The termination style of this inductor is surface mount.
It comes in tape & reel packaging, making it suitable for automated assembly.
It is designed for use in switching regulators, integrated DC-DC converters, and graphics cards.
The maximum DC resistance is 72 mΩ, contributing to efficient energy management.
The magnetically shielded construction minimizes electromagnetic interference, enhancing performance in sensitive applications.
