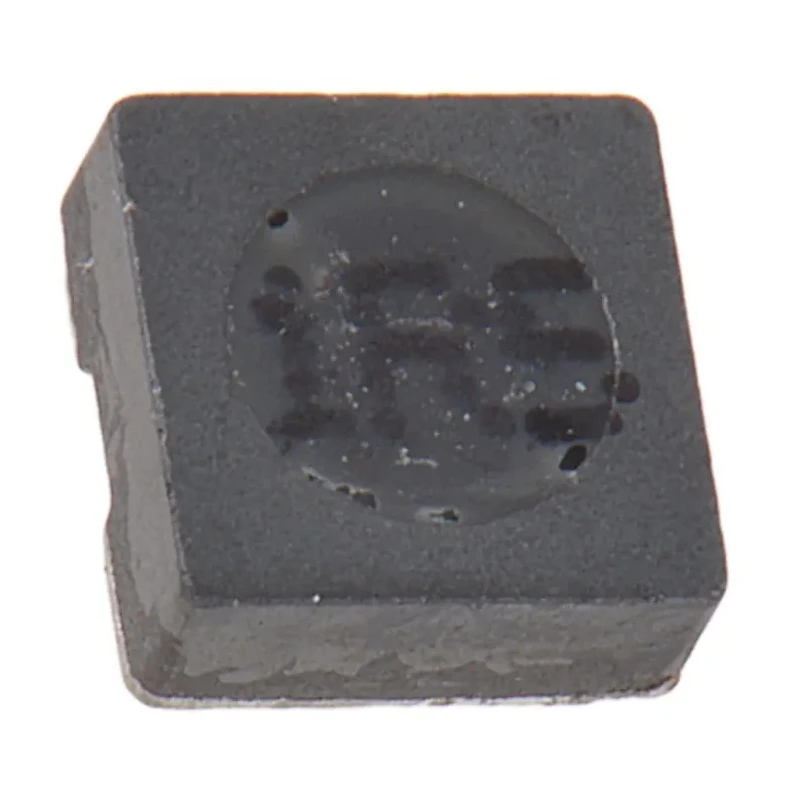

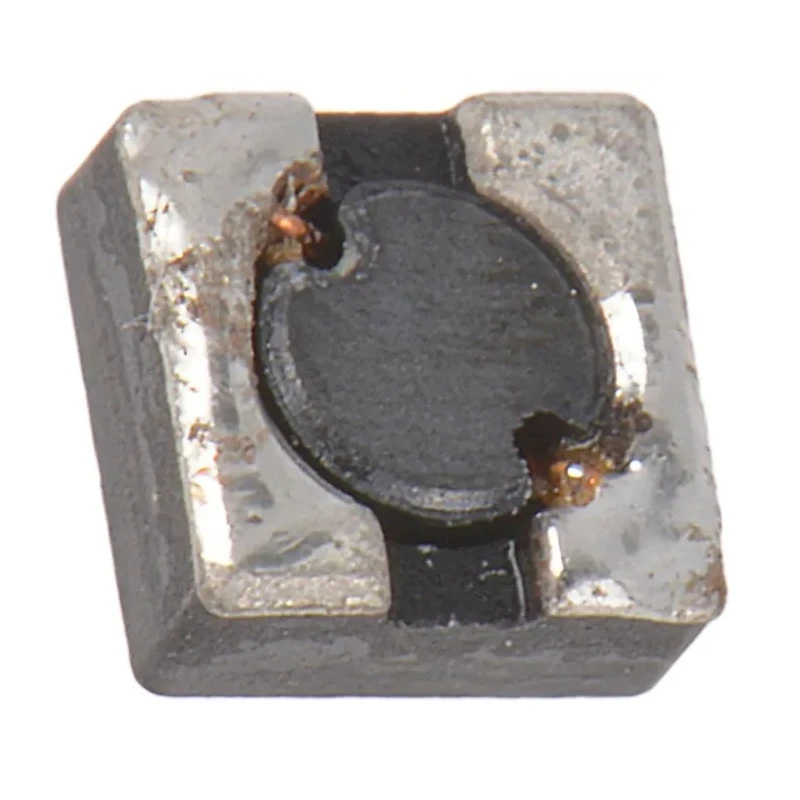

Wurth Elektronik WE-TPC 3816 Shielded Wirewound Surface Mount Inductor with Ferrite Core 1.5 μH ±30 % 1.75 A Idc 744031001
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 2.6mm |
| Brand | Wurth Elektronik |
| Operating Temperature | - 40 to +125°C |
| Height | 1.65mm |
| Length | 3.8mm |
| Depth | 3.8mm |
| Packaging | Tape & Reel |
| Series | WE-TPC |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 1.5μH |
| Package/Case | 3816 |
| Maximum DC Current | 1.75A |
| Pin Count | 2 |
| Maximum DC Resistance | 47mΩ |
| Inductance Tolerance | ±30 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 125MHz |
| Inductor Construction | Wirewound |
| Standards/ApprovalsIEC 60286-3 | 2013, IEC 61249-2-21, IPC/JEDEC J-STD-020E, JEDEC JS709B, REACH, RoHS |
| IEC 60286-3 | 2013, IEC 61249-2-21, IPC/JEDEC J-STD-020E, JEDEC JS709B, REACH, RoHS |
Key Features
- Constructed with a ferrite core for optimal magnetic performance.
- Compact 3816 package size measuring 3.8mm length and depth.
- Magnetically shielded design reduces electromagnetic interference.
- Maximum operating temperature rated at 125°C and minimum at -40°C.
- Features surface mount termination suitable for tape and reel packaging.
- Rated for a maximum DC resistance of 47 mΩ for efficient current handling.
- Maximum self resonant frequency of 125 MHz ensures high-frequency stability.
Product Description
Wurth Elektronik 744031001 is a WE-TPC series shielded wirewound surface mount inductor featuring a ferrite core, designed for high current and compact profile applications.
This inductor delivers an inductance of 1.5 μH with a tolerance of ±30% and supports a maximum DC current of 1.75 A, making it ideal for portable power devices and embedded systems that require efficient power management.
Its compact 3816 package (3.8 mm length and depth, 1.65 mm height) and magnetically shielded construction effectively minimize magnetic leakage fields, enhancing circuit stability in dense PCB designs.
The device is suitable for operation over a wide temperature range from -40°C to 125°C, supports surface mount termination, and comes in tape and reel packaging optimized for automated assembly.
Its maximum DC resistance of 47 mΩ ensures low power losses, while the high self-resonant frequency of 125 MHz supports demanding high-frequency applications.
Manufactured in China, this inductor complies with international standards including IEC 60286-3:2013, RoHS, REACH, IPC/JEDEC J-STD-020E, and JEDEC JS709B, ensuring reliability and environmental compliance.
Constructed with a ferrite core for improved magnetic characteristics. Shielded to reduce electromagnetic interference in sensitive equipment. Compact footprint ideal for space-constrained electronic assemblies. Wide operating temperature range suitable for industrial and commercial uses.
High current rating enables efficient power conversion in portable devices. Compliance with multiple international quality and environmental standards.
This Surface Mount Inductor is widely used in portable power supplies, DC/DC converters, embedded PCs, and telemetric devices, offering robust performance in industrial, telecommunications, and consumer electronics applications.
Explore more high-quality inductors and electronic components from Wurth Elektronik on EnvMart for your power management needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 1.5 μH with a tolerance of ±30%.
It supports a maximum DC current of 1.75 A, making it suitable for high current applications.
The operating temperature range is from -40°C to 125°C, allowing for use in various environments.
This inductor has a compact package size of 3.8 mm in length and depth, and a height of 1.65 mm.
The maximum DC resistance is 47 mΩ, which helps in minimizing power losses during operation.
The maximum self-resonant frequency is 125 MHz, ensuring stability in high-frequency applications.
It features surface mount termination, suitable for automated assembly processes.
The inductor is constructed with a ferrite core, which enhances its magnetic performance.
It complies with several international standards including IEC 60286-3:2013, RoHS, and REACH.
This inductor is widely used in portable power supplies, DC/DC converters, and embedded systems.
The inductor is available in tape and reel packaging, which is optimized for automated assembly.
