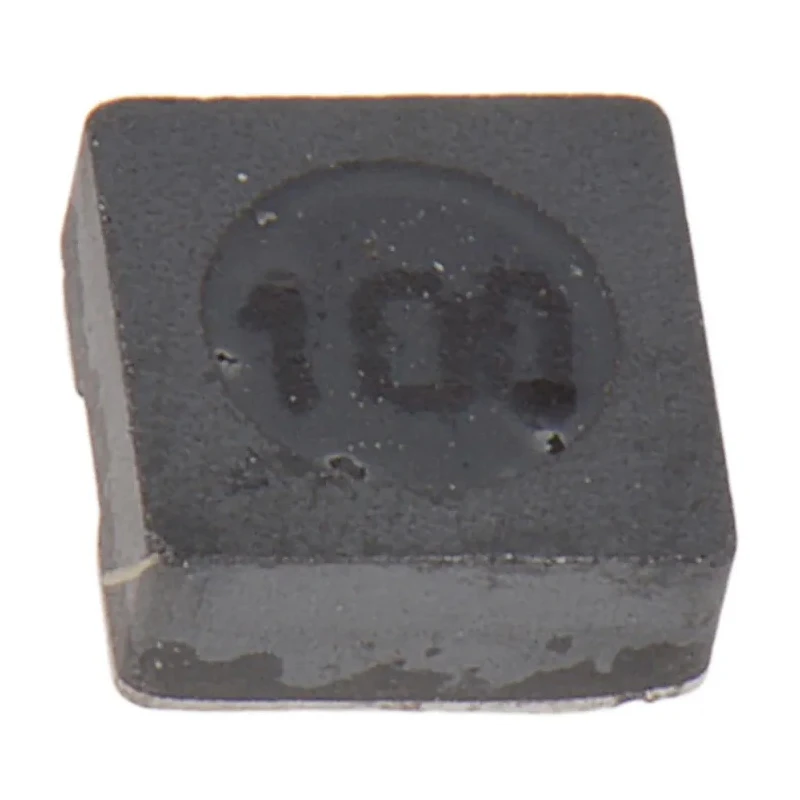

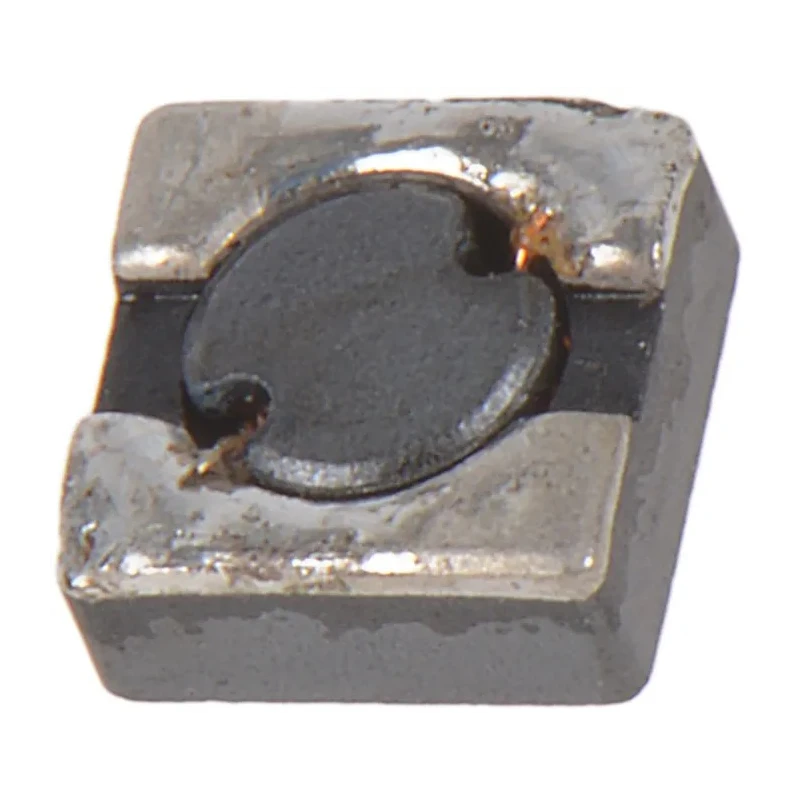

Wurth Elektronik Wirewound Surface Mount Inductor 10 μH ±30 % Shielded 740 mA Idc 3816 WE-TPC 744031100
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 2.6mm |
| Brand | Wurth Elektronik |
| Operating Temperature | - 40 to +125°C |
| Height | 1.65mm |
| Length | 3.8mm |
| Depth | 3.8mm |
| Packaging | Tape & Reel |
| Series | WE-TPC |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 10μH |
| Package/Case | 3816 |
| Maximum DC Current | 740mA |
| Maximum DC Resistance | 205mΩ |
| Inductance Tolerance | ±30 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 45MHz |
| Inductor Construction | Wirewound |
| Standards/ApprovalsRoHS, IEC 60286-3 | 2013, IEC 61249-2-21, IPC/JEDEC J-STD-020E, JEDEC JS709B, REACH |
Key Features
- Magnetically shielded design reduces leakage fields.
- Compact 3816 package suitable for SMT applications.
- Operating temperature range from -40°C to 125°C.
- Maximum DC resistance of 205 mΩ ensures efficient current flow.
- Core made of ferrite for high performance and durability.
- Inductance tolerance ±30 % to suit various circuit requirements.
- Maximum self-resonant frequency of 45 MHz for high-frequency applications.
- Termination style is surface mount for ease of PCB assembly.
Product Description
Wurth Elektronik 744031100 is a shielded wirewound Surface Mount Inductor featuring a ferrite core with an inductance of 10 μH and a tolerance of ±30 %. Designed for compact SMT packages with dimensions of 3.8 mm length, 2.6 mm diameter, and 1.65 mm height, this WE-TPC series inductor delivers a maximum DC current of 740 mA and a DC resistance of 205 mΩ, ensuring reliable performance under various electrical loads.
This magnetically shielded inductor minimizes electromagnetic interference and leakage fields, making it ideal for portable power applications such as PDAs, digital cameras, PCMCIA cards, displays, DC/DC converters, embedded PCs, mobile data gathering, and telemetry systems. It operates efficiently across a wide temperature range from -40°C to 125°C.
The package is tape and reel, supporting automated manufacturing processes. It conforms to the RoHS directive and meets standards IEC 60286-3:2013, IEC 61249-2-21, IPC/JEDEC J-STD-020E, JEDEC JS709B, and REACH, ensuring compliance with industry environmental and quality standards.
Wirewound construction on a ferrite core provides excellent stability and inductance under diverse electrical conditions. The WE-TPC series offers a maximum self-resonant frequency of 45 MHz, suited for applications requiring high-frequency responses.
Magnetically shielded design to reduce EMI and leakage flux. Compact 3816 package with tape and reel packaging. Wide operating temperature range of -40°C to 125°C. Maximum DC current of 740 mA with low resistance of 205 mΩ.
Compliant with RoHS, IEC, IPC/JEDEC, and REACH standards. Surface mount termination style for easy PCB integration. Suitable for portable power and embedded electronic applications. Ferrite core for high magnetic properties and reliability.
This inductor is widely used in industrial electronics, portable devices, power management circuits, telecommunications, and embedded systems. The WE-TPC series offers reliable inductance performance, mechanical stability, and compliance with international standards, making it a preferred choice for engineers and designers.
Explore EnvMart's extensive range of inductors and electronic components for your circuit design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this inductor is 10 μH with a tolerance of ±30%.
It has a maximum DC current rating of 740 mA.
This inductor has a length of 3.8 mm, a diameter of 2.6 mm, and a height of 1.65 mm.
The operating temperature range is from -40°C to +125°C.
The maximum DC resistance is 205 mΩ, ensuring efficient current flow.
The termination style is surface mount, facilitating easy integration into PCBs.
It has a maximum self-resonant frequency of 45 MHz, suitable for high-frequency applications.
The core material is ferrite, and it features a wirewound construction.
It is packaged in tape and reel format, which supports automated manufacturing processes.
It complies with RoHS, IEC 60286-3:2013, IEC 61249-2-21, IPC/JEDEC J-STD-020E, JEDEC JS709B, and REACH standards.
This model is suitable for portable power applications, including PDAs, digital cameras, and DC/DC converters.
This inductor belongs to the WE-TPC series by Wurth Elektronik.
