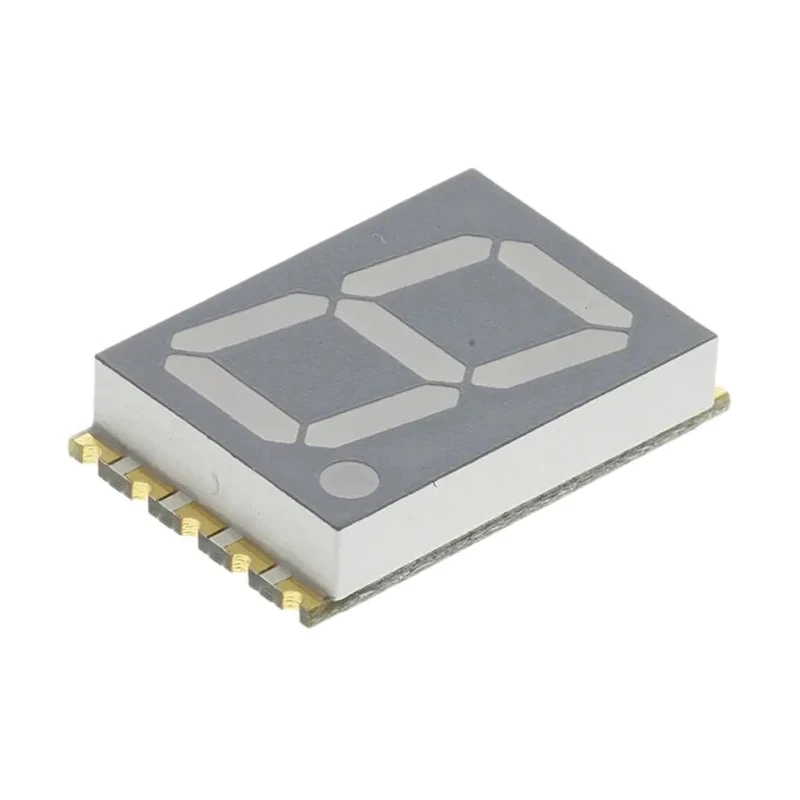

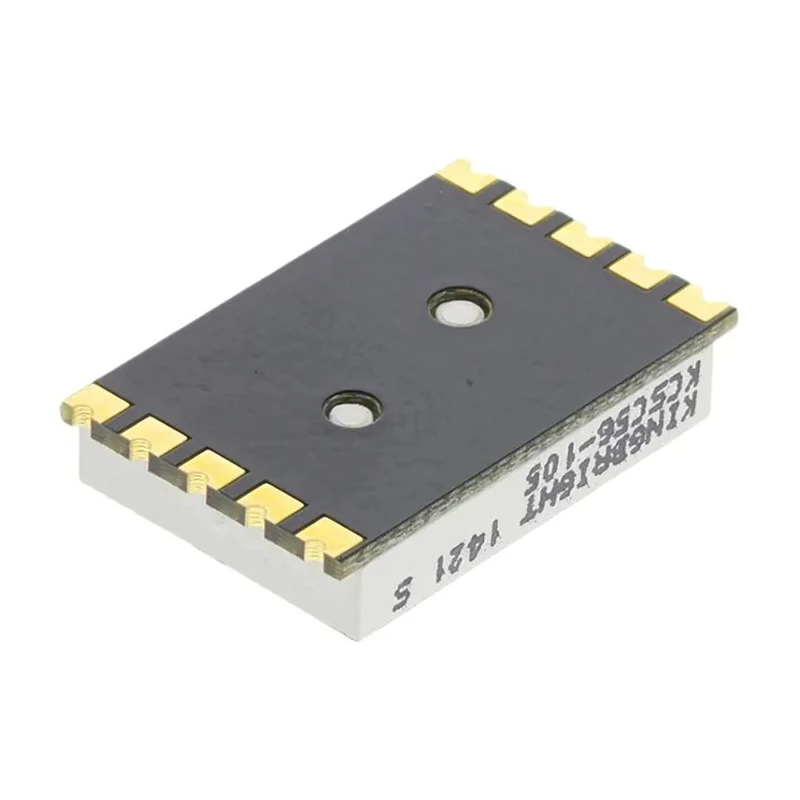

Kingbright 1 Digit 7 Segment LED Display Cathode Red 44mcd Right Side 14.2mm KCSC56-105

Kingbright KCSC56-105 is a high-quality single-digit 7-segment LED display designed for industrial, electronic, and commercial applications requiring clear numeric visual output. Featuring a bright red LED with a dominant wavelength of 630nm and luminous intensity of 44mcd, it provides excellent visibility and on/off contrast.

The display integrates a common cathode configuration, making it compatible with various driver circuits and simplifying the wiring requirements. Its surface mount design facilitates easy PCB assembly with reliable mechanical stability.

Character dimensions measure 8mm in width and 14.2mm in height, with the decimal point positioned on the right side for precise numeric indication. The display has a grey face and white segment coloring to enhance character clarity and reduce visual strain.

The operating temperature range from -40°C to 85°C ensures reliable performance under harsh environmental conditions. Low power consumption is maintained with a power dissipation rating of 75mW, forward voltage of 2V, and forward current of 30mA, allowing for efficient energy usage in continuous operation.

The unit's external dimensions (12.4mm width, 19mm height, 3.8mm depth) make it compact and suitable for tight installation spaces. It is RoHS compliant, meeting environmental regulations for hazardous substances.

This LED display features a 7-segment design suitable for single character representation. It uses a common cathode connection to simplify circuit design. The unit is designed for surface mounting on printed circuit boards.

Its operating temperature range spans from -40°C to 85°C for durability. The grey face and white segments ensure excellent visual contrast and character appearance. Power dissipation is low at 75mW, optimizing energy efficiency.

Forward voltage is nominally 2V with a forward current of 30mA. Dimensions include an external width of 12.4mm, height of 19mm, and depth of 3.8mm. The display complies with RoHS standards for environmental safety.

This 7-segment LED display from Kingbright is ideal for use in industrial control systems, electronic instrumentation, automation equipment, consumer electronics, and digital readout devices. Its rugged construction and efficient electrical characteristics ensure long-lasting reliable operation.
