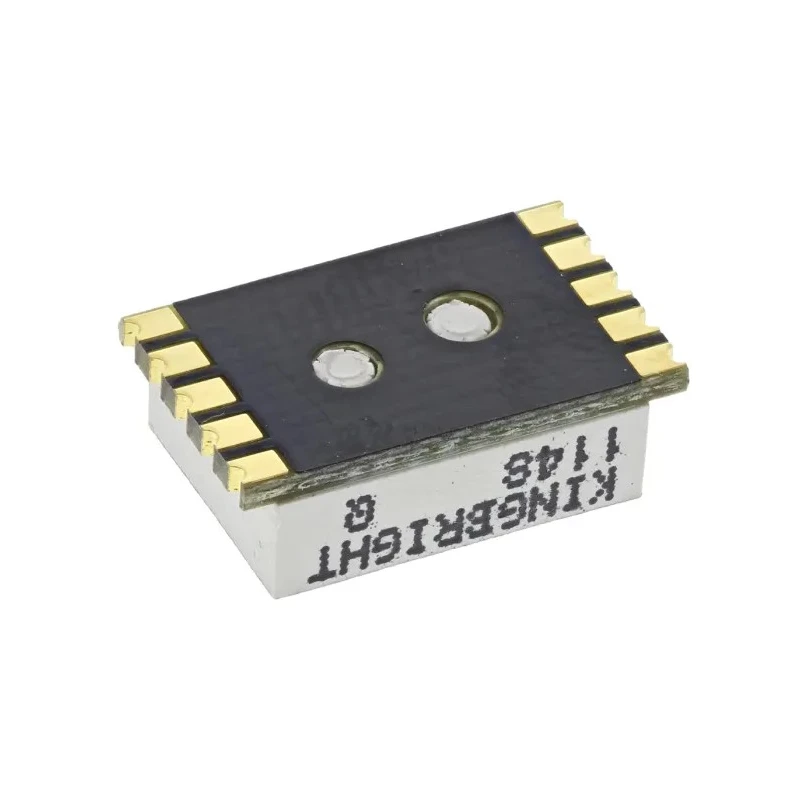

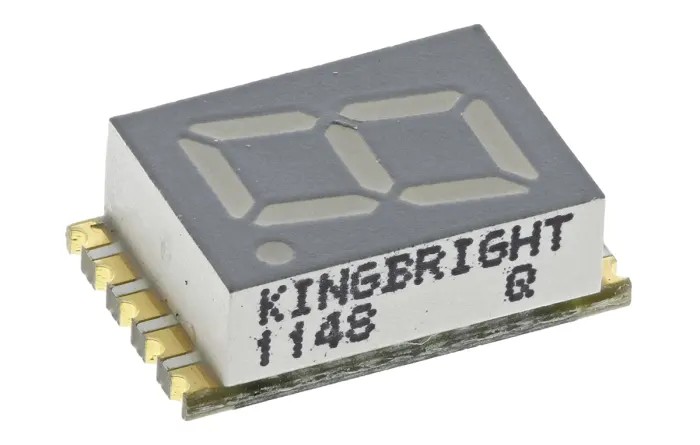

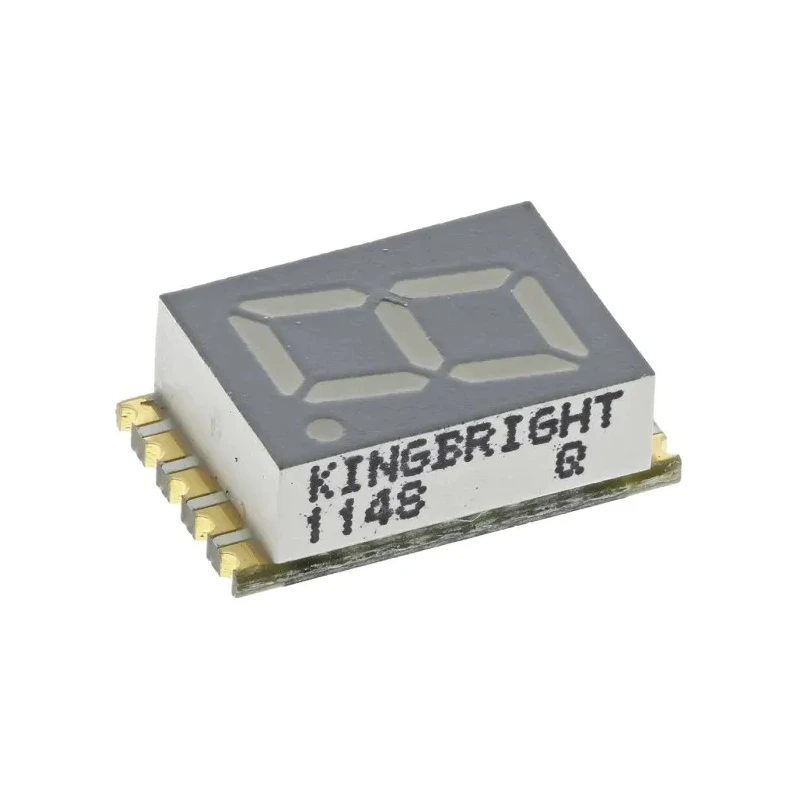

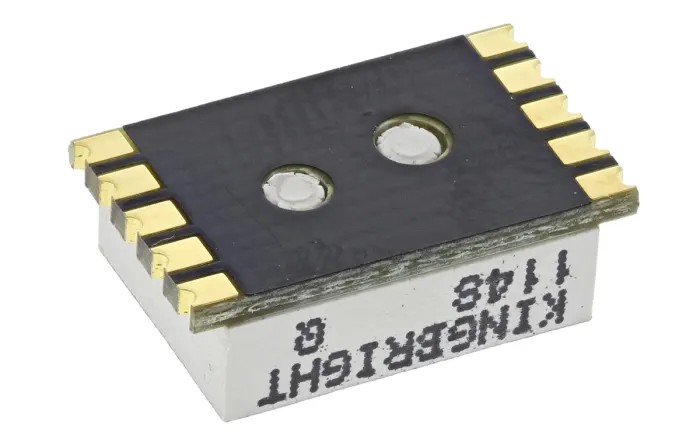

Kingbright 1 Digit 7 Segment LED Display Red 27mcd Right Side 7.6 mm KCSC03-105
Specifications
| Country of Origin | China |
|---|---|
| Display Type | 7 Segment |
| Brand | Kingbright |
| Model | KCSC03-105 |
| Mount Type | Surface |
| Character height | 7.6mm |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Number Of Segments | 7 |
| External Width | 7.3mm |
| External Depth | 3.8mm |
| External Height | 12mm |
| Power Dissipation | 75mW |
| Luminous Intensity | 27mcd |
| Standards/Approvals | RoHS |
| LED Colour | Red |
| Dominant Wavelength | 630nm |
| Colour of Face | Grey |
| Forward Voltage | 2V |
| Forward Current | 30mA |
| Number of Characters | 1 |
| Character Width | 4.2mm |
| Common Connection | Cathode |
| Decimal Orientation | Right Side |
Key Features
- The display has a character height of 7.6 mm and character width of 4.2 mm for clear readability.
- It features a common cathode connection with surface mount type for easy PCB integration.
- The LED color is red with a dominant wavelength of 630 nm ensuring bright and clear visual output.
- Operating temperature ranges from -40°C to 85°C allowing suitability for diverse environments.
- Power dissipation is 75mW with a forward voltage of 2V and forward current of 30mA for low power consumption.
- The display has a grey face color with white segments to enhance character visibility.
- It complies with RoHS standards ensuring environmentally friendly manufacturing.
- Compact external dimensions of 12 mm height, 7.3 mm width, and 3.8 mm depth support space-efficient designs.
Product Description
Kingbright KCSC03-105 is a high-quality single digit 7 segment LED display with red color emitting 27mcd luminous intensity. Designed for industrial, electronic component assemblies, and display modules, it offers excellent visibility and character clarity with a character height of 7.6 mm and width of 4.2 mm. This display uses a common cathode connection and surface mount packaging, simplifying its mounting on printed circuit boards or sockets.
It features a right side decimal orientation for flexible visual configurations and a grey face with distinct white segments ensuring strong on/off contrast. The LED operates efficiently at a forward voltage of 2V and forward current of 30mA, dissipating just 75mW of power, making it suitable for low power electronic designs.
The device operates reliably across a broad temperature range from -40°C to 85°C, suitable for use in varied environmental conditions including industrial automation, instrumentation, consumer electronics, and control panels.
The compact external dimensions of 12 mm height, 7.3 mm width, and 3.8 mm depth support integration into limited space applications. It also conforms to RoHS environmental standards ensuring compliance with global electronic waste regulations.
This Kingbright 7 segment LED display is ideal for electronic equipment manufacturers, PCB assemblers, and system integrators aiming for clear numeric display functionality. The display offers a clear and bright red LED output with excellent on/off contrast.
Surface mount design facilitates easy and reliable PCB installation. Robust operating temperature range ensures durability in industrial environments. Low power consumption contributes to energy-efficient designs. RoHS compliance supports environmentally responsible manufacturing.
Compact size enables use in space-constrained electronic modules. Common cathode configuration simplifies wiring and integration. Right side decimal orientation allows flexible display layouts. Explore more Kingbright LED Display modules and components at EnvMart for your electronic and industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The character height of this display is 7.6 mm, providing clear readability.
The maximum operating temperature for the KCSC03-105 is 85°C, making it suitable for various environments.
It features a common cathode connection, simplifying the wiring and integration into circuits.
The power dissipation is 75 mW, contributing to low power consumption in electronic designs.
The luminous intensity of this model is 27 mcd, ensuring bright and clear visual output.
The external dimensions are 12 mm in height, 7.3 mm in width, and 3.8 mm in depth, supporting compact designs.
The forward voltage is 2V and the forward current is 30 mA, which are suitable for efficient operation.
The LED color is red with a dominant wavelength of 630 nm, providing a bright visual output.
The character width of this model is 4.2 mm, enhancing character clarity.
This model supports surface mounting, making it easy to integrate into printed circuit boards.
Yes, it complies with RoHS standards, ensuring environmentally friendly manufacturing practices.
The decimal orientation of the KCSC03-105 is right side, allowing for flexible visual configurations.
