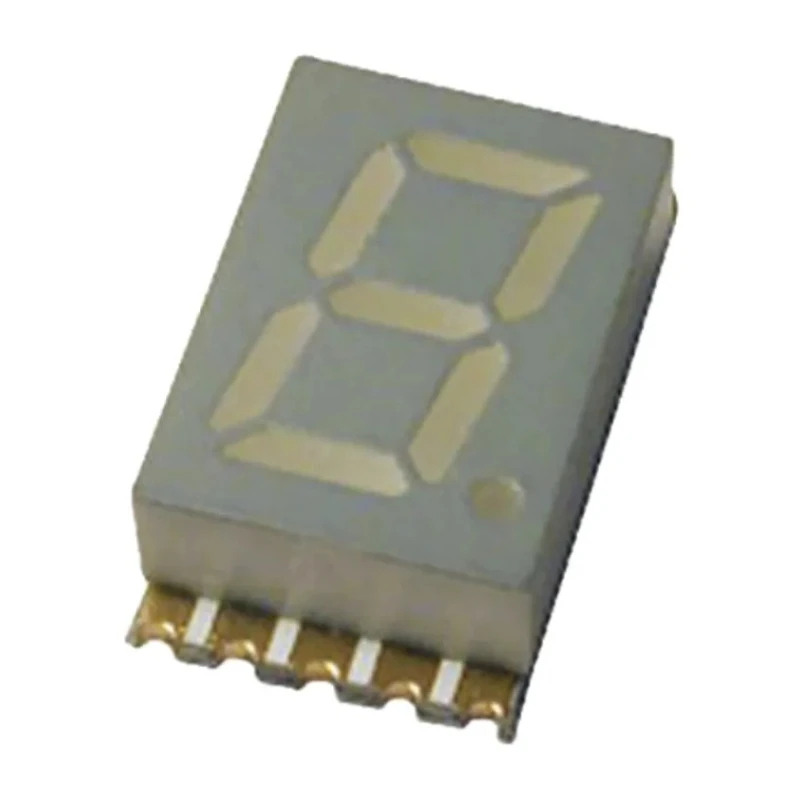

Kingbright 1 Digit 7 Segment LED Display Red Anode Surface Mount 7.6mm Character Height KCSA03-105
Specifications
| Country of Origin | China |
|---|---|
| Display Type | 7 Segment |
| Brand | Kingbright |
| Model | KCSA03-105 |
| Mount Type | Surface |
| Character height | 7.6mm |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Number Of Segments | 7 |
| External Width | 7.3mm |
| External Depth | 3.8mm |
| External Height | 12mm |
| Power Dissipation | 75mW |
| Luminous Intensity | 27mcd |
| Standards/Approvals | RoHS |
| LED Colour | Red |
| Dominant Wavelength | 630nm |
| Colour of Face | Grey |
| Forward Voltage | 2V |
| Forward Current | 30mA |
| Number of Characters | 1 |
| Character Width | 4.2mm |
| Common Connection | Anode |
| Decimal Orientation | Right Side |
Key Features
- This LED display features a single digit with seven segments for clear numeric indication.
- The red LED has a dominant wavelength of 630nm and luminous intensity of 27mcd for excellent visibility.
- Designed for surface mount applications with an external height of 12mm and width of 7.3mm.
- Operates at a forward voltage of 2V and forward current of 30mA with power dissipation of 75mW.
- Designed to operate in temperatures ranging from -40°C to 85°C, ensuring durability.
- The grey face with white segments offers high contrast for easy reading.
- Right side decimal orientation suits various display requirements.
- RoHS compliant and manufactured in China ensuring quality and environmental standards.
Product Description
Kingbright KCSA03-105 is a high-quality single digit 7 segment LED display designed for industrial and electronic applications. Featuring a red LED color with a dominant wavelength of 630nm and luminous intensity of 27mcd, it provides excellent visibility and clarity for numeric displays.
The display has a character height of 7.6mm and width of 4.2mm, mounted on a grey faceplate with white segments which enhances contrast and readability. It uses a common anode connection and is designed for surface mount installation with external dimensions of 12mm height, 7.3mm width, and 3.8mm depth.
With a forward voltage of 2V, forward current of 30mA and power dissipation of 75mW, it operates efficiently within an ambient temperature range from -40°C to 85°C, ensuring stable performance in harsh environments. The decimal point is oriented on the right side, accommodating common display configurations.
This LED display is RoHS compliant, reflecting adherence to environmental standards. It is manufactured in China with high mechanical ruggedness for reliable use in automation, electronic devices, instrumentation, industrial panels, and other commercial electronics requiring clear numeric display.
This LED display features a single digit with seven segments for clear numeric indication. The red LED has a dominant wavelength of 630nm and luminous intensity of 27mcd for excellent visibility. Designed for surface mount applications with an external height of 12mm and width of 7.3mm.
Operates at a forward voltage of 2V and forward current of 30mA with power dissipation of 75mW. Designed to operate in temperatures ranging from -40°C to 85°C, ensuring durability. The grey face with white segments offers high contrast for easy reading.
Right side decimal orientation suits various display requirements. RoHS compliant and manufactured in China ensuring quality and environmental standards. Explore more LED Display components and modules in the Electronics & Electricals category on EnvMart to find the right fit for your project needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The character height of this LED display is 7.6mm.
It operates at a forward voltage of 2V and a forward current of 30mA.
The maximum operating temperature is 85°C.
The luminous intensity of the red LED is 27mcd.
The external dimensions are 12mm in height, 7.3mm in width, and 3.8mm in depth.
It uses a common anode connection.
The dominant wavelength of the LED light is 630nm.
The faceplate is grey with white segments, enhancing contrast for readability.
Yes, this LED display is RoHS compliant, adhering to environmental standards.
This model is suitable for industrial and electronic applications requiring clear numeric display.
The decimal point is oriented on the right side, accommodating common display configurations.
The power dissipation rating is 75mW.
