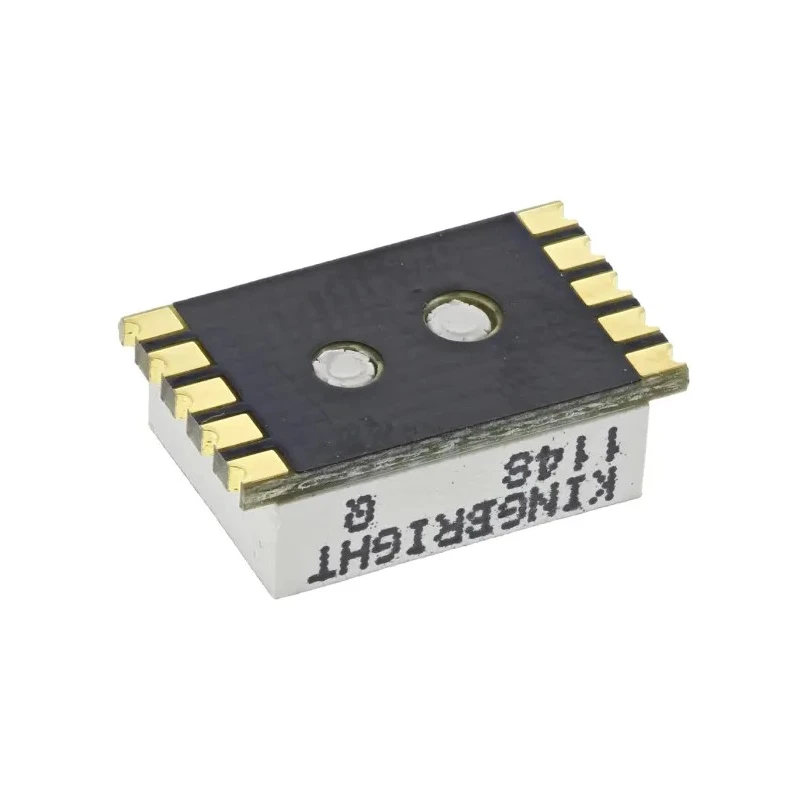

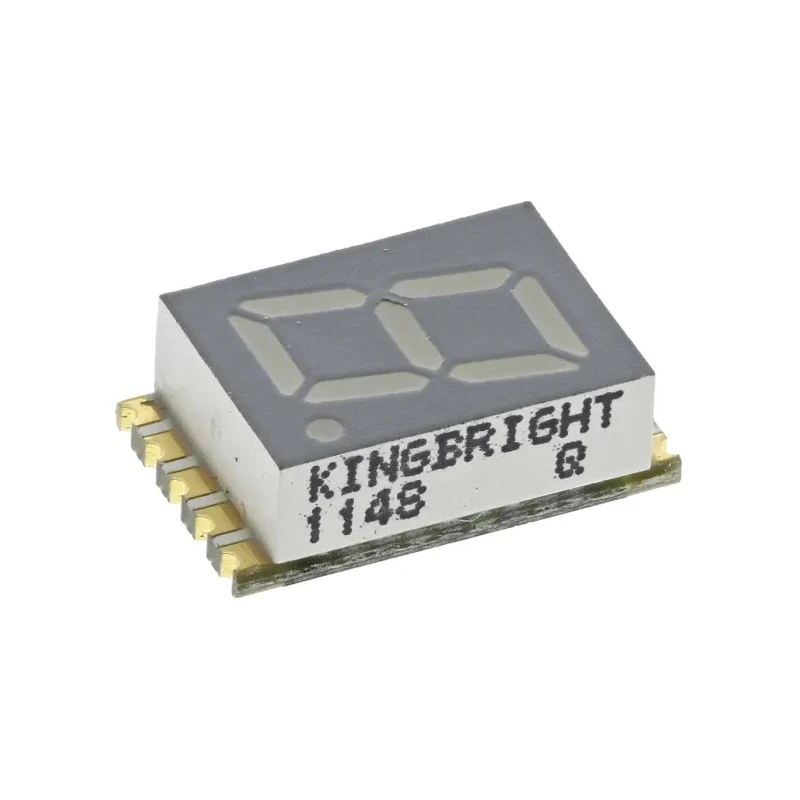

Kingbright 1 Digit 7 Segment LED Display Red 27mcd, Cathode Common, Surface Mount 7.6mm KCSC03-105
Specifications
| Country of Origin | China |
|---|---|
| Display Type | 7 Segment |
| Brand | Kingbright |
| Model | KCSC03-105 |
| Mount Type | Surface |
| Character height | 7.6mm |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Number Of Segments | 7 |
| External Width | 7.3mm |
| External Depth | 3.8mm |
| External Height | 12mm |
| Power Dissipation | 75mW |
| Luminous Intensity | 27mcd |
| Standards/Approvals | RoHS |
| LED Colour | Red |
| Dominant Wavelength | 630nm |
| Colour of Face | Grey |
| Forward Voltage | 2V |
| Forward Current | 30mA |
| Number of Characters | 1 |
| Character Width | 4.2mm |
| Common Connection | Cathode |
| Decimal Orientation | Right Side |
Key Features
- The display emits bright red light with a luminous intensity of 27mcd for excellent visibility.
- Constructed with a grey face and white segments for high contrast readability.
- Designed for surface mounting on printed circuit boards or sockets.
- Low power dissipation of 75mW and a forward voltage of 2V ensure efficient operation.
- Operating temperature range from -40°C to 85°C makes it suitable for various environments.
- Character width is 4.2mm with external dimensions of 7.3mm width, 12mm height, and 3.8mm depth.
- Forward current rating is 30mA to maintain display brightness without overheating.
- Decimal point orientation is on the right side for enhanced numeric display formatting.
Product Description
Kingbright KCSC03-105 is a high-quality 1 digit 7 segment LED display designed for electronic applications requiring clear numeric display. This LED display uses red segments with a common cathode design, ensuring reliable electrical characteristics and ease of integration.
The character height of 7.6mm and character width of 4.2mm provide excellent readability for numeric characters in industrial, commercial, and consumer electronic devices. The surface mounting design allows straightforward installation on PCBs or into sockets, facilitating automated assembly processes.
The device features a grey face with contrasting white segments, enhancing visibility and on/off contrast for sharp character appearance. With a luminous intensity of 27 millicandela, the display is bright enough for indoor and some ambient light conditions.
This LED display supports a forward voltage of 2 volts and consumes low power with dissipation limited to 75 milliwatts, making it energy efficient. It is rated for a forward current of 30 milliamps, balancing brightness and longevity.
Its industrial operating temperature range of -40°C to 85°C ensures performance in harsh conditions. The external dimensions measure 7.3 mm in width, 12 mm in height, and 3.8 mm in depth, making it compact for various electronic enclosures.
The display comprises 7 segments to form numerals 0-9. It has a right side decimal orientation to accommodate decimal point integration. Its RoHS compliance guarantees environmentally friendly materials. Applications include electronic instrumentation, displays in measurement devices, consumer electronics, and industrial control panels.
Single digit format allows for modular use in multi-digit display assemblies.
This Kingbright LED display is an excellent choice for designers and manufacturers requiring a reliable, bright, and easy-to-implement numeric display solution. Browse the LED Displays category on EnvMart for compatible components and display modules.
