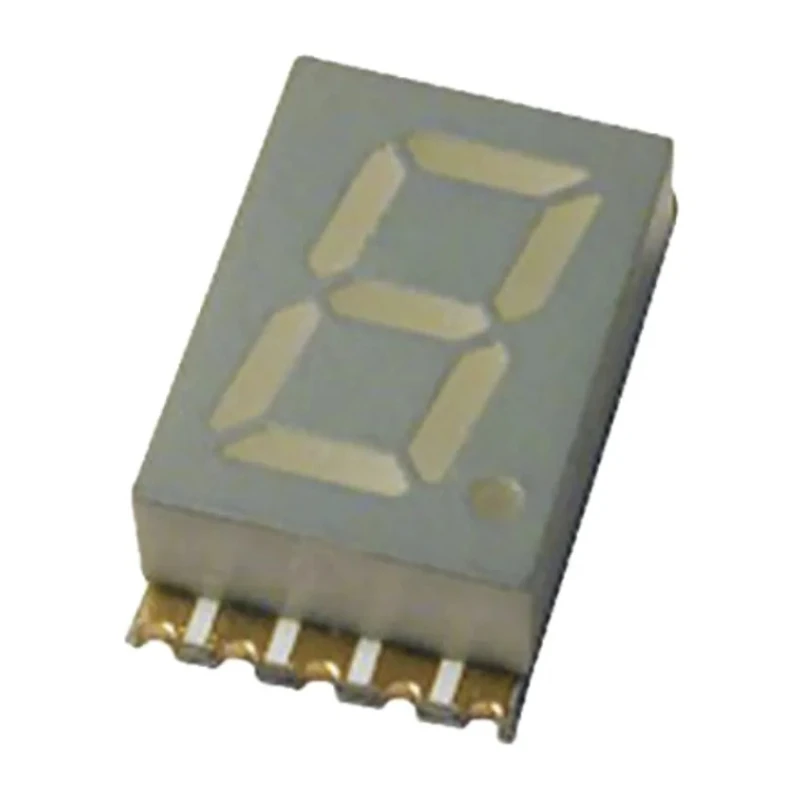

Kingbright 1 Digit 7 Segment LED Display Anode Red 27mcd Right Side 7.6 mm KCSA03-105
Specifications
| Country of Origin | China |
|---|---|
| Display Type | 7 Segment |
| Brand | Kingbright |
| Model | KCSA03-105 |
| Mount Type | Surface |
| Character height | 7.6mm |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Number Of Segments | 7 |
| External Width | 7.3mm |
| External Depth | 3.8mm |
| External Height | 12mm |
| Power Dissipation | 75mW |
| Luminous Intensity | 27mcd |
| Standards/Approvals | RoHS |
| LED Colour | Red |
| Dominant Wavelength | 630nm |
| Colour of Face | Grey |
| Forward Voltage | 2V |
| Forward Current | 30mA |
| Number of Characters | 1 |
| Character Width | 4.2mm |
| Common Connection | Anode |
| Decimal Orientation | Right Side |
Key Features
- Single character 7 segment LED display with red LEDs.
- Luminous intensity of 27 millicandela for high visibility.
- Character height of 7.6 mm and width of 4.2 mm for compact display.
- Surface mount type with grey face and white segments for readability.
- Low power dissipation of 75 milliwatts ensures energy efficiency.
- Forward voltage of 2 volts and forward current of 30 milliamps.
- Operating temperature range of -40°C to 85°C for robustness.
- Decimal point oriented to the right side for versatile numeric display.
Product Description
Kingbright KCSA03-105 is a high-quality single digit 7 segment LED display designed primarily for electronic display applications requiring clear numeric output. It features an anode common connection with red LEDs providing a luminous intensity of 27 mcd, delivering excellent character contrast and visibility in various lighting conditions.
The LED display has a character height of 7.6 mm and width of 4.2 mm, making it suitable for use in compact electronic devices, instrumentation panels, and measurement displays where space is limited but readability is critical.
This display is surface mountable on PC boards, facilitating easy and reliable mechanical and electrical integration into diverse control and instrumentation circuits. The grey face and white segment coloring aid in enhancing numeric clarity on the display face.
Designed for efficient operation, the KCSA03-105 has a low power dissipation of just 75 milliwatts and operates at a forward voltage of 2 volts with a forward current of 30 milliamps, ensuring energy efficiency in battery-powered or low power systems.
It is rated for a minimum operating temperature of -40°C and a maximum operating temperature of 85°C, making it suitable for industrial, laboratory, and outdoor equipment exposed to wide temperature ranges. The decimal orientation is on the right side, supporting display formats that require decimal precision.
Single character, 7 segment LED display. Red LED color with 27 mcd luminous intensity. Character dimensions: 7.6 mm height, 4.2 mm width. Grey face with white segments for enhanced readability. Surface mount type for easy PCB integration.
Low power consumption with 75 mW dissipation. Operating voltage 2 V, forward current 30 mA. Operating temperature range: -40°C to 85°C. Decimal point located on the right side. RoHS compliant and mechanically robust construction.
This LED display from Kingbright is ideal for use in electronic instruments, measuring devices, industrial automation, and other applications requiring clear numeric display capabilities. It complies with RoHS standards ensuring environmental safety and sustainability.
Explore more LED displays and electronic components in the LED Displays category on EnvMart to find compatible and complementary products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The luminous intensity of the Kingbright KCSA03-105 is 27 millicandela, providing high visibility for clear numeric output.
The character height is 7.6 mm and the character width is 4.2 mm, making it suitable for compact applications.
This model operates within a temperature range of -40°C to 85°C, making it suitable for various environments.
The forward voltage is 2 volts and the forward current is 30 milliamps, ensuring efficient operation.
The KCSA03-105 is a surface mount type, allowing for easy integration onto PC boards.
The power dissipation for this model is 75 milliwatts, contributing to its energy efficiency.
The LED color in this model is red, with a dominant wavelength of 630 nm.
The decimal point is oriented to the right side, allowing for versatile numeric display formats.
The KCSA03-105 is RoHS compliant, ensuring it meets environmental safety and sustainability standards.
The external dimensions are 7.3 mm in width, 3.8 mm in depth, and 12 mm in height.
This model features 7 segments, allowing for the display of a single character.
It is suitable for use in electronic instruments, measuring devices, and industrial automation applications requiring clear numeric displays.
