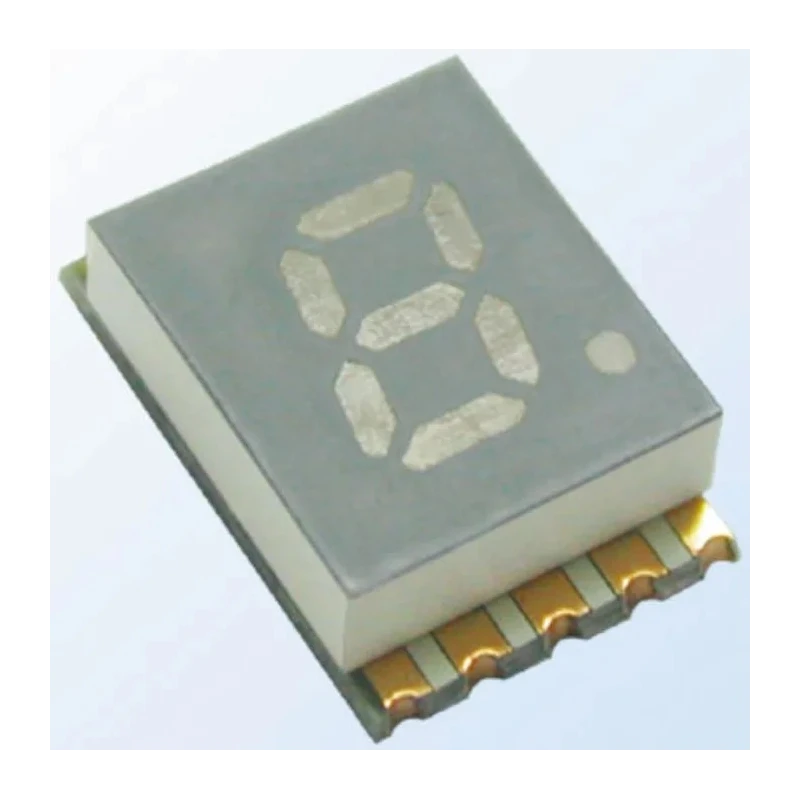

Kingbright 1 Digit 7 Segment Orange LED Display Cathode, 37mcd Luminous Intensity, 5.1mm Height, Surface Mount KCSC02-106
Specifications
| Country of Origin | China |
|---|---|
| Display Type | 7 Segment |
| Brand | Kingbright |
| Model | KCSC02-106 |
| Mount Type | Surface |
| Character height | 5.1mm |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Number Of Segments | 7 |
| External Width | 6.9mm |
| External Depth | 3mm |
| External Height | 10mm |
| Power Dissipation | 75mW |
| Luminous Intensity | 37mcd |
| Standards/Approvals | RoHS |
| LED Colour | Orange |
| Dominant Wavelength | 601nm |
| Colour of Face | Grey |
| Forward Voltage | 2.1V |
| Forward Current | 30mA |
| Number of Characters | 1 |
| Character Width | 3.2mm |
| Common Connection | Cathode |
| Decimal Orientation | Right Side |
Key Features
- The LED display exhibits excellent visibility with a luminous intensity of 37mcd.
- It has a character width of 3.2mm and external dimensions of 6.9mm width, 10mm height, and 3mm depth.
- This device operates at a forward voltage of 2.1V and forward current of 30mA with a power dissipation of 75mW.
- Designed for surface mounting and grey face with white segments for clear readability.
- Operates reliably in a temperature range from -40°C to 85°C.
- RoHS compliant and mechanically rugged, suitable for electronic applications requiring display modules.
- Ideal for use in industrial, electronic, and automation equipment interfaces requiring numeric display.
Product Description
Kingbright KCSC02-106 is a single digit, 7 segment LED display with orange illumination and a cathode common connection. The display features a character height of 5.1mm and a right side decimal orientation, providing clear numeric indication in a compact form factor.
This surface mount LED display offers high luminous intensity of 37mcd, ensuring excellent visibility and high on/off contrast. Its grey face with white segments creates a visually distinct character presentation suitable for various display needs.
The display is designed for robust operation within a wide temperature range of -40°C to 85°C, making it suitable for industrial and commercial electronic applications. Operating parameters include a forward voltage of 2.1V, forward current of 30mA, and power dissipation of 75mW.
Its compact external dimensions (6.9mm width x 10mm height x 3mm depth) enable easy integration into printed circuit boards and sockets. The KCSC02-106 display is RoHS compliant and mechanically rugged, enhancing reliability in demanding environments.
This LED display module finds applications in industrial control panels, measurement instruments, electronic counters, and automation equipment requiring numeric readout. Excellent character visibility with 37mcd brightness.
Compact surface mount design for easy PCB integration. Wide operating temperature tolerance from -40°C to 85°C. Low power consumption and high efficiency performance. Grey face and white segment color provide clear digit display.
RoHS compliant ensuring environmental safety standards. Durable and reliable for industrial and commercial use. Explore more LED Display solutions and components to suit your industrial and electronic manufacturing needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The luminous intensity of this LED display is 37mcd, providing excellent visibility.
This model operates at a forward voltage of 2.1V and a forward current of 30mA.
The external dimensions are 6.9mm in width, 10mm in height, and 3mm in depth.
It operates reliably within a temperature range from -40°C to 85°C.
This LED display is designed for surface mounting.
The character height of this display is 5.1mm.
The face of this display is grey, with white segments for clear readability.
Yes, this display is RoHS compliant, ensuring it meets environmental safety standards.
This model is suitable for use in industrial control panels, measurement instruments, electronic counters, and automation equipment requiring numeric readout.
The display features 7 segments.
The power dissipation for this model is 75mW.
The dominant wavelength of the orange LED is 601nm.
