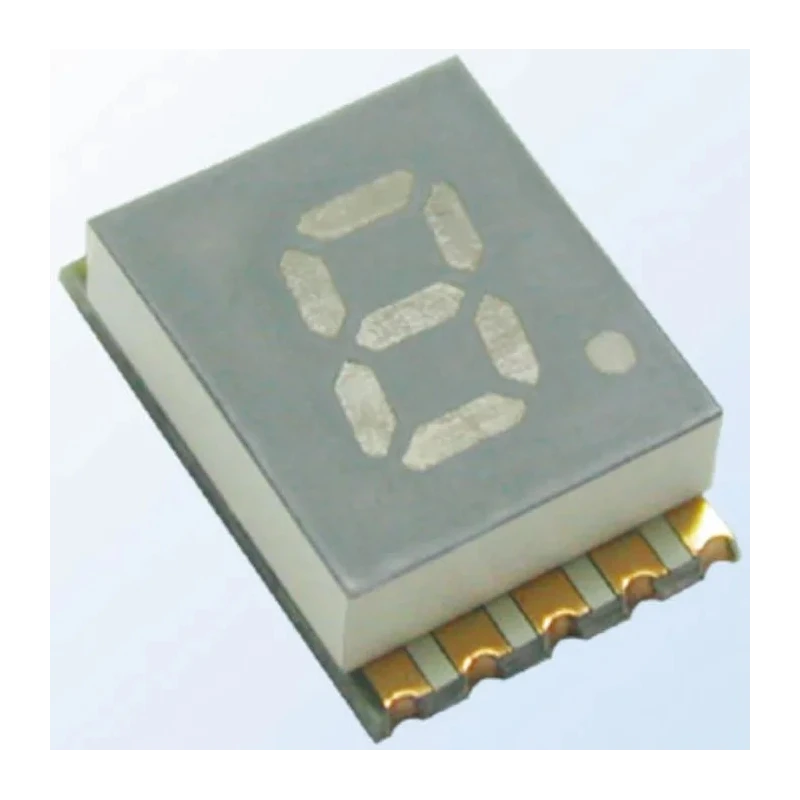

Kingbright 1 Digit 7 Segment Orange LED Display Anode Surface Mount 5.1 mm KCSA02-106
Specifications
| Country of Origin | China |
|---|---|
| Display Type | 7 Segment |
| Brand | Kingbright |
| Model | KCSA02-106 |
| Mount Type | Surface |
| Character height | 5.1mm |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Number Of Segments | 7 |
| External Width | 6.9mm |
| External Depth | 3mm |
| External Height | 10mm |
| Power Dissipation | 75mW |
| Luminous Intensity | 37mcd |
| Standards/Approvals | RoHS |
| LED Colour | Orange |
| Dominant Wavelength | 601nm |
| Colour of Face | Grey |
| Forward Voltage | 2.1V |
| Forward Current | 30mA |
| Number of Characters | 1 |
| Character Width | 3.2mm |
| Common Connection | Anode |
| Decimal Orientation | Right Side |
Key Features
- Single digit 7 segment LED display with orange color segments.
- Anode common connection for straightforward circuit integration.
- Surface mount technology for easy PCB assembly.
- Luminous intensity rated at 37 mcd for good visibility.
- Operating temperature range from -40°C to 85°C suitable for diverse environments.
- Forward voltage of 2.1 V and forward current rated at 30 mA.
- Mechanically rugged with grey face and white segments for clear display.
- Right side decimal orientation for accurate numerical presentations.
Product Description
Kingbright KCSA02-106 1 Digit 7 Segment Orange LED Display provides excellent visibility with a clear orange color and a character height of 5.1 mm. It employs a common anode configuration and is designed for surface mounting on printed circuit boards, making it ideal for electronic display applications requiring distinct numeric readouts.
The LED display features 7 segments delivering precise character formation with a width of 3.2 mm per character. It achieves a luminous intensity of 37 mcd, categorized for high contrast and brightness. The compact external dimensions of 6.9 mm width, 10 mm height, and 3 mm depth enable integration into tight spaces.
Designed to operate reliably within a temperature range of -40°C to 85°C, the display is suited for industrial, electronic component manufacturing, instrumentation, and control gear applications. Its power consumption is controlled with a forward voltage of 2.1 V and a forward current of 30 mA, ensuring energy efficiency.
The display's grey face with white segments enhances readability. The right side decimal orientation accommodates numerical display requirements. The product is RoHS compliant, confirming it meets safety and environmental standards.
These displays are widely used in electronic devices, digital readouts, instrumentation systems, and control panels within industrial automation and manufacturing sectors. The durable construction supports rugged environments, maximizing lifespan and reliability.
Single digit 7 segment LED display with orange color segments. Anode common connection for straightforward circuit integration. Character dimensions: width 3.2 mm and height 5.1 mm. Surface mount technology for easy PCB assembly.
Luminous intensity rated at 37 mcd for good visibility. Operating temperature range from -40°C to 85°C suitable for diverse environments. Forward voltage of 2.1 V and forward current rated at 30 mA. Mechanically rugged with grey face and white segments for clear display.
Right side decimal orientation for accurate numerical presentations. Compliant with RoHS standards ensuring environmental safety. Explore more electronic components and LED Display modules at EnvMart for comprehensive industrial and manufacturing solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The luminous intensity of this model is rated at 37 mcd, providing good visibility for clear numeric readouts.
It operates reliably within a temperature range of -40°C to 85°C, making it suitable for diverse environments.
The forward voltage is 2.1 V and the forward current is rated at 30 mA, ensuring energy efficiency during operation.
The external dimensions are 6.9 mm in width, 10 mm in height, and 3 mm in depth, allowing for integration into tight spaces.
This unit employs surface mount technology, making it easy to assemble on printed circuit boards.
It features 7 segments, which allow for precise character formation in numeric displays.
The character height is 5.1 mm, which contributes to its visibility and readability.
The LED segments are orange, while the face of the display is grey, enhancing contrast and clarity.
The decimal orientation is on the right side, which is suitable for accurate numerical presentations.
Yes, it is RoHS compliant, ensuring it meets safety and environmental standards.
This model is widely used in electronic devices, digital readouts, instrumentation systems, and control panels within industrial automation and manufacturing sectors.
The power dissipation for the KCSA02-106 is rated at 75 mW, which helps in managing energy consumption effectively.
