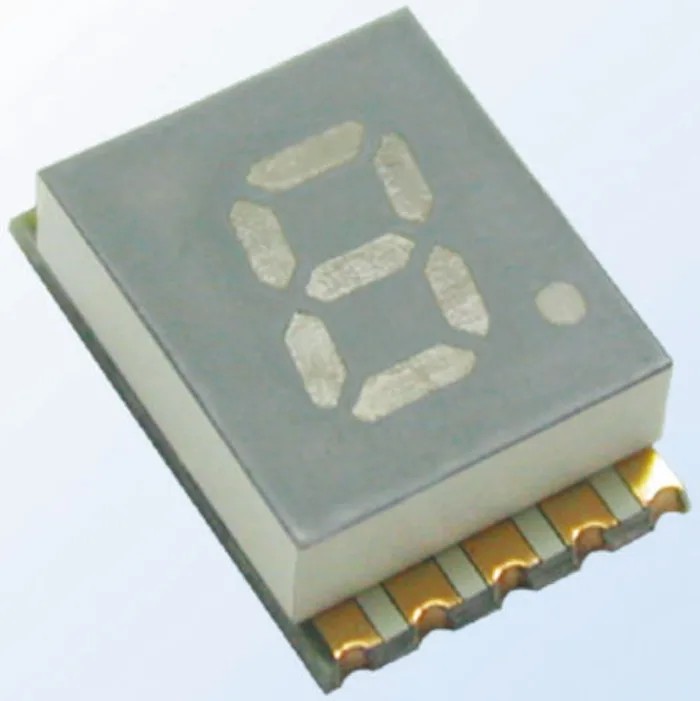

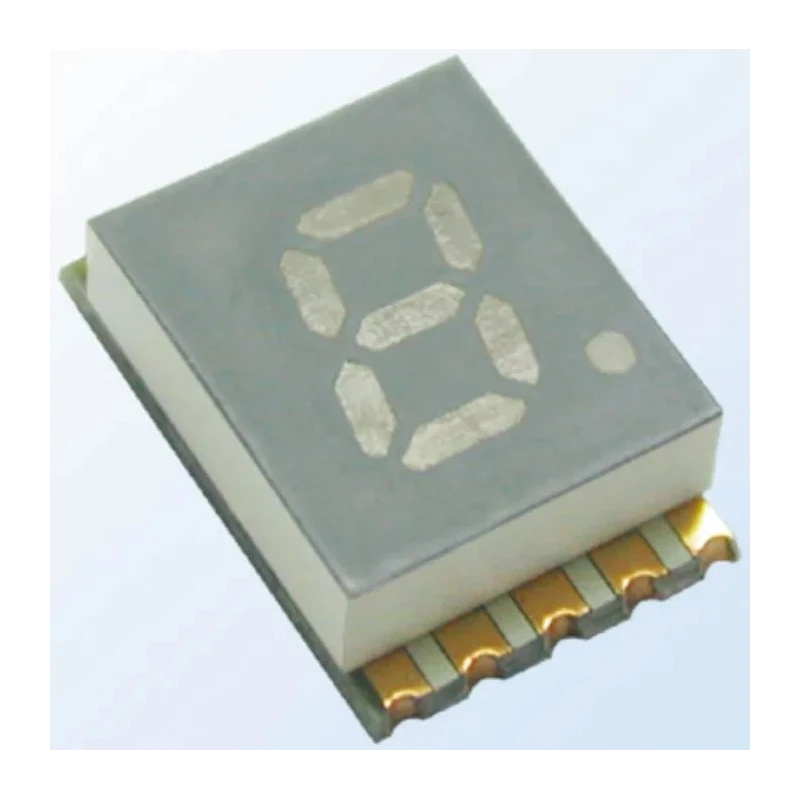

Kingbright 1 Digit 7 Segment LED Display Orange Anode, 37mcd Luminous Intensity, Right Side Decimal Orientation, KCSA02-106
Specifications
| Country of Origin | China |
|---|---|
| Display Type | 7 Segment |
| Brand | Kingbright |
| Model | KCSA02-106 |
| Mount Type | Surface |
| Character height | 5.1mm |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Number Of Segments | 7 |
| External Width | 6.9mm |
| External Depth | 3mm |
| External Height | 10mm |
| Power Dissipation | 75mW |
| Luminous Intensity | 37mcd |
| Standards/Approvals | RoHS |
| LED Colour | Orange |
| Dominant Wavelength | 601nm |
| Colour of Face | Grey |
| Forward Voltage | 2.1V |
| Forward Current | 30mA |
| Number of Characters | 1 |
| Character Width | 3.2mm |
| Common Connection | Anode |
| Decimal Orientation | Right Side |
Key Features
- The single digit display has a character height of 5.1 mm for excellent visibility.
- Features an anode common connection with seven segments for numerals.
- Surface mount type with a grey face and white segments ensures easy PCB mounting.
- Operating temperature ranges from -40°C to 85°C for durable performance.
- Forward voltage is 2.1 V and forward current is 30 mA for low power consumption.
- Dominant wavelength is 601 nm providing vivid orange color output.
- Power dissipation rated at 75 mW maintains energy efficiency and reliability.
Product Description
Kingbright KCSA02-106 is a robust 1-digit 7 segment LED display designed for clear numeric visualization in electronic equipment. With a luminous intensity of 37mcd and a dominant wavelength of 601 nm, this orange LED offers bright and vivid display output suitable for instrumentation and control panels.
The device operates on a forward voltage of 2.1 V and supports a forward current of up to 30 mA, making it efficient for low power applications. Its grey face with white segments enhances visual contrast and readability.
The display dimensions provide a character height of 5.1 mm and a width of 3.2 mm, with external dimensions measuring 6.9 mm width, 10 mm height, and 3 mm depth. The surface mount design enables seamless PCB integration, perfect for compact electronic assemblies.
Kingbright's KCSA02-106 can operate within temperature ranges from -40°C to 85°C, ensuring reliability under various environmental conditions. Its right side decimal orientation allows precise positioning of decimal points in numeric displays.
This product is RoHS compliant, reflecting adherence to environmental safety standards. Applications include industrial instrumentation, measurement devices, HVAC controls, and other electronic display modules requiring high clarity numeric data output.
The single digit display has a character height of 5.1 mm for excellent visibility. Features an anode common connection with seven segments for numerals. Surface mount type with a grey face and white segments ensures easy PCB mounting.
Operating temperature ranges from -40°C to 85°C for durable performance. Forward voltage is 2.1 V and forward current is 30 mA for low power consumption. Dominant wavelength is 601 nm providing vivid orange color output.
Power dissipation rated at 75 mW maintains energy efficiency and reliability. Discover more LED Displays and components from Kingbright on EnvMart to meet all your industrial and commercial display requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The luminous intensity of the KCSA02-106 display is 37 mcd, providing bright visibility for numeric output.
This model can operate within a temperature range of -40°C to 85°C, ensuring reliable performance under various environmental conditions.
The forward voltage for this display is 2.1 V, and it supports a forward current of up to 30 mA, making it suitable for low power applications.
The KCSA02-106 features an anode common connection with seven segments for numeral display.
The external dimensions of this model are 6.9 mm in width, 10 mm in height, and 3 mm in depth.
The character height of the KCSA02-106 display is 5.1 mm, which enhances visibility for numeric data.
The LED color of this display is orange, with a dominant wavelength of 601 nm for vivid output.
Yes, the KCSA02-106 is RoHS compliant, indicating adherence to environmental safety standards.
The power dissipation for the KCSA02-106 is rated at 75 mW, contributing to its energy efficiency.
This model supports surface mount type installation, facilitating easy PCB integration.
The character width of the segments in the KCSA02-106 display is 3.2 mm.
This display is suitable for applications in industrial instrumentation, measurement devices, and HVAC controls, where clear numeric data output is required.
