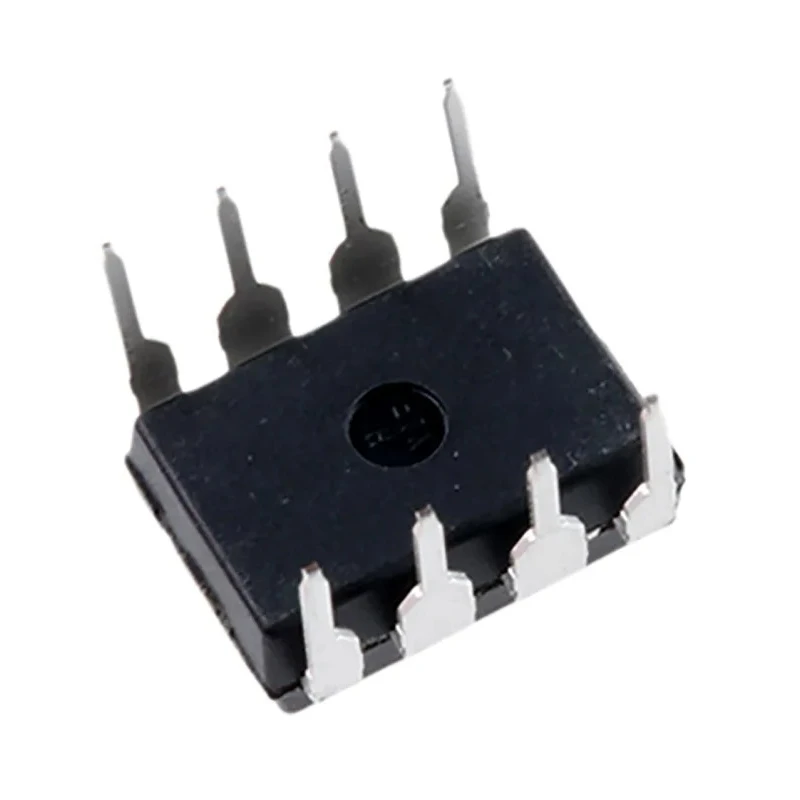

Broadcom DC Input Optocoupler Through Hole 8-Pin PDIP Maximum Forward Voltage 1.7V 20mA Input Current 6N138-000E
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Model | 6N138-000E |
| Packaging | Tape & Reel |
| Mount Type | Through Hole |
| Series | 6N138 |
| Maximum Operating Temperature | 100°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -55°C |
| Maximum input current | 20mA |
| Number Of Channels | 1 |
| Maximum Forward Voltage | 1.7V |
| Number of Pins | 8 |
| Input Current Type | DC |
| Maximum Current Transfer Ratio | 2600% |
| Minimum Current Transfer Ratio | 300% |
| onsemi 4N33M DC Input Optocoupler, Through Hole, 6-Pin PDIPBrand | onsemi |
| Opto-isolator,6N138 2500Vac/20mA SO8Brand | Avago Technologies |
| 6N138 OPTOISOLATORBrand | NEUTRAL |
Key Features
- This optocoupler features a maximum forward voltage of 1.7V for efficient input performance.
- It supports a maximum input current of 20mA with DC input current type.
- Designed with a Darlington transistor output for high gain and noise immunity.
- Operates reliably across a wide temperature range from -55°C to 100°C.
- Complies with industry standards UL 1577, CSA Component Acceptance Notice 5, and IEC/EN/DIN EN 60747-5-5 for safety and performance.
- Packaged in tape and reel for ease of automated insertion and manufacturing efficiency.
- Provides isolation voltage up to 3.75kVrms ensuring excellent input-output transient immunity.
- Minimum current transfer ratio of 300% and maximum of 2600% enabling sensitive signal detection.
Product Description
Broadcom 6N138-000E DC Input Optocoupler is a high-performance optocoupler designed for industrial and electronic applications requiring isolation between input and output signals. The device uses light-emitting diodes optically coupled with integrated high-gain Darlington transistor photodetectors to provide excellent current transfer and noise immunity.
Featuring a through-hole mount type and an 8-pin PDIP package, it is suitable for easy insertion into standard PCBs and automated manufacturing processes. The maximum forward voltage is 1.7V with a maximum DC input current of 20mA, allowing low input currents to switch relatively high load currents efficiently.
This optocoupler supports a wide operating temperature range from -55°C to 100°C, ensuring reliable performance in harsh industrial environments. It provides an isolation voltage of up to 3.75kVrms, making it ideal for protecting low voltage control circuits from high voltage spikes and transients.
The device complies with internationally recognized standards including UL 1577, CSA Component Acceptance Notice 5, and IEC/EN/DIN EN 60747-5-5, meeting strict safety and quality requirements.
Maximum forward voltage: 1.7V. Maximum DC input current: 20mA. Isolation voltage: 3.75kVrms. Operating temperature range: -55°C to 100°C. Darlington output for high current transfer ratio. Packaged in tape and reel format for automated assembly.
Applications include ground isolation, line receivers, RS-232C line receivers, telephone ring detectors, and line voltage status indicators.
Ideal for use in industrial automation, telecommunications, electronic control systems, and instrumentation, the Broadcom 6N138-000E offers reliable, safe optoelectronic isolation to improve system performance and protect sensitive components.
Explore more Optocoupler products and components in the Electronics & Electricals category on EnvMart to find solutions suited to diverse industrial and commercial requirements.
