Broadcom DC Input 2-Channel Smart Gate Drive Optocoupler, Surface Mount, 16-Pin SOIC HCPL-316J-000E

Broadcom HCPL-316J-000E DC Input 2-Channel Smart Gate Drive Optocoupler is a high-performance device optimized for driving IGBT and Power MOSFET transistors in industrial motor control and power conversion applications. This surface-mounted 16-pin SOIC package features advanced integrated protections such as Active Miller Clamp, undervoltage lockout (UVLO), fault detection, UVLO status feedback, and desaturation detection. Additionally, it includes an integrated DC-DC controller that supplies floating power, improving the robustness of isolated gate driver circuits.

This Optocoupler uses DC input current type, supporting a maximum input current of 400mA and featuring a typical rise and fall time of 0.1µs. It ensures high isolation voltage up to 3750V AC, providing safety and signal integrity in demanding electrical environments. Operating reliably across a wide temperature range of -40°C to 100°C, this device meets stringent standards including IEC/EN/DIN EN 60747-5-5, CSA, and UL1577, ensuring suitability for industrial and commercial electronic applications.

Manufactured in Thailand, the HCPL-316J-000E comes in a tape and reel packaging format, facilitating automated assembly. Its robust features and compliance make it ideal for use in equipment where isolation, signal integrity, and fault protection are critical, such as in motor drives, inverter circuits, and power supplies.

Optimized for driving IGBT and Power MOSFET transistors with integrated protections. Includes Active Miller Clamp, undervoltage lockout, and desaturation detection. Integrated DC-DC controller for floating power supply. High isolation voltage of 3750V AC for electrical safety.

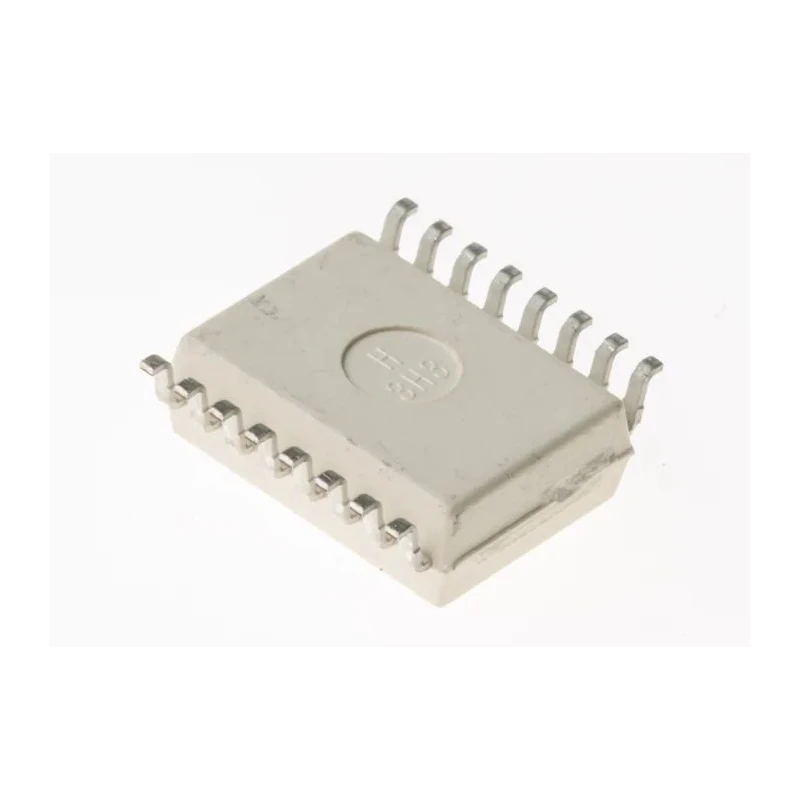

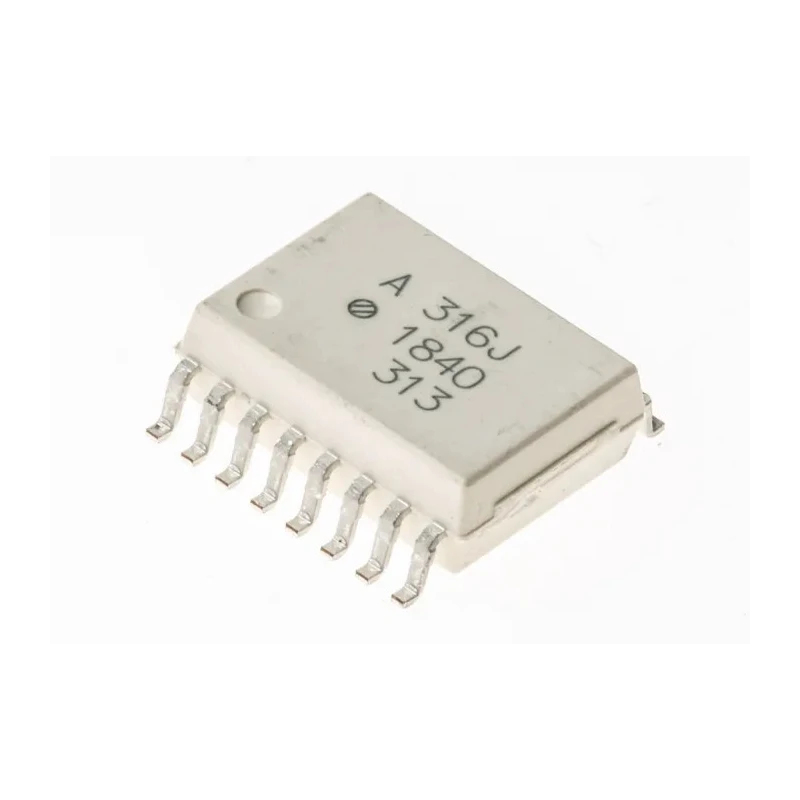

Surface mount 16-pin SOIC package ensures compact design. Compliance with IEC/EN/DIN EN 60747-5-5, CSA, and UL1577. Wide operating temperature range from -40°C to 100°C. Suitable for industrial motor control and power conversion applications.
