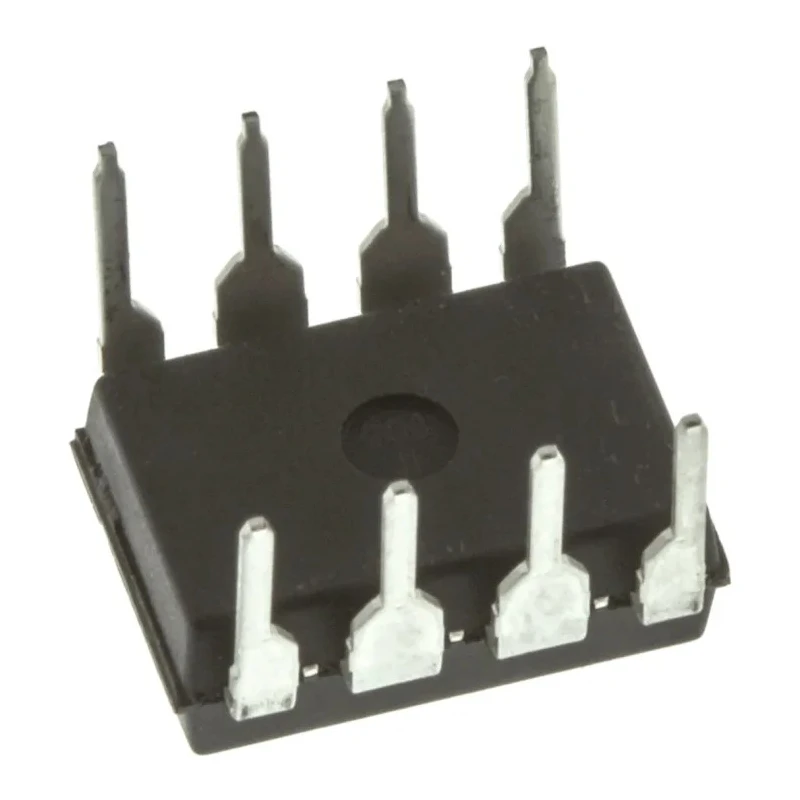

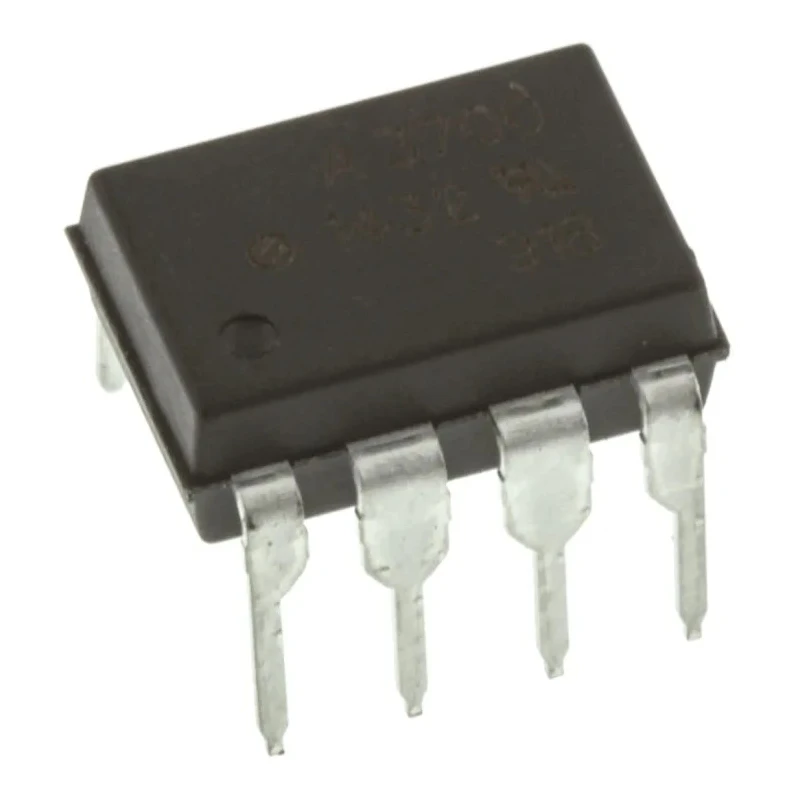

Broadcom AC/DC Input Optocoupler Through Hole 8-Pin PDIP HCPL-3700-000E

Broadcom HCPL-3700-000E is an AC/DC input optocoupler designed with a through hole mount type and housed in an 8-pin PDIP package. It effectively provides electrical isolation between high voltage AC/DC inputs and low voltage logic output circuits, making it suitable for industrial, commercial, and electronic equipment applications.

This device supports a maximum forward voltage of 0.59 V and input current up to 50 mA, achieving reliable signal transmission. With a single channel and logical output, it is engineered for seamless integration into control and interface circuits.

The HCPL-3700-000E features typical rise and fall times of 20μs and 0.3μs respectively, ensuring quick response times essential for accurate signal processing. It withstands an isolation voltage of 3.75 kVrms that guarantees excellent electrical isolation, suitable for environments requiring stringent safety measures.

Designed to operate within a temperature range of -40°C to 85°C, this optocoupler performs consistently in harsh conditions common in manufacturing, industrial automation, HVAC systems, and power electronics.

The product complies with VDE, UL, and CSA standards, ensuring quality, safety, and reliability. Its through-hole mounting and 8-pin PDIP packaging facilitate easy manual or automated assembly on printed circuit boards.

Designed for AC/DC input current with single channel operation. Maximum input current of 50 mA compatible with varied application needs. Electrical isolation up to 3.75 kVrms for safety in high voltage environments. Operating temperature from -40°C to 85°C for durability in industrial settings.

Logical output enables straightforward interfacing with digital systems. Complies with international safety standards VDE, UL, and CSA for certified quality. Typical switching times ensure responsive signal transmission.

Housed in an 8-pin PDIP through hole package for PCB compatibility. Part of the HCPL series for AC/DC to logic interfaces.

This optocoupler is ideal for power supplies, industrial controls, communication equipment, and other electronic applications requiring safe isolation between different voltage domains.

Explore more high-quality Optocouplers from Broadcom and related electronics components in EnvMart's extensive catalog for industrial and electronic manufacturing solutions.
