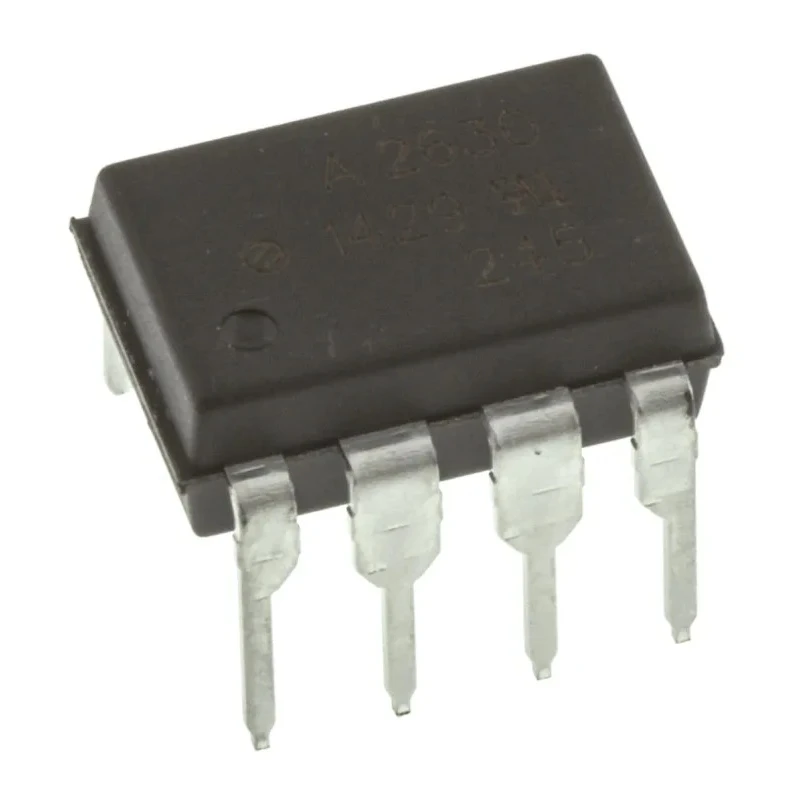

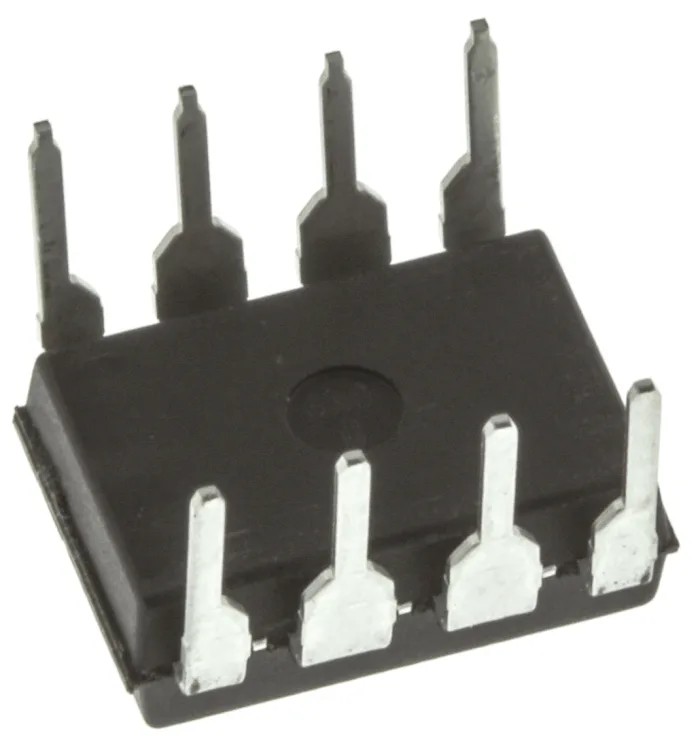

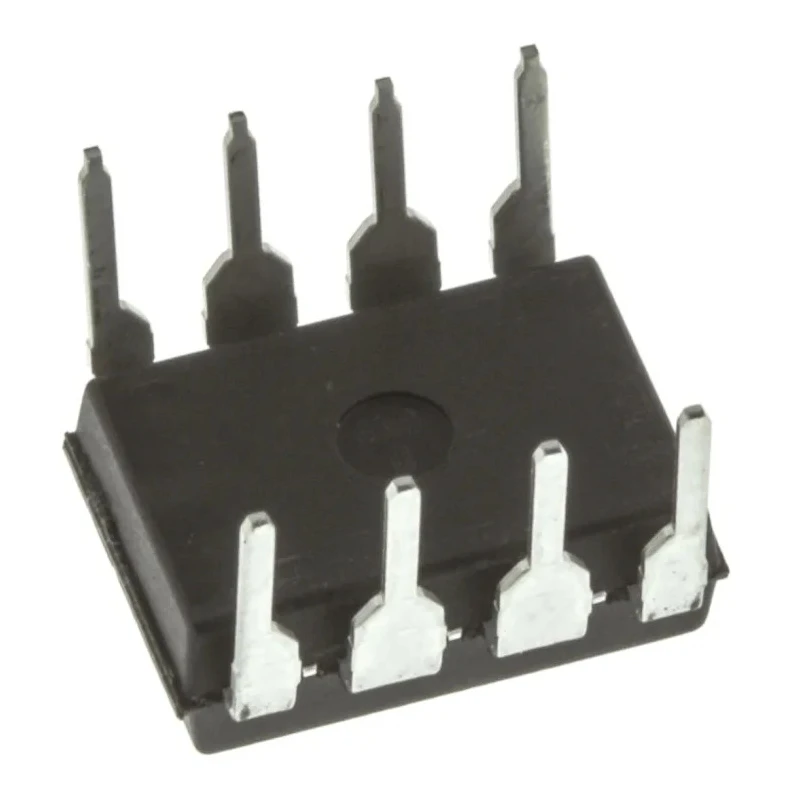

Broadcom DC Input 2-Channel Optocoupler Through Hole 8-Pin DIP HCPL-2630-000E
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Model | HCPL-2630-000E |
| Packaging | Tube |
| Mount Type | Through Hole |
| Output type | Transistor |
| Series | HCPL |
| Maximum Operating Temperature | 85°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| Maximum input current | 20mA |
| Number Of Channels | 2 |
| Standards/Approvals | CSA, UL |
| Maximum Forward Voltage | 1.75V |
| Number of Pins | 8 |
| Input Current Type | DC |
| Typical Rise Time | 24ns |
| Typical Fall Time | 10ns |
| Automotive Standard | AEC-Q100 |
| High CMR opto-isolator,HCPL2630Brand | Avago Technologies |
Key Features
- Featuring two isolated channels with transistor output for versatile applications.
- Through hole mount with 8-pin DIP package for easy PCB integration.
- Maximum forward voltage of 1.75 volts ensuring efficient operation.
- Typical rise and fall times of 24ns and 10ns respectively for high-speed switching.
- Operating temperature range from -40°C to 85°C for industrial environments.
- Isolation voltage rated at 3.75 kVrms for safety and noise immunity.
- Complies with CSA and UL standards, and meets automotive AEC-Q100 requirements.
- Packaging in tubes ready for insertion increases manufacturing efficiency.
Product Description
Broadcom HCPL-2630-000E is a DC input, 2-channel optocoupler featuring a through hole 8-pin DIP package, designed to provide isolated logic communication and control in demanding industrial, medical, and automation applications.
This device includes two channels with transistor output that ensure electrical isolation between input and output circuits, promoting system safety and noise reduction. The typical forward voltage of 1.75V and maximum input current of 20mA allow reliable interfacing with various DC voltage systems.
The optocoupler exhibits fast switching with typical rise and fall times of 24ns and 10ns respectively, supporting data rates up to 10MBd. Its operating temperature range from -40°C to 85°C enables use in a broad range of industrial environments.
Safety and quality are assured with compliance to CSA and UL standards, along with compliance to automotive-grade AEC-Q100 requirements. The device is packaged in tubes to facilitate efficient assembly within automated or manual manufacturing processes.
Typical applications include isolated communication interfaces in power supplies, factory automation, industrial control systems, and medical equipment, where reliability and safety are paramount.
Two isolated channels for dual input control. Transistor output for versatile interfacing. Through hole 8-pin DIP package for standard PCB footprints. Fast switching speeds suitable for high-frequency digital signals. Wide operating temperature range supporting industrial use.
High isolation voltage of 3.75 kVrms ensuring electrical safety. Certified to meet CSA, UL, and automotive AEC-Q100 standards. Packaged in tubes for manufacturing convenience. Discover further Optocoupler components in the Electronics Components category on EnvMart to support your industrial and commercial electronic design needs.
