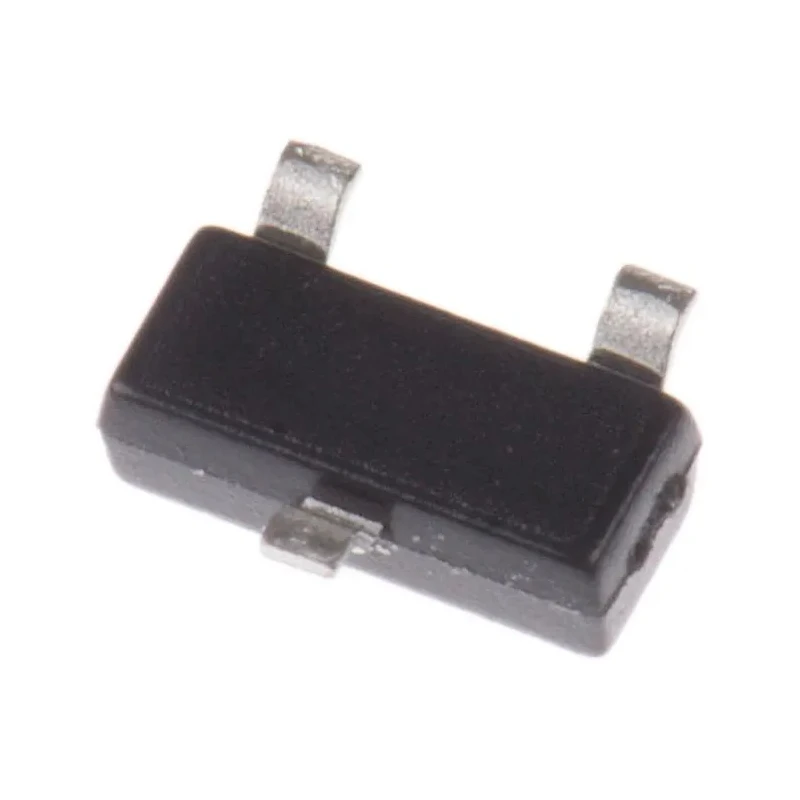

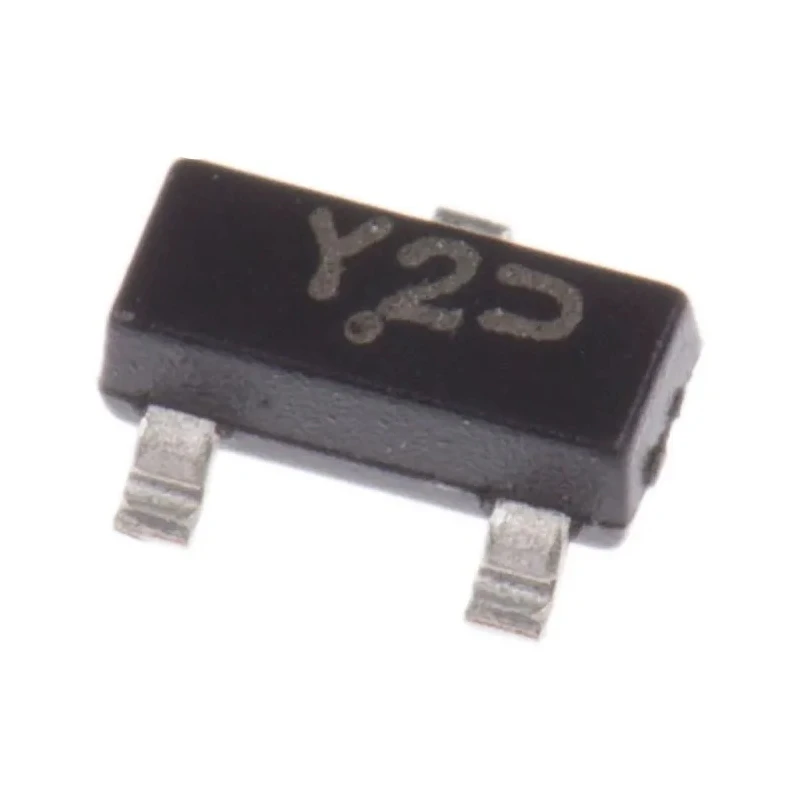

onsemi 1.12 V Zener Diode Single Surface Mount 300 mW 5 % Tolerance 3-Pin SOT-23 BZX84C12LT1G

Free Delivery in India | Lowest Global Shipping Charges

onsemi 1.12 V Zener Diode Single Surface Mount 300 mW 5 % Tolerance 3-Pin SOT-23 BZX84C12LT1G

Name: onsemi 1.12 V Zener Diode Single Surface Mount 300 mW 5 % Tolerance 3-Pin SOT-23 BZX84C12LT1G
Brand: onsemi
SKU: 341579
Price: 20.22 USD
Availability: InStock



Category Zener Diodes Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Height	1.11mm
Length	3.04mm
Model	BZX84C12LT1G
Mount Type	Surface
Series	BZX84
Maximum Operating Temperature	150°C
Package Type	SOT-23
Minimum Operating Temperature	-65°C
Pin Count	3
Number of Elements per Chip	1
Maximum Power Dissipation Pd	300mW
Diode Configuration	Single
Test Current It	5mA
Maximum Reverse Leakage Current	100nA
Nominal Zener Voltage Vz	12V
Zener Type	Voltage Regulator
Maximum Zener Impedance	25Ω
Typical Voltage Temperature Coefficient	8mV/°C
Surface Mount case	SOT-23
12V Zener diode,BZX84C12 300mWBrand	ON Semiconductor

Key Features

This diode is housed in a compact 3-pin SOT-23 package suitable for high-density circuit applications.
It features a voltage tolerance of ±5% ensuring reliable voltage regulation performance.
The device operates within a temperature range from -65°C to 150°C for wide environmental compatibility.
Typical test current is 5 mA with a maximum reverse leakage current of 100 nA for efficient operation.
Maximum Zener impedance is 25 Ω maintaining stable voltage regulation under specified conditions.
Ideal for consumer electronics, portable devices, and handheld applications requiring space-saving voltage regulation.
Complies with no specific automotive standards and is RoHS compliant for environmental safety.
Small package size further supports integration into compact printed circuit boards.

Product Description

onsemi BZX84C12LT1G is a voltage regulator Zener diode designed for surface mount applications, offering a nominal voltage of 12 V and power dissipation up to 300 mW.

This single-element diode is housed in a compact SOT-23 package, which enables use in high-density boards and space-constrained designs. The device exhibits a voltage tolerance of ±5%, supporting stable voltage regulation across varying conditions.

Operating temperatures range from -65°C to 150°C, making it suitable for diverse industrial and consumer environments. Its electrical performance features include a test current of 5 mA, maximum reverse leakage current of 100 nA, and a maximum Zener impedance of 25 Ω.

Applications include consumer electronics, portable and handheld devices, and circuits requiring precise voltage regulation within limited space. Compact surface mount SOT-23 package designed for optimal board assembly. Voltage tolerance of ±5% ensures consistent voltage control.

Wide operating temperature range from -65°C to 150°C. Low reverse leakage current for efficient operation. Nominal Zener voltage of 12 V with 300 mW power rating. Ideal for use in portable electronics and consumer devices.

RoHS compliant and environmentally safe for modern electronics manufacturing. Suitable for industrial electronics, laboratory, and communication equipment applications. Set contains 1 Pc single-element diode. Explore more semiconductor components and Zener Diodes in the Electronics & Electricals category at EnvMart for your design and manufacturing needs.
