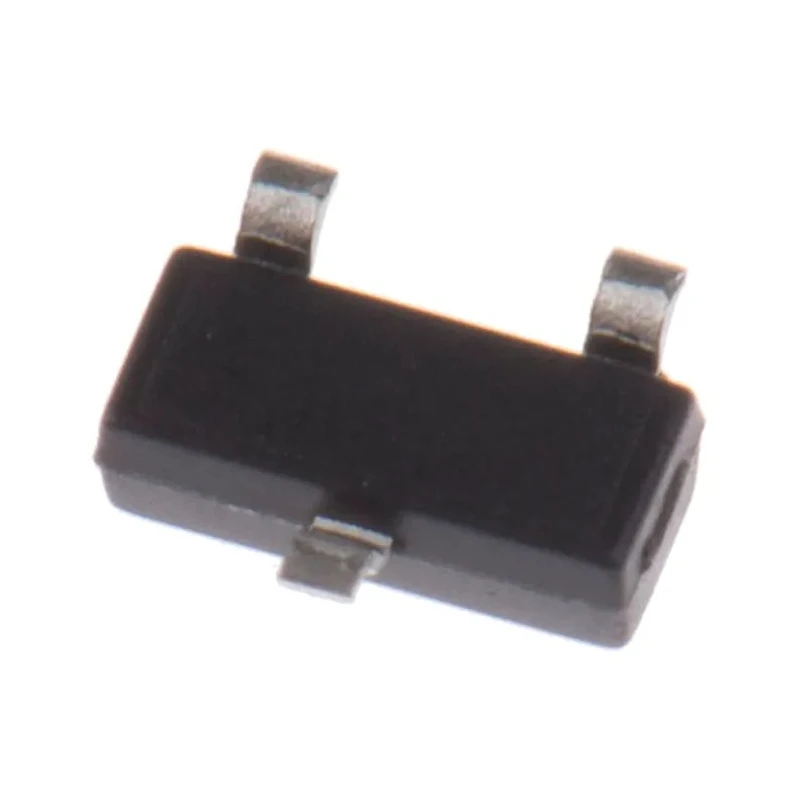

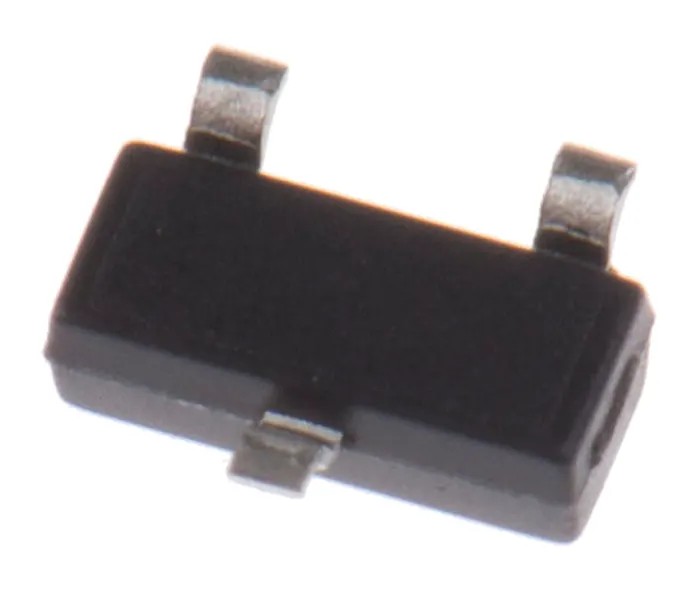

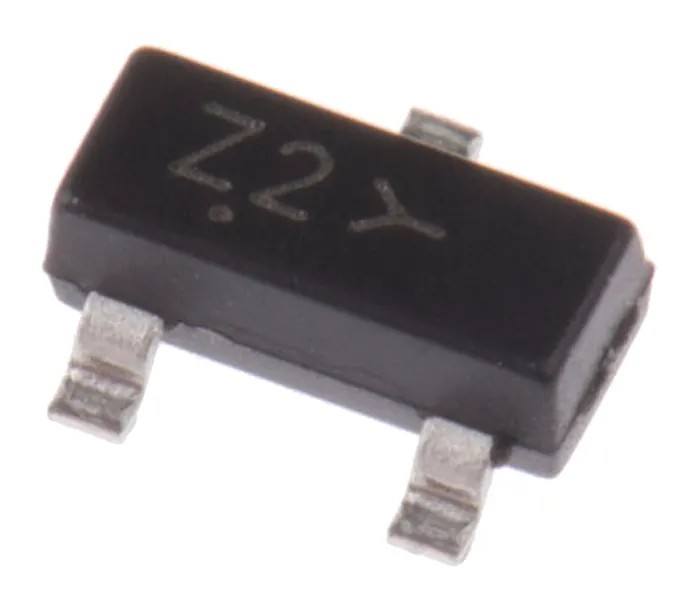

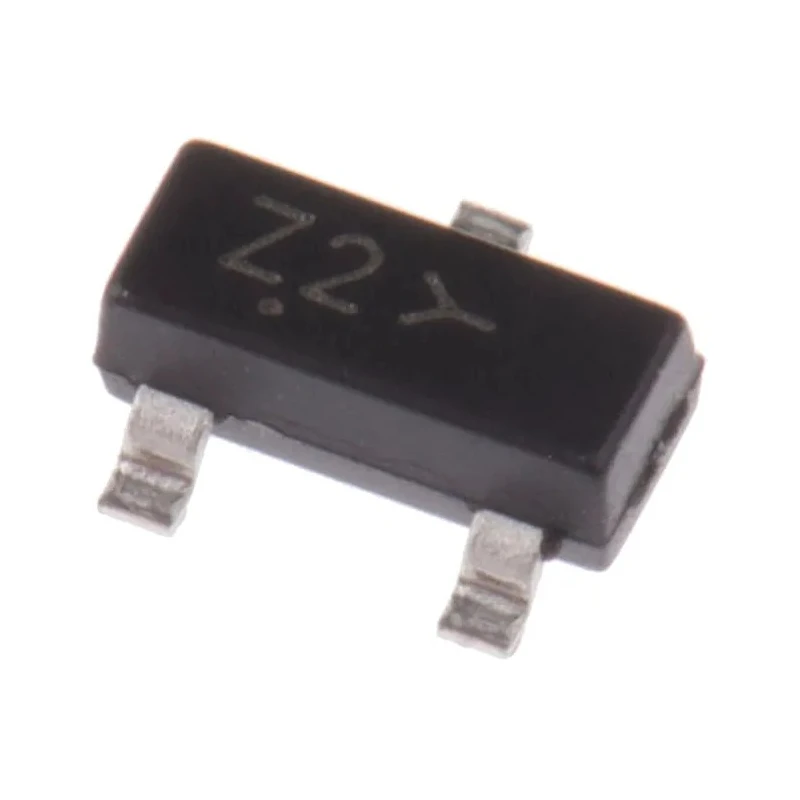

onsemi Zener Diode 5.1V 300mW Surface Mount SOT-23 Single Element BZX84C5V1LT1G
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 1.11mm |
| Length | 3.04mm |
| Model | BZX84C5V1LT1G |
| Mount Type | Surface |
| Series | BZX84 |
| Maximum Operating Temperature | 150°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 3 |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation Pd | 300mW |
| Diode Configuration | Single |
| Test Current It | 5mA |
| Maximum Reverse Leakage Current | 2μA |
| Nominal Zener Voltage Vz | 5.1V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 60Ω |
| Typical Voltage Temperature Coefficient | -0.75mV/°C |
| Surface Mount case | SOT-23 |
| Nexperia 1, 5.1 V Zener Diode, Single 300 mW 5 % Surface 2-Pin UMDBrand | Nexperia |
| 5.1V Zener diode,BZX84B5V1 300mWBrand | ON Semiconductor |
Key Features
- This single element diode has a nominal zener voltage of 5.1V with ±6% tolerance.
- It supports a maximum power dissipation of 300 milliwatts.
- The device features a 3-pin SOT-23 package suitable for surface mounting.
- Test current is 5mA with maximum zener impedance of 60 ohms.
- The diode has a maximum reverse leakage current of 2 microamps.
- Operating temperature ranges from -65°C to 150°C.
- Typical voltage temperature coefficient is -0.75mV/°C, ideal for voltage regulation.
- This component does not conform to any automotive standard but is suitable for a wide range of electronics applications.
Product Description
onsemi BZX84C5V1LT1G is a nominal 5.1 V Zener Diode designed for voltage regulation in electronic circuits. Packaged in a compact surface mount SOT-23 3-pin case, it dissipates a maximum power of 300 mW, making it ideal for low power applications.
The device features a single element configuration with a zener voltage tolerance of ±6%, and a test current of 5 mA ensuring consistent voltage regulation. With its low leakage current of 2 μA and maximum zener impedance of 60 Ω, it provides high reliability and energy efficiency.
The temperature operating range from -65°C to 150°C and a typical voltage temperature coefficient of -0.75mV/°C make this diode suitable for demanding industrial, automotive, and consumer electronics applications requiring stable voltage regulation across temperature variations.
Common uses include protection circuits, reference voltage applications, and overvoltage protection in power supplies and signal conditioning systems. This single element diode has a nominal zener voltage of 5.1V with ±6% tolerance.
It supports a maximum power dissipation of 300 milliwatts. The device features a 3-pin SOT-23 package suitable for surface mounting. Test current is 5mA with maximum zener impedance of 60 ohms. The diode has a maximum reverse leakage current of 2 microamps.
Operating temperature ranges from -65°C to 150°C. Typical voltage temperature coefficient is -0.75mV/°C, ideal for voltage regulation. This component does not conform to any automotive standard but is suitable for a wide range of electronics applications.
Explore more products in our Zener Diodes category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal zener voltage of this diode is 5.1V with a tolerance of ±6%.
It supports a maximum power dissipation of 300 milliwatts.
The operating temperature range is from -65°C to 150°C.
The maximum reverse leakage current is 2 microamps.
The test current is 5mA.
The maximum zener impedance is 60 ohms.
It is packaged in a 3-pin SOT-23 surface mount case.
This diode features a single element configuration.
The typical voltage temperature coefficient is -0.75mV/°C.
Common uses include protection circuits, reference voltage applications, and overvoltage protection in power supplies and signal conditioning systems.
The height of the SOT-23 package is 1.11mm and the length is 3.04mm.
This component does not conform to any automotive standard but is suitable for a wide range of electronics applications.
