STMicroelectronics 100 V 100 mA Schottky Diode, 2-Pin DO-35 Package BAT41

Free Delivery in India | Lowest Global Shipping Charges

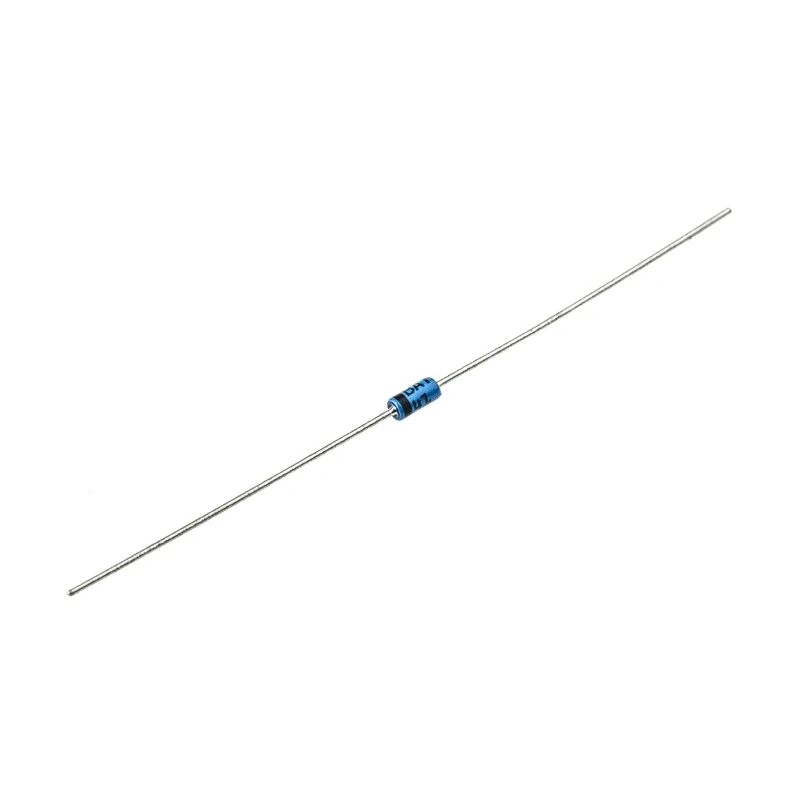

STMicroelectronics 100 V 100 mA Schottky Diode, 2-Pin DO-35 Package BAT41

Name: STMicroelectronics 100 V 100 mA Schottky Diode, 2-Pin DO-35 Package BAT41
Brand: STMicroelectronics
SKU: 341449
Price: 0.11 USD
Availability: InStock



Category Schottky Diode Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Diameter	1.7mm
Brand	STMicroelectronics
Height	2mm
Length	4.5mm
Model	BAT41
Width	2mm
Mount Type	Through Hole
Series	BAT41
Maximum Operating Temperature	125°C
Package Type	DO-35
Minimum Operating Temperature	-65°C
Pin Count	2
Maximum Continuous Forward Current If	100mA
Peak Reverse Repetitive Voltage Vrrm	100V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	100nA
Peak Non-Repetitive Forward Surge Current Ifsm	750mA
Maximum Forward Voltage Vf	1V
Avago Technologies 20A, Schottky Diode, 2-Pin 5082-2811Brand	Avago Technologies
STMicroelectronics 100V 100mA, Schottky Diode, 2-Pin DO-35 BAT41Brand	STMicroelectronics

Key Features

The diode features a maximum continuous forward current of 100 mA.
It has a peak reverse repetitive voltage of 100 V.
The maximum forward voltage is 1 V, enabling efficient power usage.
The device offers a peak non-repetitive forward surge current of 750 mA.
It operates reliably within a temperature range of -65°C to 125°C.
The diode has a compact form factor with a length of 4.5 mm and diameter of 1.7 mm.
Designed for through-hole mounting with a DO-35 package type.
It ensures a low peak reverse current of 100 nA for high efficiency.

Product Description

STMicroelectronics BAT41 is a high-efficiency Schottky Diode designed for through-hole mounting in a compact 2-Pin DO-35 package. It supports continuous forward current up to 100 mA and offers a peak reverse repetitive voltage rating of 100 V, suitable for various power and signal rectification applications.

The diode features a maximum forward voltage of 1 V, which minimizes power losses during conduction. With a peak non-repetitive forward surge current capability of 750 mA, this component ensures reliability under transient overload conditions. It operates effectively across a wide temperature range from -65°C up to 125°C, making it suitable for robust industrial, automotive, and consumer electronics applications.

Its small physical dimensions - 4.5 mm length, 2 mm height and width, and 1.7 mm diameter - enable compact PCB layouts while maintaining optimal electrical performance. The BAT41's low peak reverse current of 100 nA limits leakage, improving overall circuit efficiency. This diode is ideal for use in power supplies, voltage clamping circuits, and fast switching applications due to its Schottky barrier characteristics.

The single diode configuration simplifies the integration into standard discrete semiconductor circuits, making it a versatile choice in semiconductor and electronic component inventories.

The diode enables efficient power rectification with minimal forward voltage drop. Its robust thermal characteristics support reliable operation in demanding environments. Compact DO-35 through-hole package facilitates easy mounting and replacement.

Low leakage current improves device efficiency and longevity. Widely used in industrial, automotive, electronic, and power management applications.
