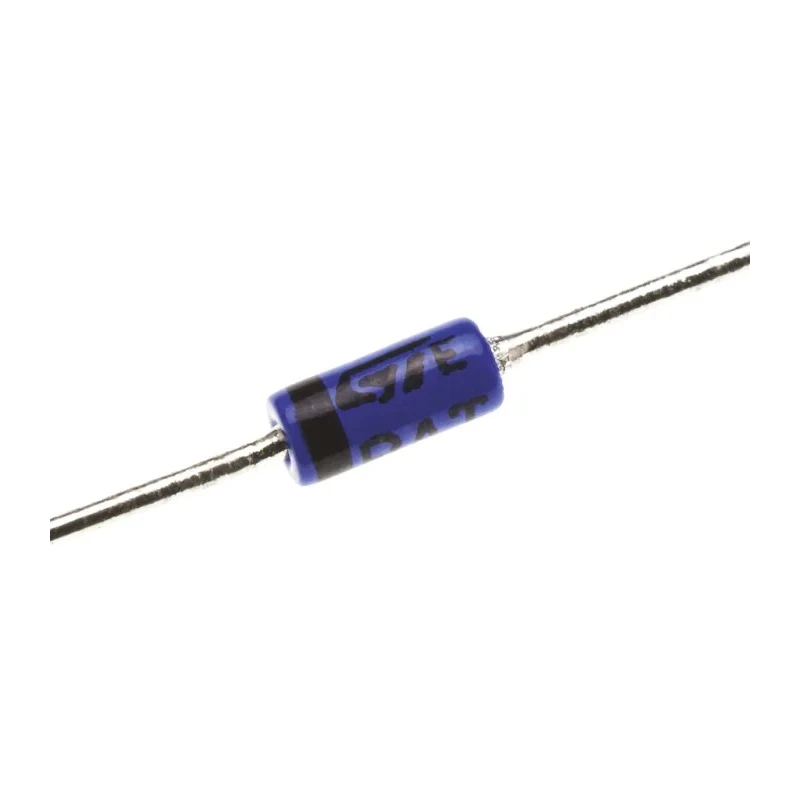

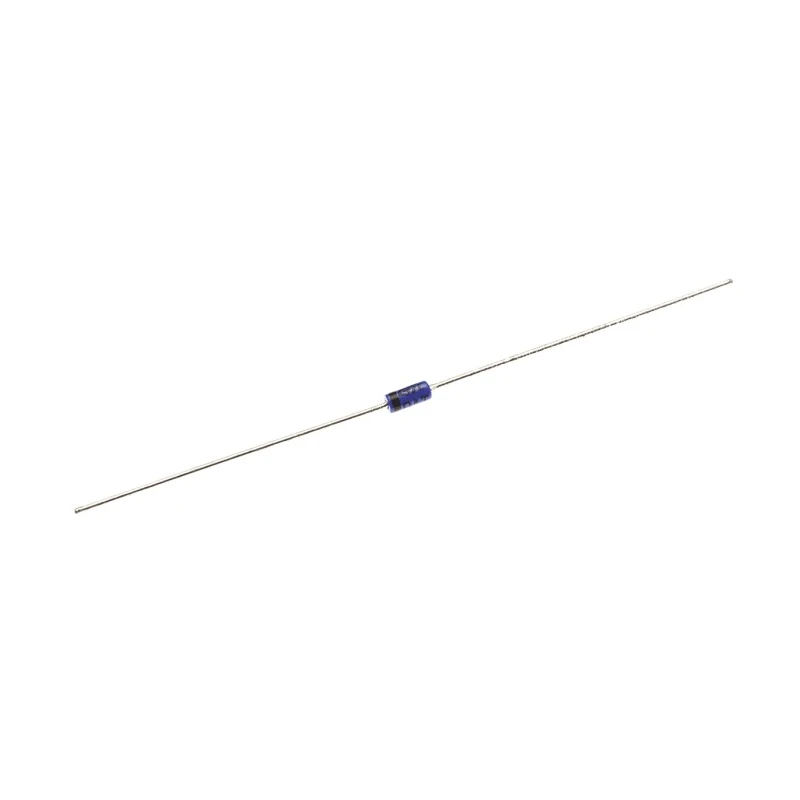

STMicroelectronics Schottky Diode 30 V 200 mA 2-Pin DO-35 BAT42

Free Delivery in India | Lowest Global Shipping Charges

STMicroelectronics Schottky Diode 30 V 200 mA 2-Pin DO-35 BAT42

Name: STMicroelectronics Schottky Diode 30 V 200 mA 2-Pin DO-35 BAT42
Brand: STMicroelectronics
SKU: 341448
Price: 0.11 USD
Availability: InStock



Category Schottky Diode Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Diameter	1.7mm
Brand	STMicroelectronics
Height	2.1mm
Length	3.7mm
Model	BAT42
Width	2.1mm
Mount Type	Through Hole
Series	BAT42
Maximum Operating Temperature	125°C
Package Type	DO-35
Minimum Operating Temperature	-65°C
Standards/Approvals	RoHS
Pin Count	2
Maximum Continuous Forward Current If	200mA
Peak Reverse Repetitive Voltage Vrrm	30V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	500nA
Peak Non-Repetitive Forward Surge Current Ifsm	4A
Maximum Forward Voltage Vf	450mV
Peak Reverse Recovery Time trr	5ns
STMicroelectronics 30V 200mA, Schottky Diode, 2-Pin DO-35 BAT42Brand	STMicroelectronics

Key Features

Metal-to-silicon small signal Schottky diode suitable for general purpose applications.
Maximum continuous forward current of 200 mA for efficient low current rectification.
Peak repetitive reverse voltage rating of 30 V to withstand moderate reverse voltages.
Fast switching with a peak reverse recovery time of 5 ns for high frequency operation.
Operating temperature range from -65°C to 125°C ensuring reliable performance in diverse environments.
Compact DO-35 package measuring 3.7 mm length and 2.1 mm width and height for easy PCB integration.
Low forward voltage of 450 mV to reduce power loss in circuits.
Designed for integration in electronic components, power connectors, and discrete semiconductor applications.

Product Description

STMicroelectronics BAT42 is a high-quality Schottky diode designed for fast switching and low forward voltage drop, making it ideal for a wide range of electronic applications. Packaged in a DO-35 through-hole format, it offers a compact design with dimensions of 3.7 mm length, 2.1 mm width, and 1.7 mm diameter, facilitating easy integration on printed circuit boards.

This small signal diode supports a maximum continuous forward current of 200 mA and peak reverse repetitive voltage of 30 V, suitable for protection and rectification purposes in electronic circuits. Its peak reverse recovery time of 5 nanoseconds allows it to operate effectively in high-frequency switching power supplies and signal demodulation.

Operating reliably within an extended temperature range from -65°C to 125°C, the BAT42 diode is suitable for use in demanding industrial and commercial environments including power supplies, automotive electronics, and consumer devices. The low forward voltage drop of 450 mV ensures minimal power dissipation, enhancing efficiency in power-sensitive applications.

Metal-to-silicon Schottky diode technology for improved switching performance. Compact DO-35 package suitable for through-hole mounting. 200 mA continuous current rating with 4 A surge capability for transient conditions.

Wide operating temperature range for reliable industrial use. RoHS compliant, ensuring environmental safety standards. Designed to protect against excess voltage including electrostatic discharge. Ideal for use in power rectification, voltage clamping, and RF detection circuits.

The STMicroelectronics BAT42 Schottky Diode combines reliable performance with efficient design, supporting its application in electronic components, power connectors, semiconductor devices, and broader electrical systems. Availability from EnvMart assures quality and supply for laboratory, manufacturing, and commercial uses.
