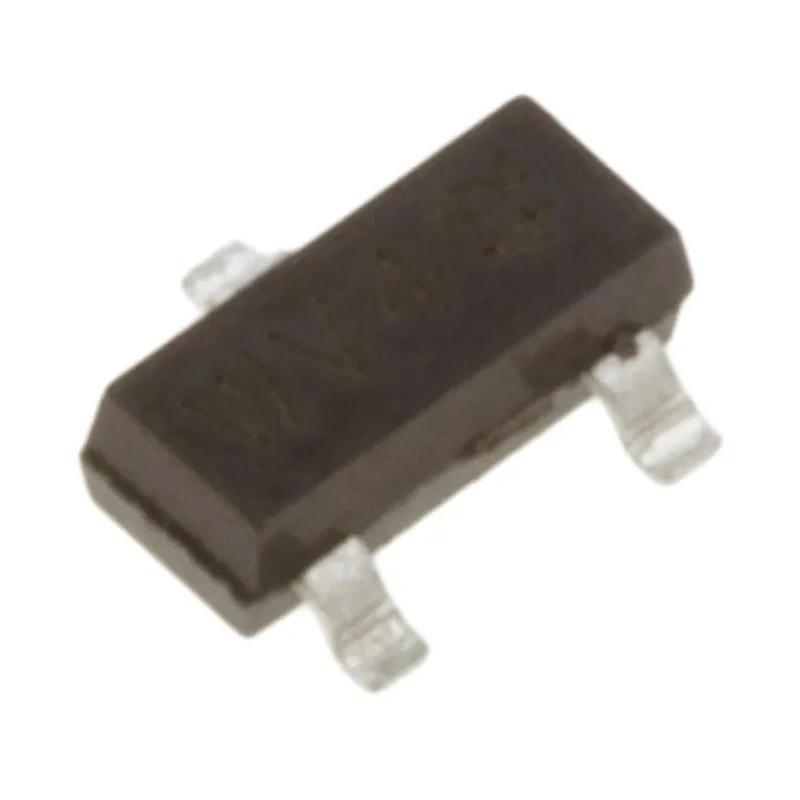

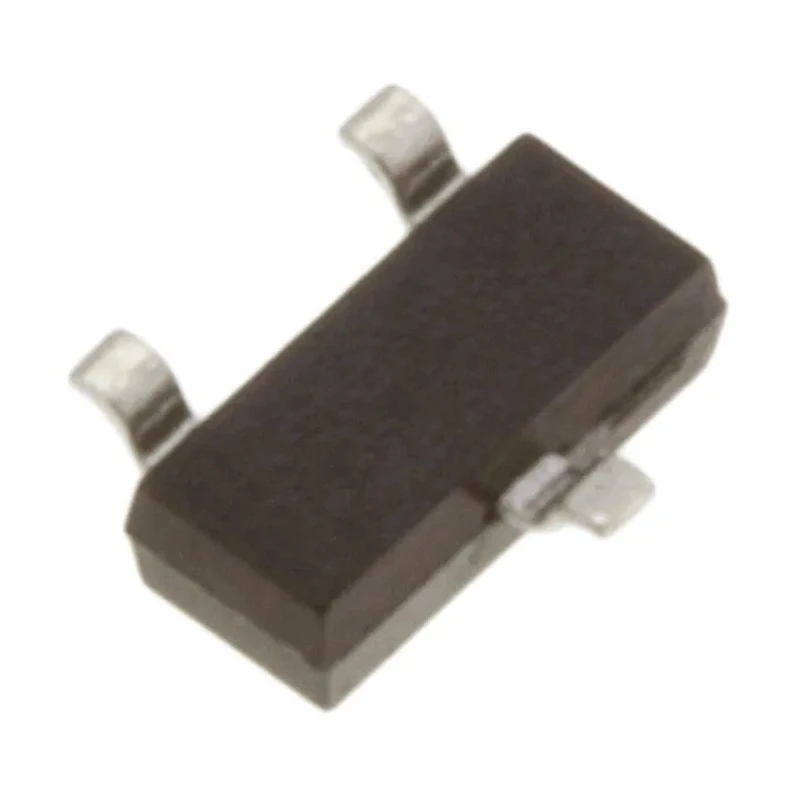

Nexperia 30 V 200 mA Schottky Diode 3-Pin Surface Mount SOT-23 BAT54S,215

The Nexperia BAT54S,215 Schottky Diode is a discrete semiconductor component featuring a 3-pin SOT-23 surface mount package. It is engineered to handle a maximum continuous forward current of 200 mA with a peak reverse repetitive voltage rating of 30 V. This Schottky barrier diode is designed for applications demanding low forward voltage drop and minimal switching losses, making it ideal for power-sensitive circuits.

Its ultra-small, low-profile form factor with approximate dimensions of 3 mm (length), 1.4 mm (width), and 1 mm (height) supports space-constrained electronic designs. The BAT54S,215 diode exhibits excellent thermal stability with operating temperature range from -65°C to +125°C, suitable for a variety of industrial, automotive, and consumer electronic applications.

Key electrical characteristics include a maximum forward voltage of 800 mV, a peak non-repetitive forward surge current of 600 mA, and a minimal peak reverse recovery time of 5 ns. The low leakage current of 2 μA reduces power losses, enhancing circuit efficiency, especially in high-frequency switching circuits.

This device complies with the automotive standard AEC-Q101, attesting to its robustness for use in automotive electronics. Typical use cases range from voltage clamping, power rectification, and protection circuits in automotive systems, industrial control modules, telecommunications, and power supplies.

The diode features a peak reverse repetitive voltage of 30 V and continuous forward current of 200 mA. Small SOT-23 package ensures compact board integration. Low forward voltage drop of 800 mV reduces conduction losses.

High surge current tolerance of 600 mA for transient events. Wide operating temperature range supports harsh environments. Low leakage current and rapid recovery promote energy efficiency. Meets AEC-Q101 automotive reliability standards.

Physical dimensions: 3 mm × 1.4 mm × 1 mm.

This comprehensive Schottky diode from Nexperia is suitable for demanding industrial, automotive, telecommunications, and electronics manufacturing applications. Explore more semiconductor components and Schottky Diodes on EnvMart to build robust and reliable designs.
