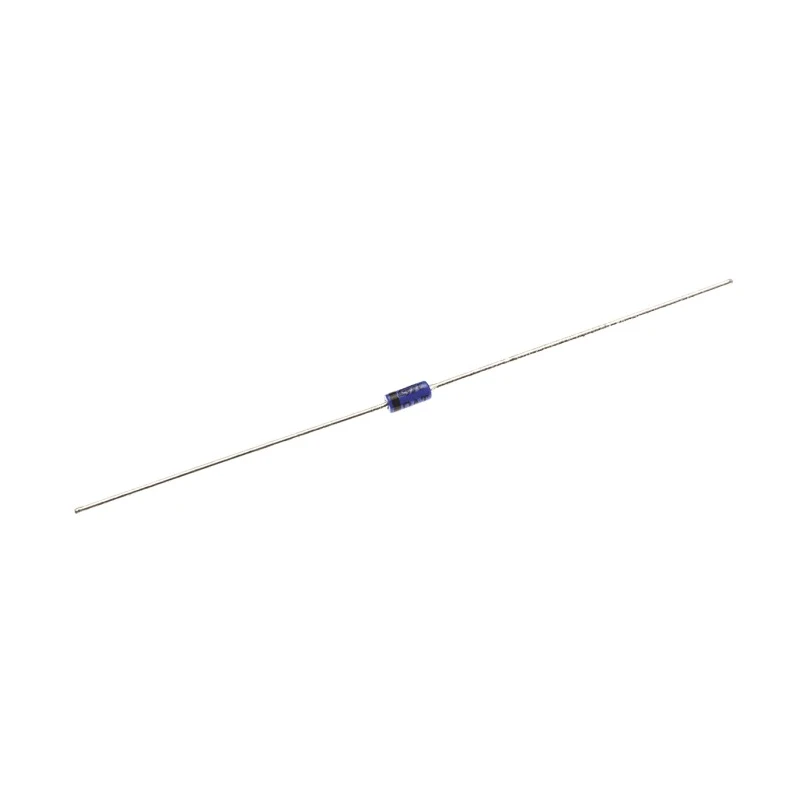

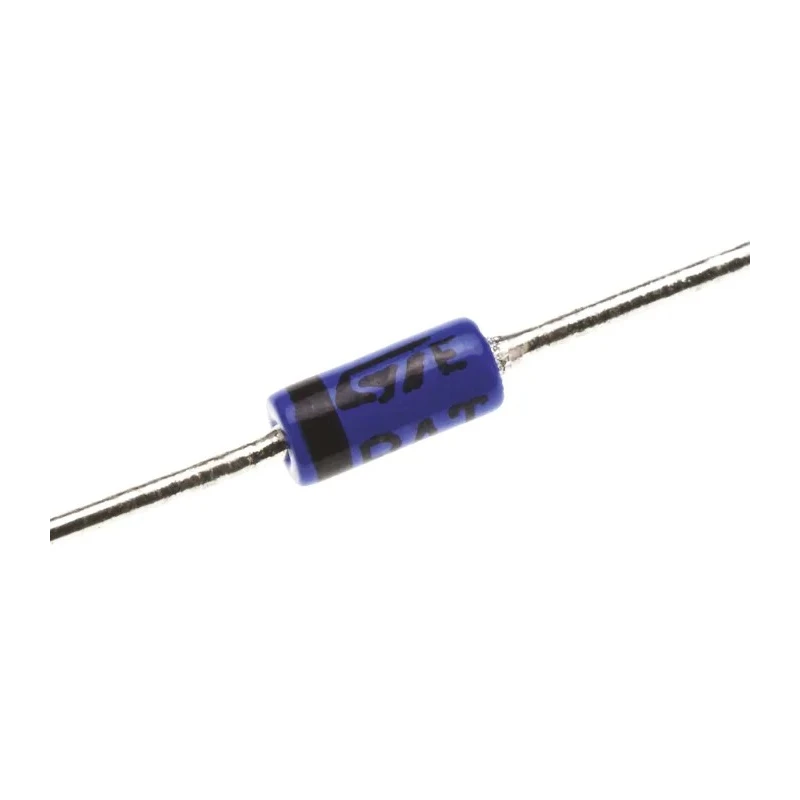

STMicroelectronics 30 V 200 mA Schottky Diode 2-Pin DO-35 BAT42

Name: STMicroelectronics 30 V 200 mA Schottky Diode 2-Pin DO-35 BAT42
Brand: STMicroelectronics
SKU: 341444
Price: 0.09 USD
Availability: InStock



Category Schottky Diode Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Diameter	1.7mm
Brand	STMicroelectronics
Height	2.1mm
Length	3.7mm
Model	BAT42
Width	2.1mm
Mount Type	Through Hole
Series	BAT42
Maximum Operating Temperature	125°C
Package Type	DO-35
Minimum Operating Temperature	-65°C
Standards/Approvals	RoHS
Pin Count	2
Maximum Continuous Forward Current If	200mA
Peak Reverse Repetitive Voltage Vrrm	30V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	500nA
Peak Non-Repetitive Forward Surge Current Ifsm	4A
Maximum Forward Voltage Vf	450mV
Peak Reverse Recovery Time trr	5ns

Key Features

Through hole mount type for easy PCB integration.
Maximum continuous forward current is 200 mA ensuring reliable operation.
Peak reverse voltage rating of 30 V supports a variety of circuit uses.
Low forward voltage drop of 450 mV improves efficiency.
Fast recovery with peak reverse recovery time of 5 ns.
Operates over a wide temperature range of -65°C to 125°C.
Meets RoHS standards ensuring environmental safety.
Peak non-repetitive forward surge current capability of 4 A for transient handling.

Product Description

STMicroelectronics BAT42 Schottky Diode 30 V 200 mA DO-35 is a small signal diode manufactured using metal-to-silicon technology packaged in the compact DO-35 form factor. It is designed for general-purpose applications requiring efficient switching and rectification.

This diode features a maximum continuous forward current rating of 200 mA and handles peak reverse voltages up to 30 V, making it suitable for low power circuits and discrete semiconductor assemblies. The low forward voltage of 450 mV reduces power loss and improves circuit efficiency, while the fast reverse recovery time of 5 ns enables high-speed switching.

The BAT42 operates reliably within a temperature range from -65° C to 125° C, making it suitable for diverse industrial, electronics, and automotive applications. Its through-hole mounting and 2-pin configuration simplify PCB assembly and integration. Physical dimensions include 3.7 mm length, 2.1 mm width and height, and 1.7 mm diameter, fitting space-constrained circuit designs.

Compliance with RoHS ensures environmentally friendly manufacturing standards. The diode also supports surge currents up to 4 A, providing transient voltage and current protection.

Through hole mount type for easy PCB integration. Maximum continuous forward current is 200 mA ensuring reliable operation. Peak reverse voltage rating of 30 V supports a variety of circuit uses. Low forward voltage drop of 450 mV improves efficiency.

Fast recovery with peak reverse recovery time of 5 ns. Operates over a wide temperature range of -65°C to 125°C. Compact DO-35 package with 2 pins and precise dimensions. Meets RoHS standards ensuring environmental safety.

Peak non-repetitive forward surge current capability of 4 A for transient handling.

This STMicroelectronics BAT42 diode is ideal for use in industrial electronics assemblies, power management circuits, signal rectification, and other semiconductor applications requiring low forward voltage and fast switching times. It finds use across electronics manufacturing, automotive electronics, semiconductors, and laboratory electronic instrumentation. Browse similar Schottky Diodes & Rectifiers on EnvMart for expanded selection and applications.
