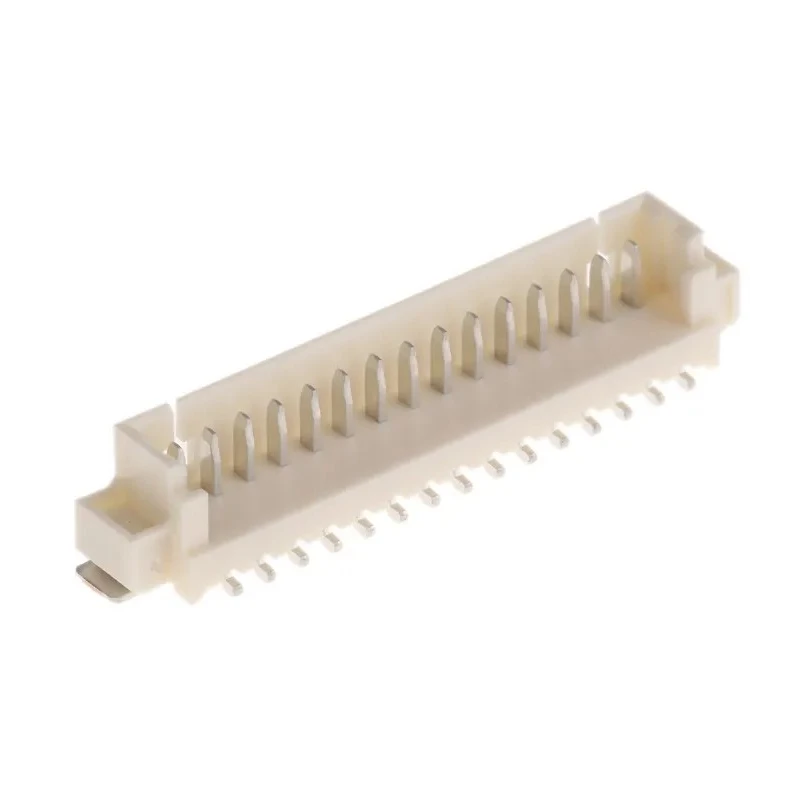

Molex PicoBlade Series Straight Surface PCB Header 15 Contacts 1.25 mm Pitch 1 Row Shrouded 53398-1571

Molex 53398-1571 PicoBlade Series Straight Surface PCB Header is a high-density wire-to-board connector featuring 15 male phosphor bronze contacts with tin plating. The compact 1.25 mm pitch and single-row configuration provide efficient PCB space utilization while maintaining a current rating of 1 A. The header housing is fabricated from robust nylon and includes a shrouded design to enhance connection security.

This PCB header incorporates a friction locking mechanism that engages with latching ramps to ensure a stable and vibration-resistant mating interface. The surface mount type termination with solder tabs not only secures the header to the PCB but also acts as strain relief to prevent solder joint failures due to mechanical stress.

Designed for a wide operating temperature range from -40°C to 105°C and rated for 125 V, this PCB connector is suitable for demanding automotive alarm systems, car audio, DVD players, industrial process controls, and medical patient monitoring equipment. Its wire-to-board system offers up to 45% PCB space savings compared to larger 2.00 mm pitch connectors without compromising performance.

This PCB header supports a current of 1 A in a compact 1.25 mm pitch form factor. The housing is made of durable nylon material, ensuring reliable insulation. The connector features a shrouded, straight orientation with male phosphor bronze contacts plated with tin.

A friction locking mechanism secures mating connections and prevents accidental disconnections. Surface mount type with solder termination provides secure PCB retention and strain relief. Operates reliably in a temperature range from -40°C to 105°C.

The 15-contact single row design optimizes PCB space by up to 45% compared to 2.00 mm pitch connectors. Ideal for use in automotive, industrial controls, medical devices, and high-density harness applications. Rated for 125 V voltage withstand, suitable for various electronic component interconnections.
