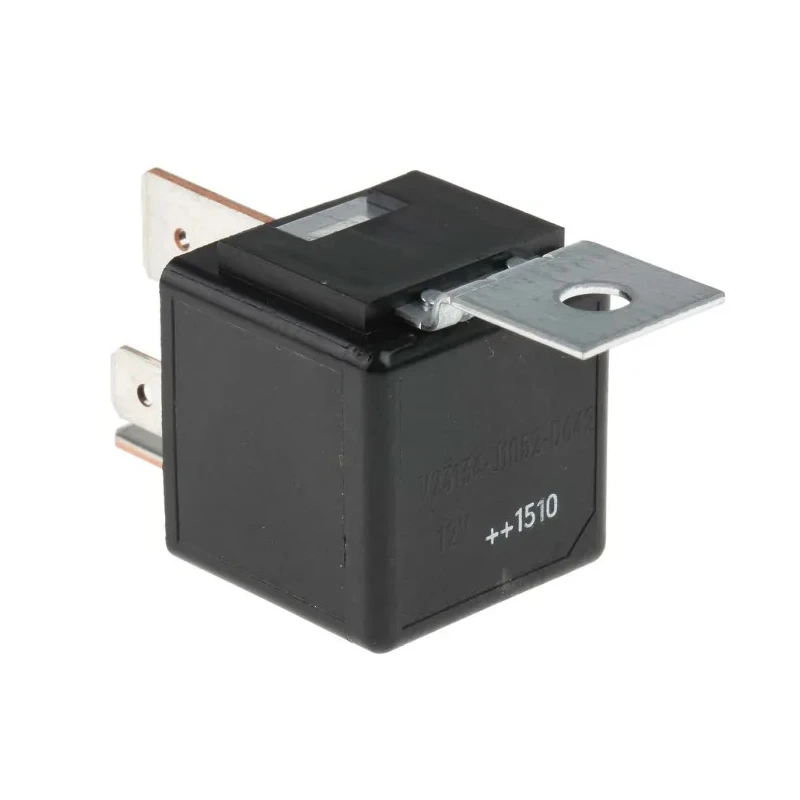

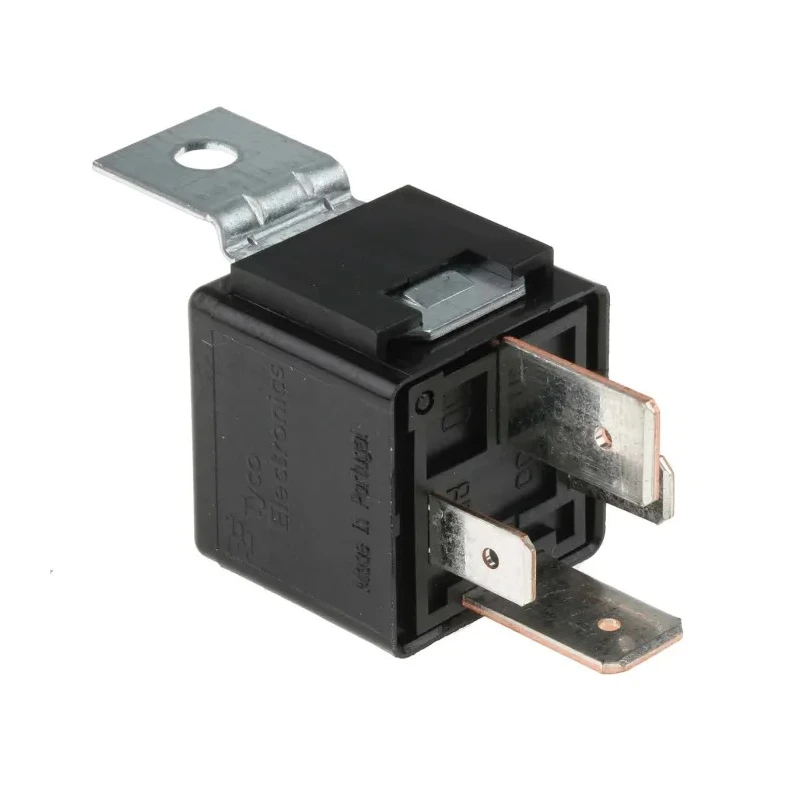

TE Connectivity Automotive Relay 12V DC Coil Voltage 50A Switching Current SPST V23134J1052D642 1393304-9
Specifications
| Country of Origin | Portugal |
|---|---|
| Brand | TE Connectivity |
| Height | 57.9mm |
| Length | 25.9mm |
| Model | V23134J1052D642 1393304-9 |
| Depth | 25.9mm |
| Contact Material | Silver Alloy |
| Series | F7 |
| Maximum Operating Temperature | 125°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Terminal type | Quick Connect |
| Number of Poles | 1 |
| Coil Resistance | 91Ω |
Key Features
- Coil power consumption is 1.6W ensuring efficient operation.
- Coil resistance of 91 ohms for optimized coil performance.
- Silver alloy contact material offers durability and reliable conduction.
- Operates across a wide temperature range from -40°C to 125°C.
- Quick connect terminals enable easy and secure mounting.
- Compact dimensions of 25.9mm length, 57.9mm height, and 25.9mm depth.
- Designed for automotive uses such as cooling fan circuits and wiper circuits.
- Non-latching design for standard relay operation.
Product Description
TE Connectivity V23134J1052D642 1393304-9 is a high-performance automotive relay designed with a 12V DC coil voltage and a robust 50A switching current capacity. It features a Single Pole Single Throw (SPST) contact configuration, making it suitable for a broad range of automotive and industrial circuit applications. This relay belongs to the F7 series which ensures reliability and durability in demanding automotive environments.
The relay coil has a resistance of 91 ohms and a power consumption of 1.6W, optimized for efficient functionality. The contact material is made from a silver alloy, providing excellent electrical conductivity and long service life. It operates reliably within a temperature range of -40°C to 125°C, supporting automotive and other harsh environmental conditions.
Compact in size with dimensions of 25.9mm in length, 57.9mm in height, and 25.9mm in depth, this relay features quick connect terminals for easy installation. The relay’s non-latching design enables immediate reset when de-energized, commonly used in automotive coil suppression and cooling fan circuits.
This model is IP54 rated, offering dust protection and resistance to water splashes, enhancing its suitability for rugged automotive environments. Manufactured in Portugal, this relay is engineered for reliability and performance in critical vehicle control systems.
Coil power consumption is 1.6W ensuring efficient operation. Coil resistance of 91 ohms for optimized coil performance. Silver alloy contact material offering durability and reliable conduction. Wide operating temperature range from -40°C to 125°C.
Quick connect terminal type for ease of mounting. Compact dimensions of 25.9mm length, 57.9mm height, and 25.9mm depth. Non-latching relay suitable for coil suppression and cooling fan circuits. IP54 protection rating for dust and water resistance.
Designed and manufactured for automotive applications.
Ideal for automotive, industrial, and electrical control panel applications requiring high current switching with reliable coil actuation. Explore more products in the Automotive Relay category at EnvMart for comprehensive solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a switching current capacity of 50A, making it suitable for various automotive applications.
The coil voltage for this relay is 12V DC, which is standard for many automotive applications.
It features a Single Pole Single Throw (SPST) contact configuration, allowing for simple on/off control.
This relay operates reliably within a temperature range of -40°C to 125°C, suitable for harsh automotive environments.
The relay has compact dimensions of 25.9mm in length, 57.9mm in height, and 25.9mm in depth.
The coil resistance is 91 ohms, which is optimized for efficient operation.
The contact material is silver alloy, providing reliable conduction and durability.
It features quick connect terminals, allowing for easy and secure mounting during installation.
This model has an IP54 rating, offering protection against dust and water splashes.
This relay is manufactured in Portugal, ensuring quality in its production.
It is designed for automotive uses, such as cooling fan circuits and wiper circuits, and is suitable for electrical control panel applications.
This relay belongs to the F7 series, which is known for reliability and performance in automotive environments.
