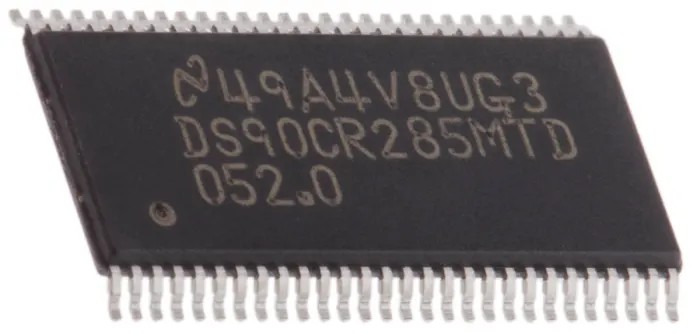

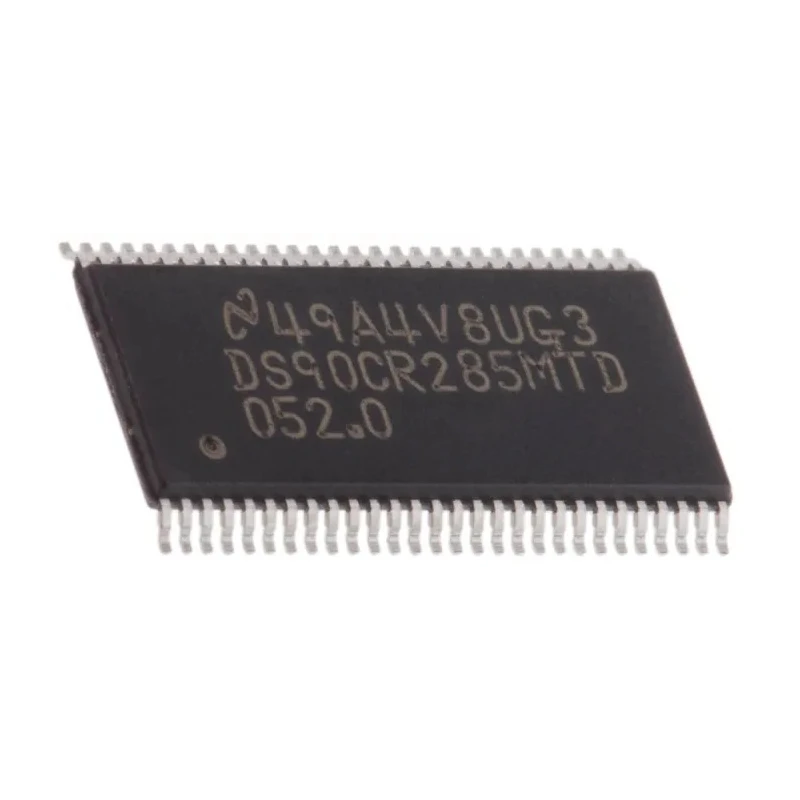

Texas Instruments Transmitter IC 4 Drivers 28 Receivers LVCMOS, LVTTL Input LVDS Output 1848 Mbps 56-Pin DS90CR285MTD/NOPB
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 900μm |
| Length | 14mm |
| Model | DS90CR285MTD/NOPB |
| Mount Type | Surface |
| Output type | LVDS |
| Series | DS90CR285 |
| Input Type | LVCMOS, LVTTL |
| Maximum Operating Temperature | 85°C |
| Package Type | TSSOP |
| Sub Type | Transmitter |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 56 |
| Number of Elements per Chip | 4 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 3V |
| Number of Drivers | 4 |
| Number of Receivers | 28 |
| Transmission Data Rate | 1848Mbps |
| Differential Input High Threshold Voltage | 100mV |
| Differential Input Low Threshold Voltage | -0.1V |
Key Features
- Supports LVCMOS and LVTTL input types for versatile interfacing.
- Offers LVDS differential output supporting data rates up to 1848 Mbps.
- Packaged in a surface-mount 56-pin TSSOP for compact PCB design.
- Operates with supply voltage ranging from 3 V to 3.6 V.
- Includes electrostatic discharge (ESD) protection ensuring device reliability.
- Temperature operating range from -40°C to 85°C suitable for industrial environments.
- Compact dimensions with 14 mm length and 900 μm height for space-saving implementation.
- Complies with RoHS standards supporting environmental safety requirements.
Product Description
Texas Instruments DS90CR285MTD/NOPB is a transmitter integrated circuit designed for high-speed data communication applications requiring LVDS (Low Voltage Differential Signaling) technology. Featuring 4 LVCMOS/LVTTL inputs and 28 receivers, this device is ideal for reliable and efficient data transfer at rates up to 1848 Mbps.
The device is housed in a 56-pin TSSOP surface-mount package, enabling compact and efficient PCB layouts. Its supply voltage range from 3 V to 3.6 V allows compatibility with a variety of system power configurations, while the differential input thresholds support noise-resistant signal integrity.
Operating temperature from -40°C to 85°C makes it suitable for industrial and commercial environments. ESD protection enhances durability and longevity in demanding applications. The DS90CR285MTD/NOPB conforms to RoHS requirements, supporting environmentally responsible manufacturing.
Key applications include Firewire interfaces, SATA storage controllers, and SCSI communication systems, where high data rates and signal integrity are critical. The device leverages Channel Link Serializer/Deserializer technology for robust LVDS communication over twisted-pair copper cables, ensuring high-speed and low-noise data transmission in industrial automation, instrumentation, and electronic component applications.
Supports LVCMOS and LVTTL input voltage levels for flexibility in digital signal interfacing. Transmits data using LVDS output for low-power, high-speed differential signaling. Compact 56-pin TSSOP package facilitates dense integration in PCB designs.
Wide operating temperature range fits varied industrial usage scenarios. Minimum supply voltage of 3 V ensures stable device operation. Includes differential input high and low threshold voltages optimized for noise margin.
RoHS compliant and environmentally safe design practices followed. Enables Channel Link style data serialization ideal for high throughput links. Suitable for applications in measuring instruments, communication interfaces, and industrial electronics.
Explore further electronic components and LVDS Interface Ics at EnvMart to support your manufacturing and industrial automation needs.
