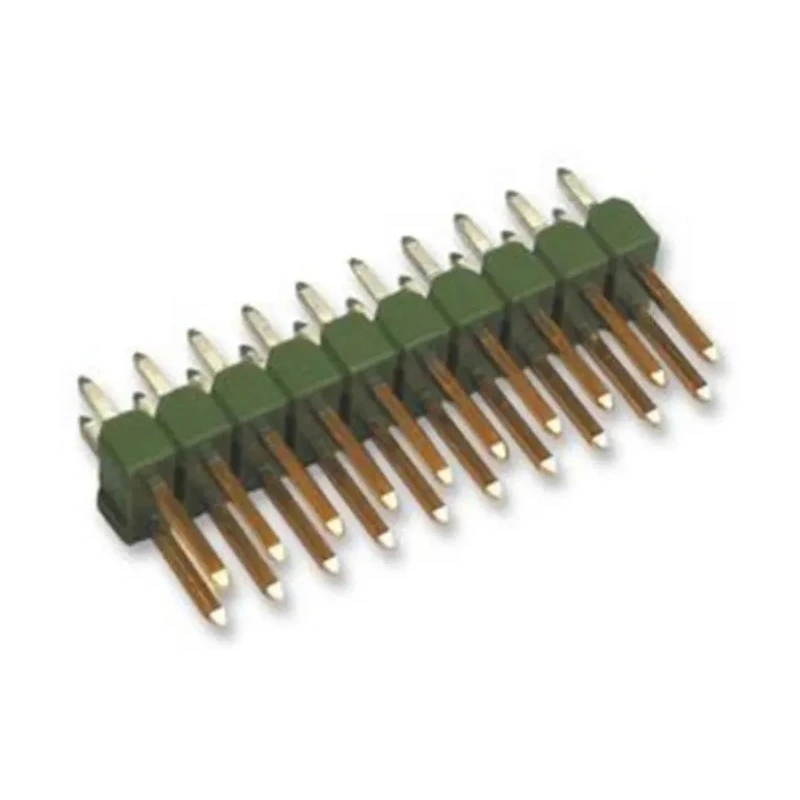

TE Connectivity AMPMODU MOD II Series Straight Through Hole Pin Header, 32 Contacts, 2.54 mm Pitch, 2 Row 1-826632-6
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 750V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | Polyester |
| Contact Material | Phosphor Bronze |
| Series | AMPMODU MOD II |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 32 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 3.2mm |
| Mating Pin Length | 6.7mm |
Key Features
- Constructed with durable polyester housing material for reliability.
- Contact material is phosphor bronze with gold plating for enhanced conductivity.
- Designed to operate within a temperature range from -65°C to 105°C.
- Features through-hole mounting suitable for board-to-board and wire-to-board connections.
- Rated for a maximum voltage of 750V and current capacity of 3A.
- Termination type is solder with male contact gender and straight orientation.
- Tail pin length measures 3.2 mm and mating pin length is 6.7 mm.
- Unshrouded design allows versatile breakaway sizing for custom applications.
Product Description
TE Connectivity 1-826632-6 AMPMODU MOD II Series Straight Through Hole Pin Header is a high-quality interconnect solution providing 32 contacts arranged in 2 rows with a 2.54 mm pitch. Its unshrouded design allows for easy customization by breaking away pins to required sizes. The housing is made from durable polyester, ensuring mechanical and thermal stability in industrial applications.
The contacts utilize phosphor bronze with gold plating, ensuring excellent electrical performance and corrosion resistance. Rated for 750 volts and 3 amps, this pin header supports reliable connections in demanding environments.
Operating temperature ranges from -65°C to 105°C, making it suitable for varied climates and industrial conditions. The connector system supports both board-to-board and wire-to-board wiring schemes, installed via through-hole mounting for strong mechanical retention.
The TE Connectivity AMPMODU Mod II series is widely used across automotive controls, industrial test equipment, telecommunications, medical devices, and computing systems, thanks to its versatile, economical, and reliable design.
Durable polyester housing material provides mechanical strength and environmental resilience. Phosphor bronze contacts with gold plating enhance conductivity and reliability. Operating temperature range from -65°C to 105°C suits various industrial environments.
Through-hole mounting enables sturdy connection on PCBs. Unshrouded 2-row design with 2.54 mm pitch for versatile connection options. Rated for 750 V and 3 A current suitable for signal and low power applications. Straight male contacts facilitate board-to-board and wire-to-board setups.
Tail pin length of 3.2 mm and mating pin length of 6.7 mm for secure solder joints. Applicable in automotive, telecommunications, medical, industrial, and computer electronics. Explore an extensive range of PCB Headers and Connectors at EnvMart to meet diverse industrial and commercial electronic interconnect needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating for this pin header is 750V.
This model has a current capacity of 3A.
It operates within a temperature range from -65°C to 105°C.
The housing is made from durable polyester, and the contacts are constructed from phosphor bronze with gold plating.
This pin header features 32 contacts arranged in 2 rows.
The pitch size for this model is 2.54 mm.
It supports through-hole mounting, suitable for strong mechanical retention on PCBs.
The termination type is solder with male contact gender and straight orientation.
The tail pin length measures 3.2 mm.
The mating pin length is 6.7 mm.
This connector is applicable in automotive controls, telecommunications, medical devices, industrial test equipment, and computing systems.
It supports both board-to-board and wire-to-board wiring schemes.
