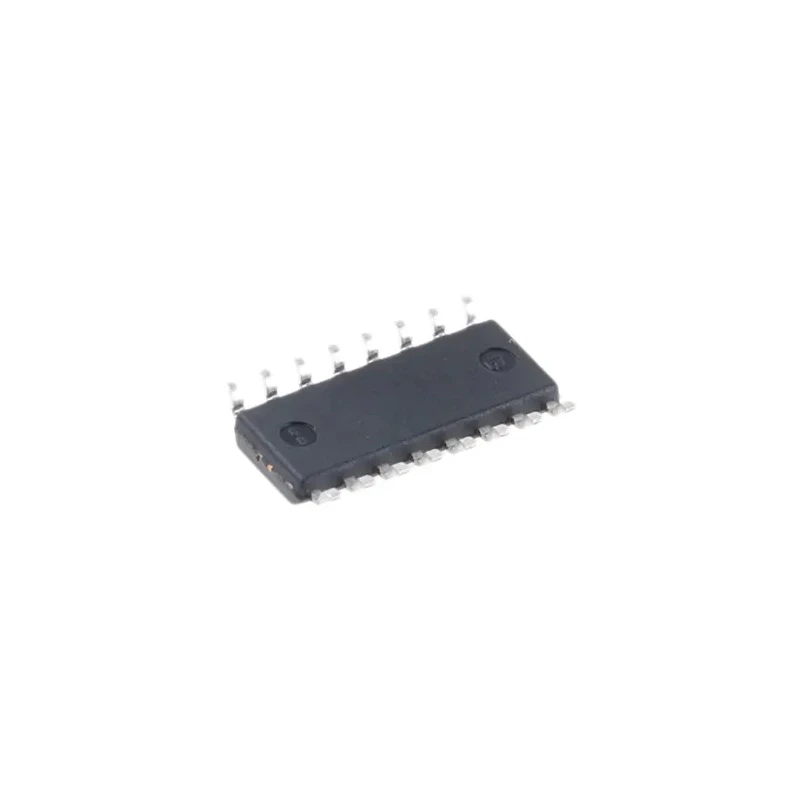

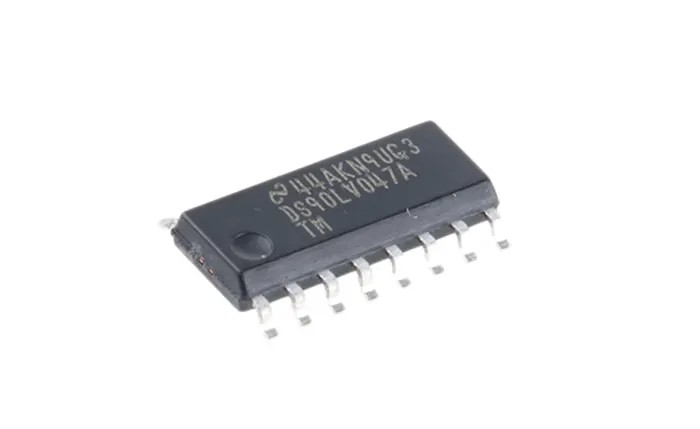

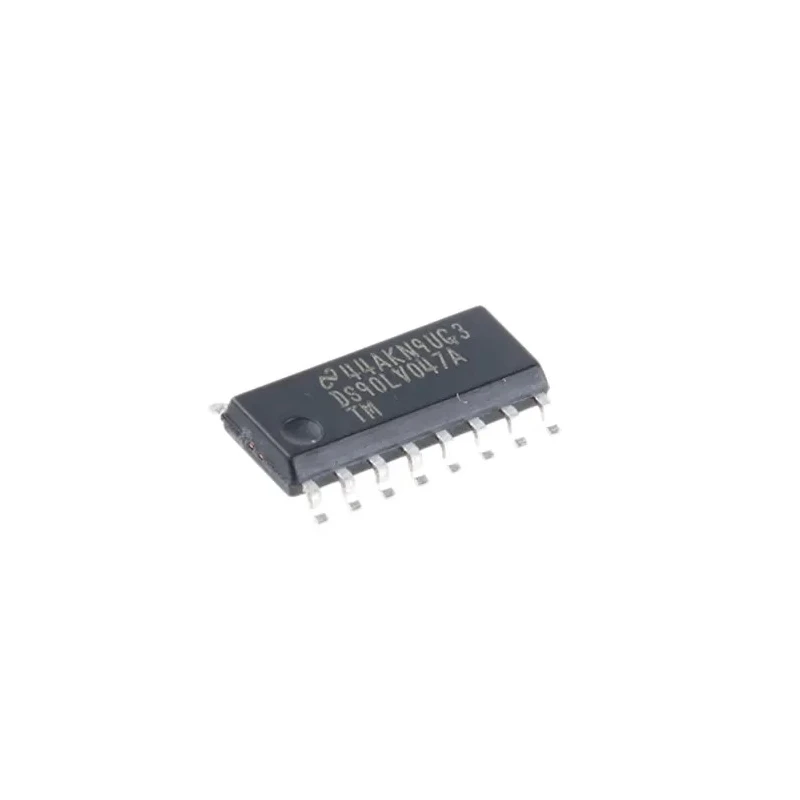

Texas Instruments Transmitter IC 4 TTL CMOS LVDS 400Mbps 16-Pin SOIC DS90LV047ATM/NOPB
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.45mm |
| Length | 9.91mm |
| Model | DS90LV047ATM/NOPB |
| Mount Type | Surface |
| Output type | LVDS |
| Series | DS90LV047A |
| Input Type | TTL, CMOS |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Sub Type | Transmitter |
| Minimum Operating Temperature | -40°C |
| Pin Count | 16 |
| Number of Elements per Chip | 4 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 3V |
| Number of Drivers | 4 |
| Number of Receivers | 4 |
| Transmission Data Rate | 400Mbps |
| DS90LV047ATM, LVDS TransceiverBrand | National Semiconductor |
Key Features
- Supports data transmission rate up to 400 Mbps for efficient signal transfer.
- Operates with supply voltages between 3 V and 3.6 V ensuring compatibility with low voltage systems.
- Equipped with 4 drivers and 4 receivers for robust signal handling.
- Designed with ESD protection to enhance device reliability and durability.
- Operates effectively in temperature ranges from -40°C to 85°C for industrial environments.
- Compact SOIC package with 16 pins and small dimensions for PCB space saving.
- Surface mount type suitable for automated assembly and high-volume manufacturing.
- Complies with DS90LV047A series standards without automotive certification.
Product Description
Texas Instruments DS90LV047ATM/NOPB is a high-performance transmitter IC designed for low voltage differential signaling (LVDS) applications. Featuring 4 TTL and CMOS input drivers with 4 LVDS output channels, this device enables efficient, high-speed data communication at rates up to 400 Mbps.
This IC is housed in a 16-pin Small Outline Integrated Circuit (SOIC) surface mount package, providing a compact footprint with dimensions of 9.91 mm in length and 1.45 mm height, ideal for space-constrained printed circuit boards.
Operating from a 3 V to 3.6 V supply voltage, the DS90LV047ATM/NOPB supports robust signal transmission with integrated ESD protection, ensuring enhanced durability in industrial and commercial electronic systems.
The device functions reliably across a wide temperature range from -40°C to +85°C, making it suitable for demanding environments, including industrial automation, communication equipment, and computer interfaces such as Firewire, SATA, and SCSI.
Designed as part of the DS90LV047A series, this transmitter IC combines high performance with flexibility, supporting multiple digital interfaces while maintaining a small footprint and ease of surface mounting.
Supports 4 drivers and 4 receivers for simultaneous data handling. Input types include TTL and CMOS, suitable for varied logic levels. Output type is LVDS differential signaling for noise immunity. Package type SOIC with 16 pins ensures reliable mounting.
Industrial operating temperature range from -40°C to 85°C. Height dimension is 1.45 mm, length dimension is 9.91 mm. Power supply voltage range between 3 V to 3.6 V. RoHS compliant with ESD protection for device longevity.
This transmitter IC is widely used in electronics manufacturing, communication systems, and embedded applications requiring reliable high-speed data transfer with low power consumption.
Explore the full range of Semiconductor LVDS Interface Ics at EnvMart for high-quality industrial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum data transmission rate of this transmitter IC is 400 Mbps.
It operates with a supply voltage range between 3 V and 3.6 V.
This model is equipped with 4 drivers and 4 receivers for robust signal handling.
The device operates effectively in temperature ranges from -40°C to +85°C.
It comes in a 16-pin Small Outline Integrated Circuit (SOIC) package.
The compatible input types for this transmitter IC are TTL and CMOS.
The height of this model is 1.45 mm and the length is 9.91 mm.
The output type is LVDS (Low Voltage Differential Signaling) for noise immunity.
Yes, this transmitter IC is RoHS compliant.
This model uses a surface mount type, suitable for automated assembly.
It belongs to the DS90LV047A series.
This transmitter IC is suitable for industrial automation, communication equipment, and computer interfaces such as Firewire, SATA, and SCSI.
