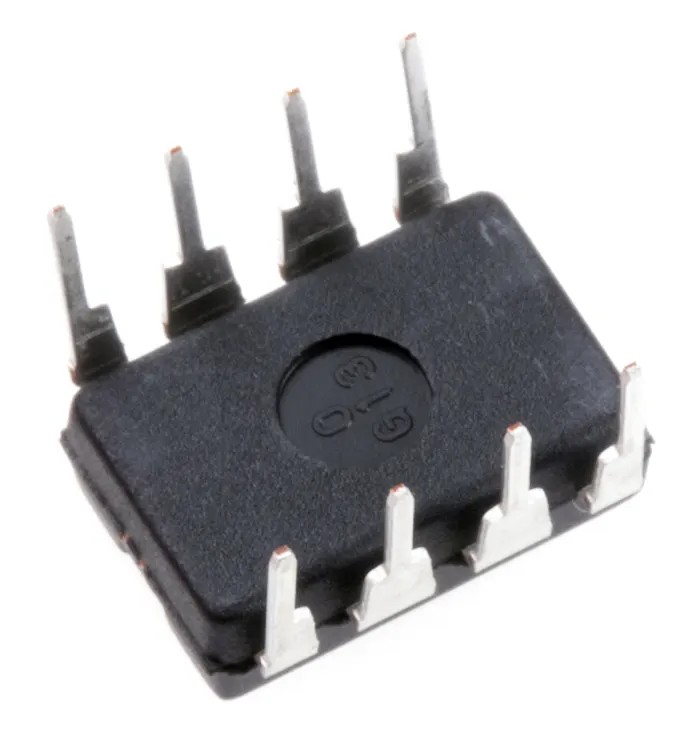

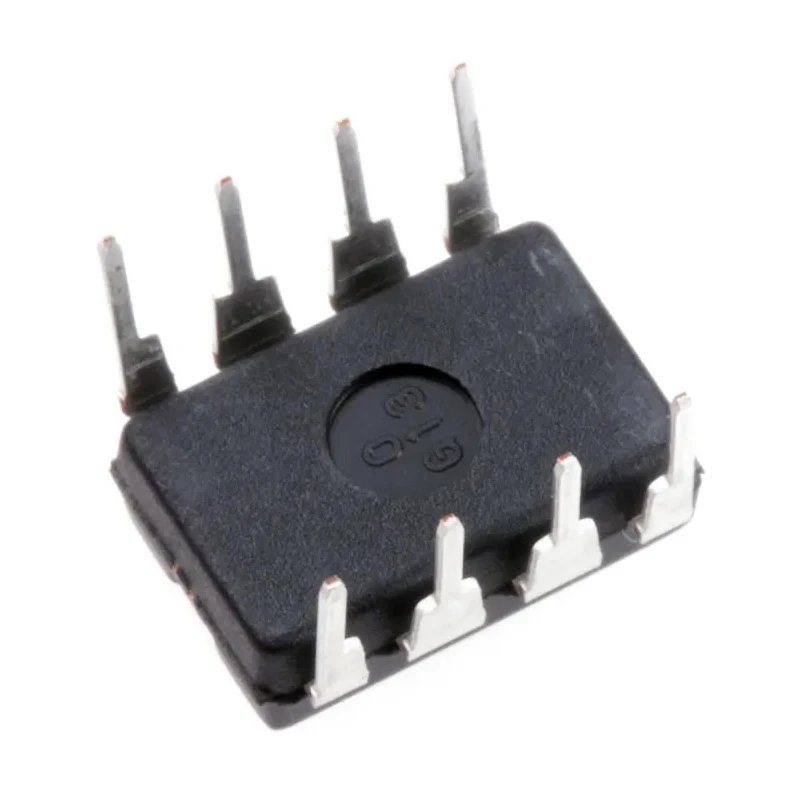

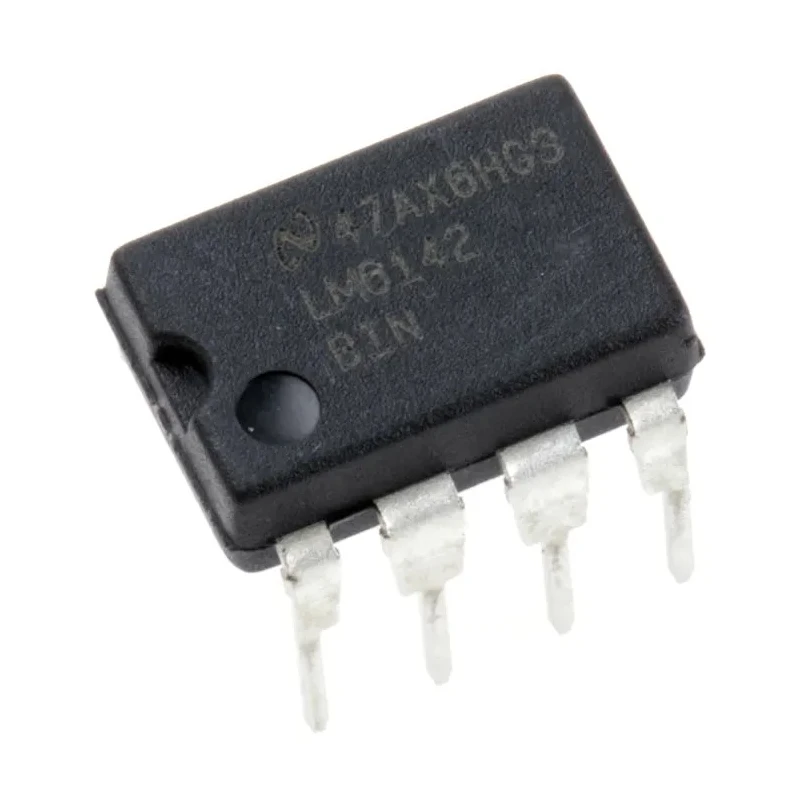

Texas Instruments Operational Amplifier 17 MHz, 2 Channels, 8-Pin MDIP, 3-24 V LM6142BIN/NOPB

Texas Instruments LM6142BIN/NOPB is a high-speed operational amplifier featuring a gain bandwidth product of 17 MHz, housed in an 8-pin MDIP package. Designed for through-hole mounting, it supports dual-channel operation that is ideal for applications requiring precise analog signal amplification with low distortion.

This operational amplifier operates across a wide supply voltage range from 3 V minimum to 24 V maximum, accommodating diverse power supply configurations. It maintains optimal performance with a low input bias current of 300 nA and an input offset voltage of 3.3 mV, contributing to its precision in signal processing tasks.

Its fast slew rate of 25 V/μs enables the amplifier to quickly respond to changes in input signal, suitable for dynamic industrial and laboratory electronics applications. The device maintains functionality within a temperature range of -40°C to 85°C, making it reliable under harsh operating conditions often encountered in manufacturing, automotive electronics, and instrumentation.

The LM6142BIN/NOPB delivers an output current of 8 mA, sufficient to drive a variety of loads commonly found in embedded systems and control circuits. Its compact form factor with dimensions of 9.27 mm length, 6.35 mm width, and 3.3 mm height allows integration into space-constrained PCBs.

Compliance with RoHS standards ensures the product meets environmental and safety regulations, making it suitable for modern industrial and commercial electronic equipment. Highly reliable through-hole mount with MDIP packaging.

Dual channel design suitable for a variety of signal amplification tasks. Wide supply voltage range from 3 V to 24 V for flexible integration. Low input bias current of 300 nA ensures precision performance. Compact dimensions with 9.27 mm length and 6.35 mm width.

Operates effectively between -40°C to 85°C environmental temperature range. Fast slew rate of 25 V/μs supports rapid signal changes. Low input offset voltage of 3.3 mV enhances accuracy. Output current capability of 8 mA for driving loads.

RoHS compliant, adhering to environmental standards.

This operational amplifier is widely applicable in industrial machines, laboratory instruments, telecommunications, automotive electronics, and various electronic testing and measurement devices. Its features support high-fidelity amplification and efficient signal conditioning necessary for precision instrumentation and control systems.
