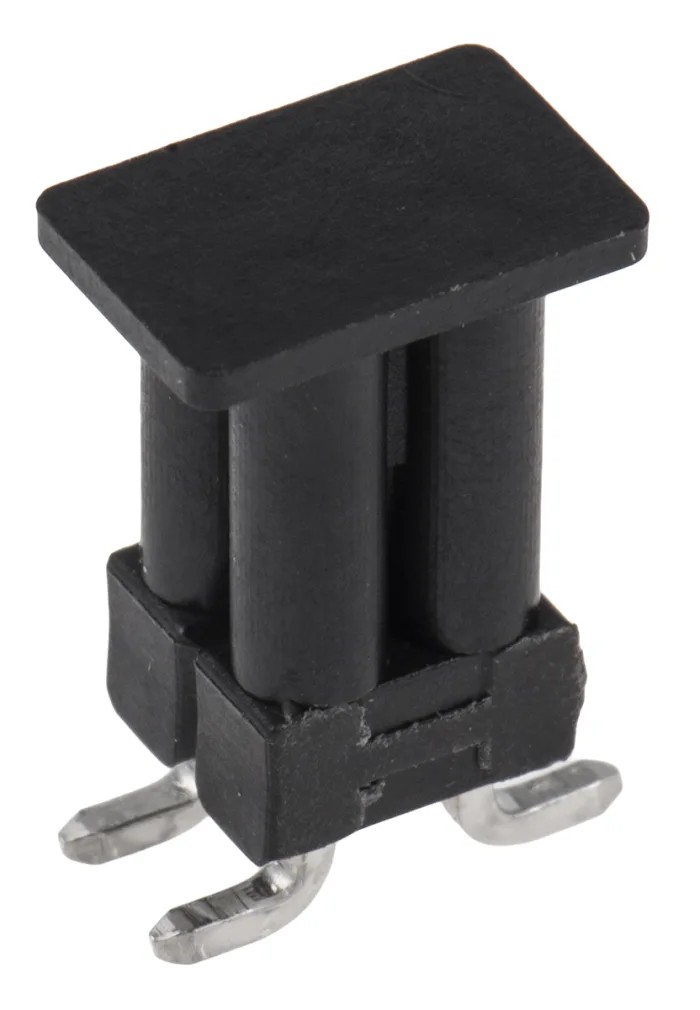

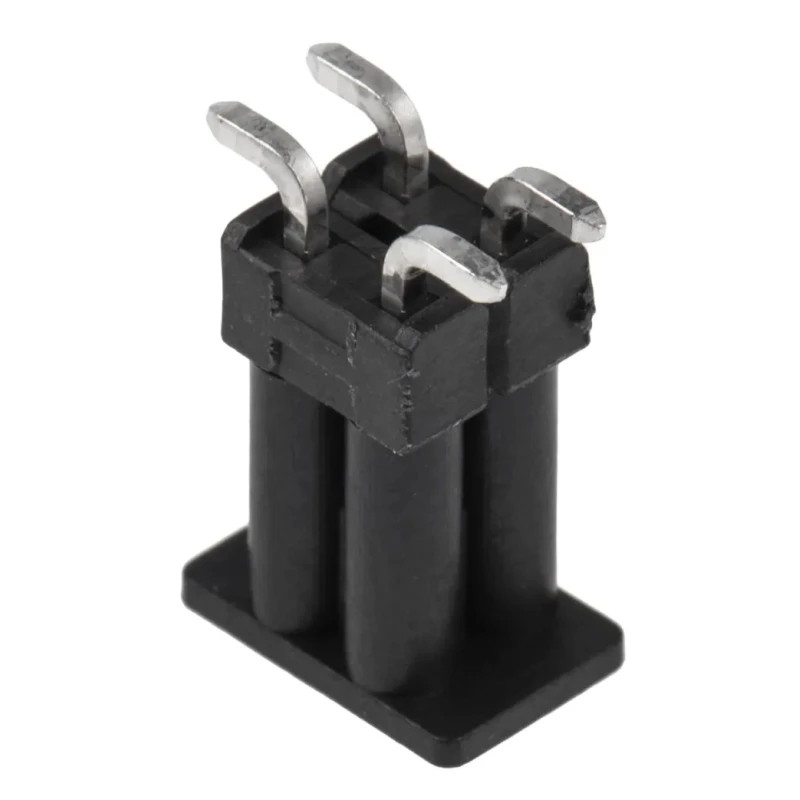

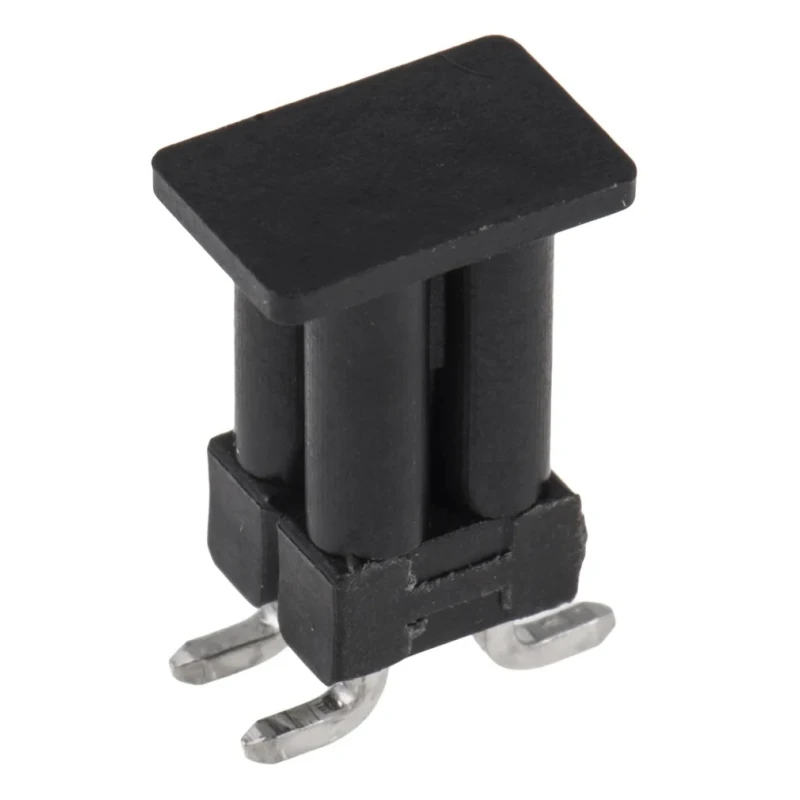

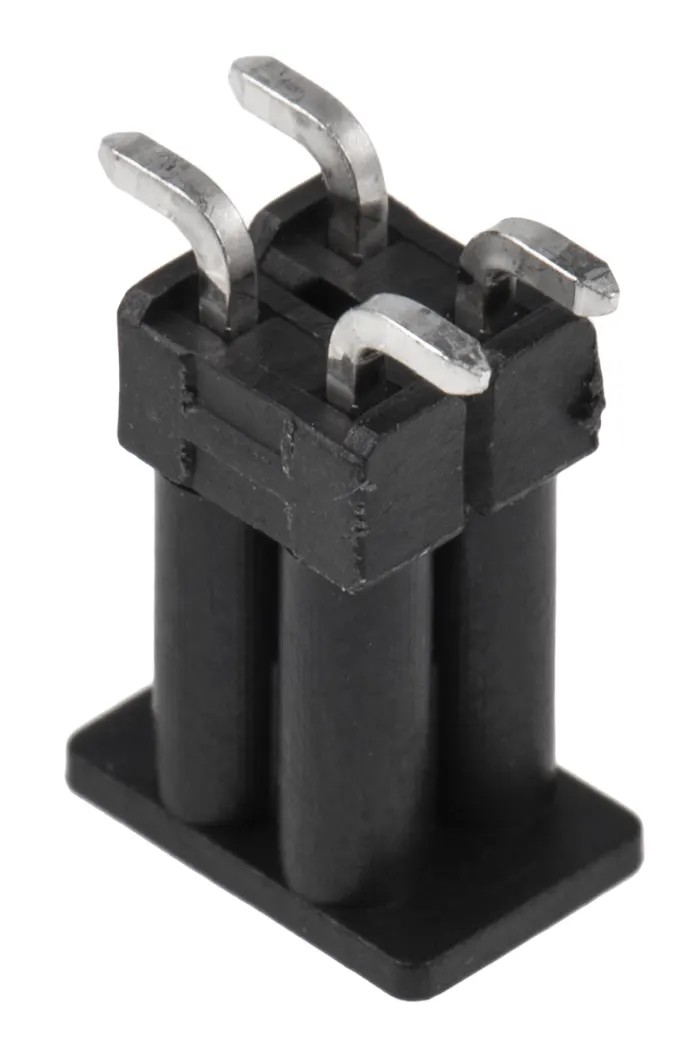

TE Connectivity AMPMODU MOD II Series Straight Surface Pin Header, 4 Contacts, 2.54 mm Pitch, 2 Row, Unshrouded 1241050-2

TE Connectivity 1241050-2 AMPMODU MOD II Series Straight Surface Pin Header with a 2.54 mm pitch and 4 male contacts arranged in 2 rows, designed for surface mount applications, provides reliable electrical connection between boards or from wire to board. This unshrouded pin header facilitates easy insertion and removal while maintaining strong mechanical stability.

Constructed using polycyclohexylenedimethylene terephthalate housing and phosphor bronze contacts plated with gold, it ensures durability, excellent conductivity, and corrosion resistance over extended use. The header supports a maximum current rating of 3A, making it suitable for various low to medium power electronic applications.

The header operates within a wide temperature range from -65°C to 105°C, accommodating demanding industrial and commercial environments such as automotive control modules, test equipment, computing devices, telecommunications, medical instruments, and storage systems.

The 5.8 mm mating pin length combined with a 2.54 mm row pitch conforms to the AMPMODU MOD II double-row standard, allowing modular sizing by breaking the header into smaller sections as required for specific PCB layouts. This modularity speeds up manufacturing and reduces labor costs by allowing multiple solder posts to be installed simultaneously.

These connectors are unshrouded to provide flexibility in design and compatibility with a wide range of mating parts. Mount type is surface mount enabling easier assembly on PCB boards.

The pin header features a double row with 2.54 mm spacing for standard PCB applications. Contacts are made of phosphor bronze with gold plating for enhanced conductivity and corrosion resistance. Unshrouded male contacts allow easy mating and installation.

Constructed from durable polycyclohexylenedimethylene terephthalate housing material ensuring mechanical stability. Rated for a maximum current of 3 amperes suitable for low to moderate power electronic circuits. Designed for surface mount installation boosting assembly efficiency on printed circuit boards.

Operating temperature range from -65°C to 105°C for diverse industrial environments. The mating pin length is 5.8 mm, allowing secure connection with mating connectors. Compatible with numerous industrial and electronic systems including automotive controls and telecommunications.

Ideal for use in industrial automation, manufacturing equipment, HVAC controls, telecommunications systems, and other commercial electronic applications. Explore more connectors and PCB Headers at EnvMart for your diverse electronic component needs.
