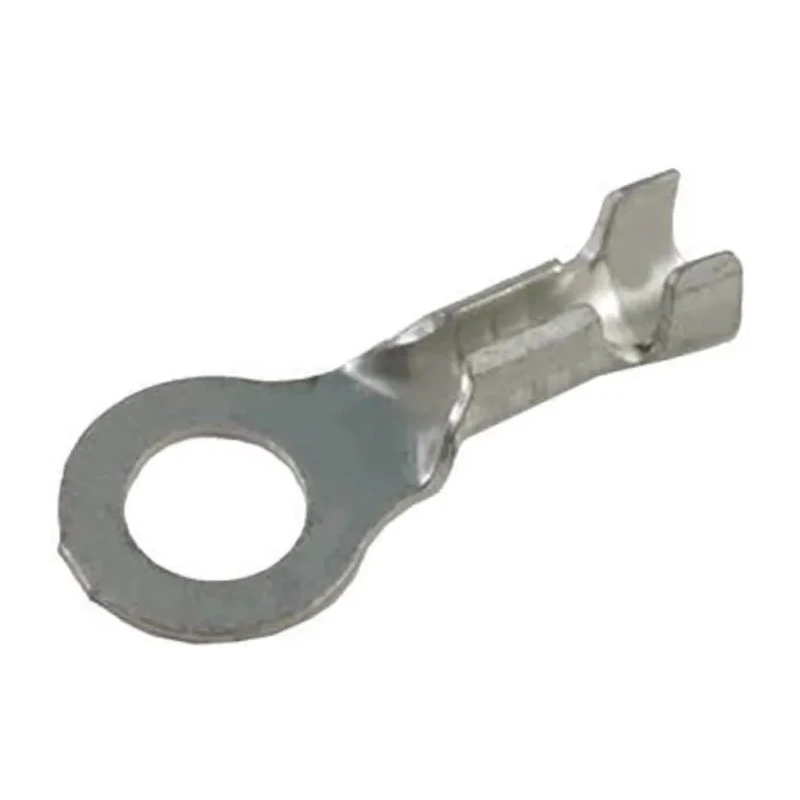

JST LRB Uninsulated Ring Terminal M4 Stud Size 20 AWG - 18 AWG Wire Size, Grey LRB-1.0T-M4
Specifications
| Country of Origin | India |
|---|---|
| Brand | JST |
| Colour | Grey |
| THICKNESS | 0.6mm |
| Model | LRB-1.0T-M4 |
| Insulation | Uninsulated |
| Overall Length | 21mm |
| Contact Material | Brass |
| Series | LRB |
| Standards/Approvals | RoHS, ANSI/ESD S20.20:2021 Electrostatic Control Standard |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 688-1414Brand: JSTManufacturers Part No.: LRB-1.0T-M4 |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.5mm² |
| Maximum Wire Size mm² | 1mm² |
| Minimum Wire Size AWG | 20AWG |
| Maximum Wire Size AWG | 18AWG |
| Outer Ring Diameter | 8mm |
| Inner Ring Diameter | 4.3mm |
| Stud Size | M4 |
| Standards/ApprovalsRoHS, ANSI/ESD S20.20 | 2021 Electrostatic Control Standard |
Key Features
- Constructed from brass with tin plating for corrosion resistance.
- Outer ring diameter is 8 mm with an inner diameter of 4.3 mm.
- Terminal thickness is 0.6 mm ensuring reliable electrical contact.
- Overall length measures 21 mm for precise fitting in connectors.
- Suitable for electrical and electronic applications requiring uninsulated ring terminals.
- Compatible with wire sizes between 20 AWG (0.5 mm²) and 18 AWG (1 mm²).
Product Description
JST LRB-1.0T-M4 uninsulated ring terminal is engineered for industrial and electronic connectivity applications requiring robust and reliable wire termination. This ring terminal supports M4 stud size connections and wire sizes ranging from 20 AWG to 18 AWG, making it an ideal choice for power connectors and electronic assemblies.
Manufactured from brass and tin-plated, it offers excellent conductivity and corrosion resistance. The grey color enhances visual identification while maintaining a professional appearance.
With an outer ring diameter of 8 mm and an inner diameter of 4.3 mm, combined with a thickness of 0.6 mm and an overall length of 21 mm, the ring terminal is designed to provide a secure connection in diverse electrical circuits and industrial applications.
The JST LRB series uninsulated ring terminals comply with RoHS standards and the ANSI/ESD S20.20:2021 Electrostatic Control Standard, ensuring environmental and electrostatic safety.
This product is widely used in manufacturing, electrical installations, automotive, and HVAC systems where dependable wire termination is critical. Constructed from brass with tin plating for corrosion resistance. Outer ring diameter is 8 mm with inner diameter of 4.3 mm for correct fit.
Supports wire sizes from 20 AWG to 18 AWG (0.5 mm² to 1 mm²). Compliant with RoHS and electrostatic discharge standards. Ideal for power connectors and wire termination in electronic and industrial settings. Overall length of 21 mm designed for ease of installation.
Uninsulated design suitable for applications requiring direct contact.
Choose JST LRB-1.0T-M4 for precise and durable ring terminal connections across various industrial and electronic contexts. Explore more Ring Terminals and power connectors in EnvMart's comprehensive catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This uninsulated ring terminal is compatible with wire sizes ranging from 20 AWG (0.5 mm²) to 18 AWG (1 mm²).
The outer ring diameter is 8 mm, while the inner ring diameter measures 4.3 mm.
The overall length of the JST LRB-1.0T-M4 ring terminal is 21 mm.
It is constructed from brass with tin plating for improved conductivity and corrosion resistance.
The thickness of this terminal is 0.6 mm, ensuring reliable electrical contact.
This ring terminal complies with RoHS standards and the ANSI/ESD S20.20:2021 Electrostatic Control Standard.
The stud size for this model is M4, making it suitable for M4 connections.
It is suitable for electrical and electronic applications, including manufacturing, automotive, and HVAC systems.
The ring terminal is grey, which enhances visual identification.
No, this model is uninsulated, making it suitable for applications requiring direct contact.
This ring terminal is manufactured in India.
The contact material of this ring terminal is brass, providing good conductivity.
