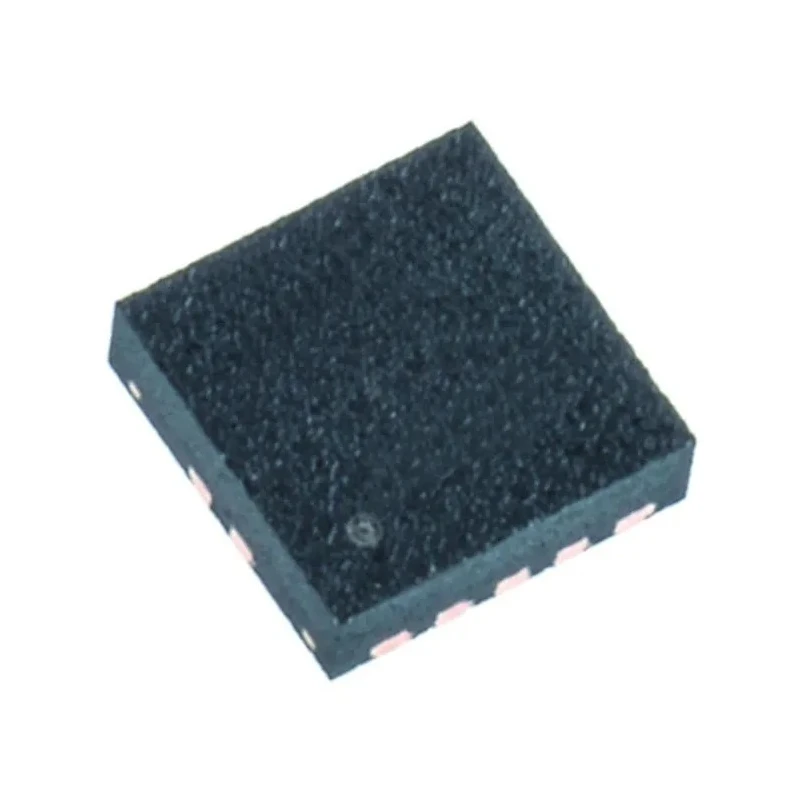

Texas Instruments 5-Channel Boost Converter, 300 mA, 3.33V Output, 1650 kHz, SON 10-Pin TPS61201DRCT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 900μm |
| Length | 3mm |
| Model | TPS61201DRCT |
| Width | 3mm |
| Mount Type | Surface |
| Output type | Fixed |
| Series | TPS6120x |
| Output Current | 300mA |
| Maximum Operating Temperature | 85°C |
| Package Type | SON |
| Load Regulation | 0.1 % |
| Minimum Operating Temperature | -40°C |
| Regulator Type | Boost |
| Switching Frequency | 1650kHz |
| Number of outputs | 5 |
| Maximum Input Voltage | 5.5V |
| Output Voltage | 3.33V |
| Quiescent Current | 55μA |
| Line Regulation | 0.1 % |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 300mV |
| Pin Count | 10 |
Key Features
- High efficiency step-up DC/DC converter with integrated switch.
- Supports a maximum input voltage of 5.5V and minimum input voltage of 300 mV.
- Low quiescent current of 55μA for energy-sensitive applications.
- Surface mount SON package with 10 pins and compact dimensions of 3mm x 3mm x 0.9mm.
- Wide operating temperature range from -40°C to 85°C.
- Line and load regulation both at 0.1% for stable output voltage.
- Complies with RoHS standards ensuring environmental compliance.
- Fixed output type with 5 outputs for multi-channel power management.
Product Description
Texas Instruments TPS61201DRCT is an advanced 5-channel boost converter designed to provide a fixed output voltage of 3.33V at a continuous output current of 300 mA. Operating at a high switching frequency of 1650 kHz, it ensures efficient power conversion in a compact SON 10-pin surface mount package measuring 3mm by 3mm with a height of 900 μm.
This boost converter supports a wide input voltage range from a minimum of 300 mV up to a maximum of 5.5 V, making it suitable for various power supply applications including battery operated and portable devices. Its low quiescent current of 55μA optimizes energy consumption, enhancing battery life in handheld and industrial electronics.
With exemplary line and load regulation of 0.1%, the TPS61201DRCT guarantees stable output voltage under varying load and input conditions. It meets RoHS environmental standards, ensuring it is compliant for green manufacturing.
The device operates within an extended temperature range from -40°C to 85°C, ideal for demanding industrial, automotive (non-automotive certified), laboratory, and manufacturing applications requiring reliable DC voltage boosting.
Its fixed output and multiple channel outputs support complex power management solutions in embedded systems and electronic instrumentation. High efficiency step-up DC/DC conversion with integrated switches. Compact SON 10-pin surface mount package for space saving designs.
Wide input voltage range allows flexible power source options. Low quiescent current for extended battery operation. Stable 3.33V output voltage with precise regulation. Designed for industrial and portable electronics voltage boosting.
RoHS compliant for environmentally responsible applications. Extended temperature operation suitable for harsh environments. Multiple outputs facilitate multi-channel power distribution. Explore more Voltage Regulators and boost converters at EnvMart for optimized power management solutions across industrial, laboratory, and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TPS61201DRCT provides a fixed output voltage of 3.33V.
This model supports a maximum input voltage of 5.5V.
The TPS61201DRCT operates at a high switching frequency of 1650 kHz.
The quiescent current is 55μA, which is optimized for energy-sensitive applications.
This model operates within an extended temperature range from -40°C to 85°C.
It features a total of 5 outputs for multi-channel power management.
This boost converter comes in a SON 10-pin surface mount package.
The dimensions are 3mm x 3mm with a height of 900μm.
The TPS61201DRCT has both line and load regulation at 0.1%.
Yes, it complies with RoHS standards, ensuring environmental compliance.
This model supports a minimum input voltage of 300 mV.
