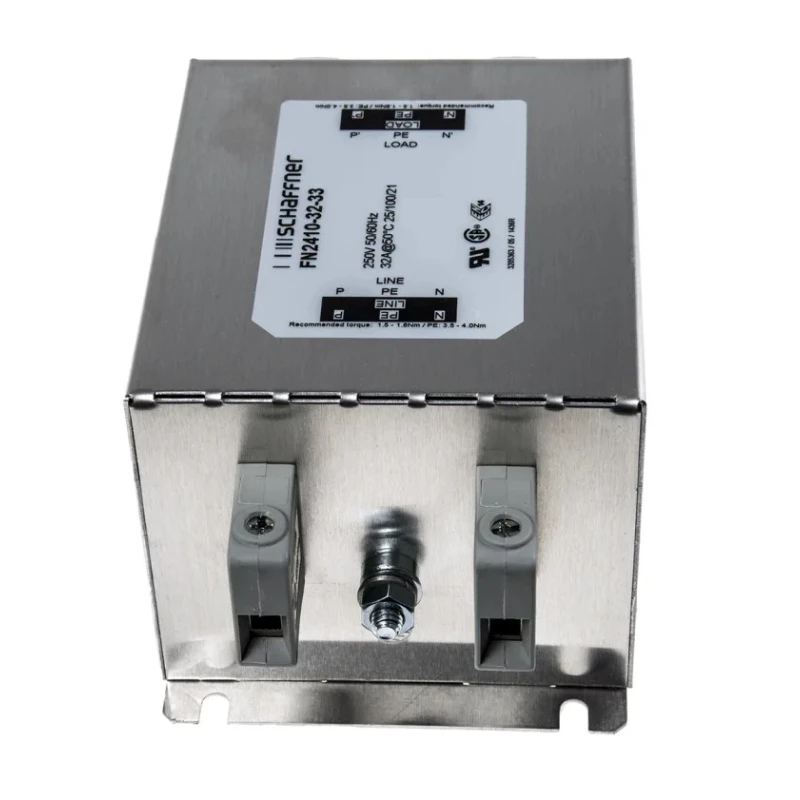

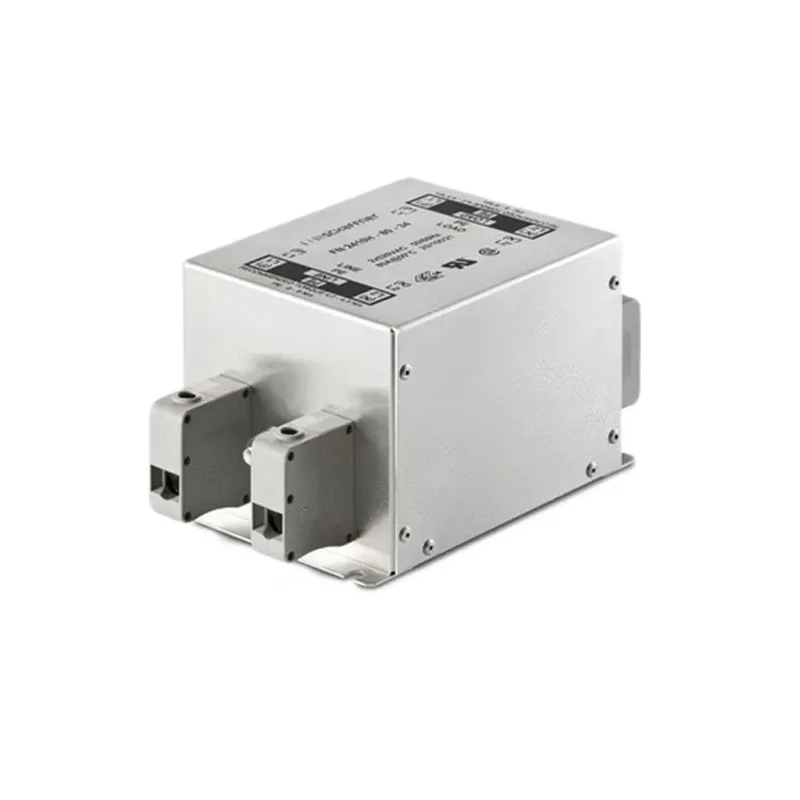

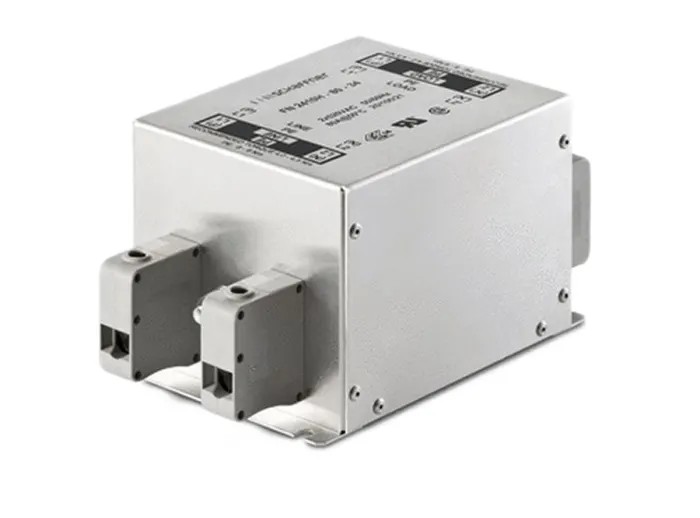

Schaffner Chassis Mount EMC Filter 32A 250V AC 400Hz Terminal Block 1 Phase FN2410
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schaffner |
| Height | 76mm |
| Length | 158mm |
| Model | FN2410 |
| Depth | 93mm |
| Mount Type | Chassis Mount |
| Operating Frequency | 400Hz |
| Series | FN2410 |
| Maximum Operating Temperature | 100°C |
| Number Of Stages | 1 |
| Capacitance | 4.7μF |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 32A |
| Number of Phases | 1 |
| Leakage Current | 3.4mA |
| Maximum Voltage | 250V ac |
| Termination Style | Terminal Block |
| Power Loss | 5.6W |
Key Features
- This EMC filter features a chassis mount type for secure installation.
- It supports a maximum current of 32A and maximum voltage of 250V AC.
- The filter operates efficiently at 400Hz frequency and has a capacitance of 4.7 μF.
- Operating temperature range from -25°C minimum to 100°C maximum ensures reliable performance.
- Power loss is rated at 5.6 Watts under full load conditions.
- Leakage current is low at 3.4mA, enhancing electrical safety.
- Suitable for EMI filtering applications requiring high interference suppression.
- Complies with EN 133 200 standards, with UL1283 and CSA22.2 No.8 1986 approvals.
Product Description
Schaffner FN2410 is a chassis mount EMC filter engineered for use in electrical systems requiring high interference suppression at 250V AC and 400Hz frequency. Designed for single-phase applications, it supports a maximum current rating of 32A, making it suitable for demanding industrial, commercial, and electronic equipment EMI filtering requirements.
This filter features a Terminal Block termination type, allowing easy and secure connection to power lines. With a capacitance of 4.7 μF and low leakage current of 3.4mA, it ensures efficient noise suppression while maintaining safety standards.
Operating temperature ranges from -25°C up to 100°C, promoting reliable function in varied environmental conditions. The compact physical dimensions of 158mm length, 93mm depth, and 76mm height enable integration into equipment with limited space.
Power loss is rated at 5.6W, indicating good energy efficiency during operation. The single-stage design is optimized for one phase systems, adhering to EN 133 200 standards with approvals from UL1283 and CSA22.2 No.8 1986 standards, ensuring compliance with major EMC regulations.
This chassis mount EMC filter is ideal for industrial machines, aerospace electronics, power supplies, and other sensitive electronic equipment requiring effective EMI mitigation at 400Hz AC frequency. Its robust construction and certifications make it a dependable choice for engineers and technicians.
This EMC filter features a chassis mount type for secure installation. It supports a maximum current of 32A and maximum voltage of 250V AC. The filter operates efficiently at 400Hz frequency and has a capacitance of 4.7 μF.
Operating temperature range from -25°C minimum to 100°C maximum ensures reliable performance. Power loss is rated at 5.6 Watts under full load conditions. Leakage current is low at 3.4mA, enhancing electrical safety. Dimensions measure 158mm length, 93mm depth, and 76mm height for compact fitting.
Suitable for EMI filtering applications requiring high interference suppression. Complies with EN 133 200 standards, with UL1283 and CSA22.2 No.8 1986 approvals. Single-stage filter configuration specifically designed for one phase circuits.
Explore EnvMart for a wide selection of Schaffner EMC filters and other high-quality electronic components designed for industrial use.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Schaffner FN2410 EMC filter supports a maximum current rating of 32A.
This model operates at a maximum voltage of 250V AC.
The FN2410 operates efficiently at a frequency of 400Hz.
The capacitance of this EMC filter is 4.7 μF.
The dimensions of the FN2410 filter are 158mm in length, 93mm in depth, and 76mm in height.
The leakage current for this EMC filter is rated at 3.4mA.
The power loss of the FN2410 under full load conditions is rated at 5.6 Watts.
The operating temperature range for this unit is from -25°C to 100°C.
This model features a Terminal Block termination style for secure connections.
The FN2410 is designed for single-phase applications.
The FN2410 complies with EN 133 200 standards and has approvals from UL1283 and CSA22.2 No.8 1986.
This EMC filter is suitable for EMI filtering applications requiring high interference suppression in industrial and electronic equipment.
