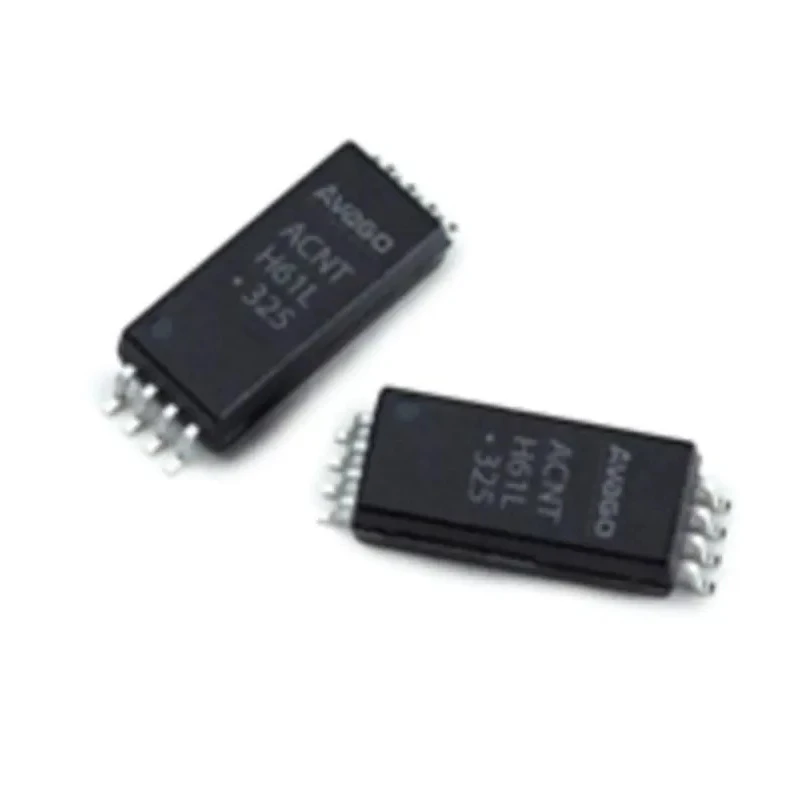

Broadcom DC Input Optocoupler Surface Mount 8-Pin SO Package ACNT-H61L-500E

Broadcom ACNT-H61L-500E DC Input Optocoupler is a low-power digital optocoupler designed for surface mounting in an 8-pin SO package. It integrates a light-emitting diode (LED) and a high gain photodetector to provide reliable optically isolated interfaces for system control and data communications.

This device features low power supply consumption of up to 2 mA and operates efficiently at input forward currents starting from 4.5 mA. It supports a wide temperature range from -40°C to 105°C, making it suitable for industrial, electronic, and communication applications requiring high reliability under harsh conditions.

The typical rise and fall times are 10 ns, enabling high-speed data transmission with a minimum data rate of 10 MBd. The device withstands a high isolation voltage of 7500 Vrms between input and output, with an internal clearance of 0.5 mm which complies with stringent creepage and clearance standards.

The ACNT-H61L-500E has a single channel and outputs a CMOS-compatible logic signal. It has a maximum forward voltage of 1.85 V on the LED input side and a maximum input current of 10 mA for proper operation. This optocoupler meets multiple safety and performance standards, including UL 1577, VIORM, CSA, and IEC/EN 60747-5-5, ensuring quality and compliance.

This component is ideal for use in industrial automation, electronic circuit isolation, data communication interfaces, power supplies, and measurement instrumentation where electrical isolation and signal transfer integrity are critical.

Low power consumption with maximum supply of 2 mA. Single channel with CMOS logic output type for digital isolation. Wide operating temperature range from -40 to 105 degrees Celsius. High isolation voltage of 7500 Vrms and 0.5 mm internal clearance.

Fast switching with typical rise and fall times of 10 nanoseconds. Compliance with UL 1577, VIORM, CSA, and IEC/EN 60747-5-5 standards for safety and performance. Surface mount SO-8 package in a 15 mm stretched footprint.

Designed for industrial, communication, and electronic system isolation applications. Explore our broad catalog in Electronics Components and Optocouplers to find complementary products for your system design needs.
