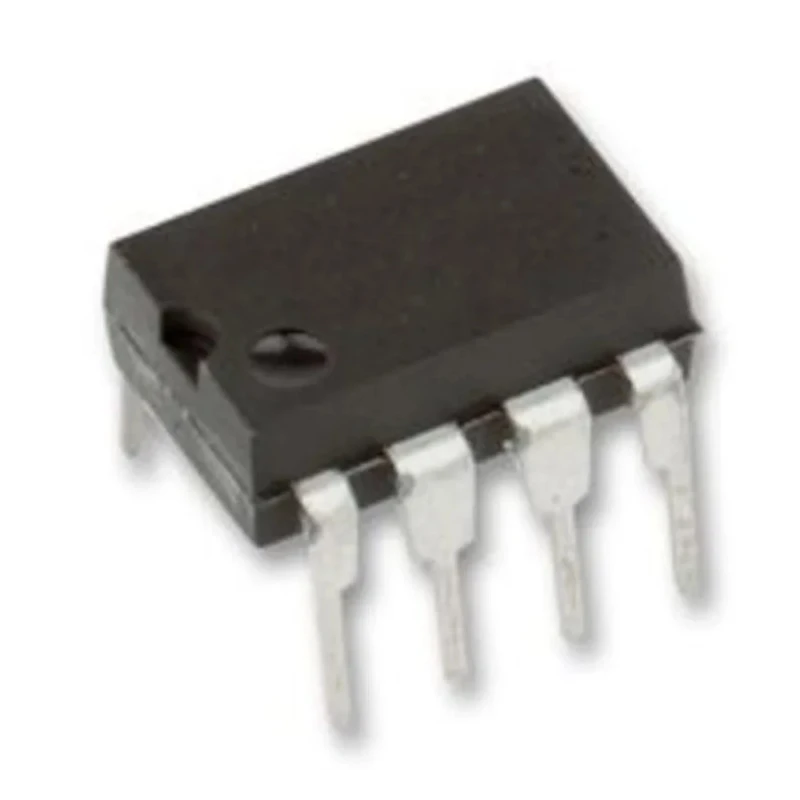

Broadcom DC Input Optocoupler Surface Mount, 8-Pin DIP, 1 Channel, 400mA ACPL-782T-500E
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Model | ACPL-782T-500E |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | ACPL-782T |
| Maximum Operating Temperature | 125°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| Maximum input current | 400mA |
| Number Of Channels | 1 |
| Maximum Forward Voltage | 5.5V |
| Number of Pins | 8 |
| Input Current Type | DC |
| Typical Rise Time | 2.96μs |
| Automotive Standard | AEC-Q100 |
Key Features
- This device features surface mount 8-pin DIP packaging for easy integration.
- It operates with a maximum forward voltage of 5.5V and supports a maximum input current of 400mA.
- The optocoupler provides a typical rise and fall time of 2.96 microseconds for fast response.
- Designed to operate reliably within -40°C to 125°C operating temperature range.
- Certified to standards including DIN EN 60747-5-2 UL CSA and IEC 60747-5-5, with automotive AEC-Q100 compliance.
- Single channel isolation amplifier suitable for motor current or battery current sensing applications.
- Packaging comes in tape and reel format, supporting manufacturing and assembly processes.
Product Description
Broadcom ACPL-782T-500E DC Input Optocoupler is a high-quality surface mount isolation amplifier designed for precision current sensing in electronic motor drives and battery management systems. Featuring an 8-pin DIP package, this single-channel device transforms sensed motor or battery currents into a proportional differential output voltage, enabling accurate current measurement through an optical isolation barrier.
Operating within a robust temperature range from -40°C up to 125°C, the ACPL-782T-500E supports demanding automotive and industrial environments. It ensures fast switching with typical rise and fall times of 2.96 microseconds, making it suitable for real-time sensing applications.
The optocoupler has a maximum forward voltage of 5.5V and can handle input currents up to 400mA, allowing effective monitoring of DC current circuits. It conforms to stringent international safety and performance standards including DIN EN 60747-5-2 UL CSA and IEC 60747-5-5, with automotive grade AEC-Q100 certification indicating suitability for automotive applications.
This product is supplied in tape and reel packaging, facilitating automated pick-and-place assembly for volume manufacturing in industrial, automotive, and power electronics sectors.
Surface mount 8-pin DIP package for compact and reliable installation. Single channel configuration for precise current isolation and sensing. Typical rise and fall time of 2.96μs for fast response signal processing. Rated to function across extreme temperature ranges (-40°C to 125°C).
Compliant with international standards DIN EN 60747-5-2 UL CSA, IEC 60747-5-5, and automotive AEC-Q100. Designed for current sensing in electronic motor drives and battery systems. Packaging in tape and reel for manufacturing automation efficiency.
This Broadcom optocoupler is ideal for use in industrial automation, automotive electronics, motor control units, battery management systems, and other high-reliability electronic measurement instruments. The isolation barrier enhances safety and signal integrity by separating high and low voltage circuits. Explore Broadcom Optocouplers and electronic components in EnvMart's catalogue for advanced industrial electronics solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input current for this model is 400mA.
It operates reliably within a temperature range of -40°C to 125°C.
The typical rise time for this optocoupler is 2.96 microseconds.
The maximum forward voltage for the ACPL-782T-500E is 5.5V.
This optocoupler is supplied in tape and reel packaging, which supports automated manufacturing processes.
It features a surface mount design, suitable for compact installations.
This model is a single channel optocoupler.
It is certified to DIN EN 60747-5-2, UL CSA, IEC 60747-5-5, and meets automotive AEC-Q100 standards.
This optocoupler is designed for current sensing in electronic motor drives and battery management systems.
This device features an 8-pin DIP configuration.
The ACPL-782T-500E belongs to the ACPL-782T series.
It supports DC input current.
