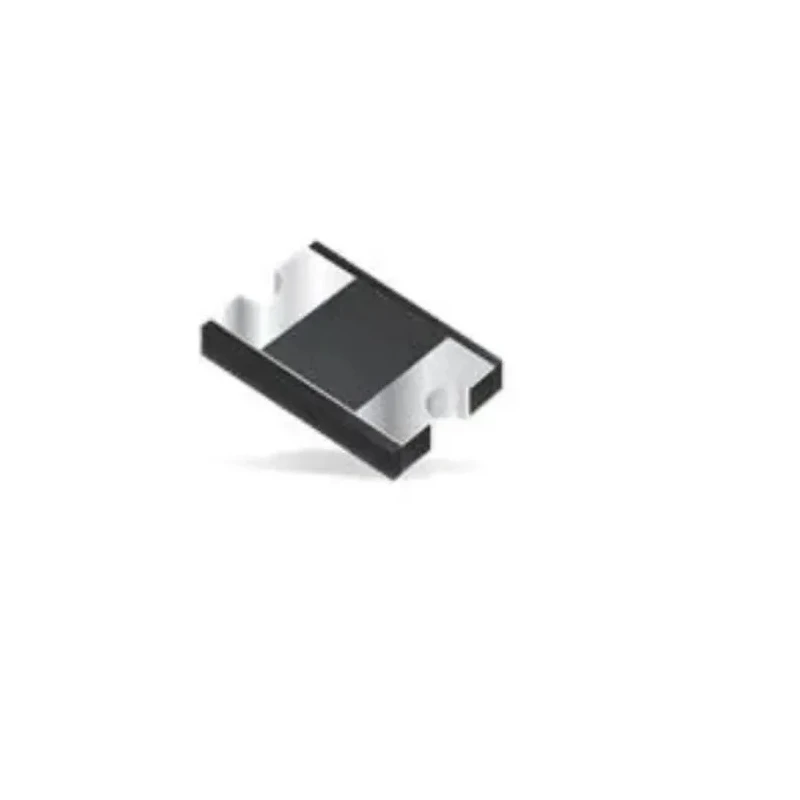

Bourns 600 V 1 A Fast Recovery Diode 2-Pin Surface Mount DO-214AC CD214A-RS1J
Specifications
| Country of Origin | India |
|---|---|
| Brand | Bourns |
| Height | 1.16mm |
| Length | 4.5mm |
| Model | CD214A-RS1J |
| Width | 2.2mm |
| Mount Type | Surface |
| Series | CD214 |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-214AC |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 600V |
| Diode Configuration | Single |
| Rectifier Type | Fast Recovery |
| Peak Reverse Current Ir | 5μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 30A |
| Maximum Forward Voltage Vf | 1.3V |
| Peak Reverse Recovery Time trr | 250ns |
Key Features
- Surface mount package type DO-214AC (SMA) ensures low profile and compact design.
- Fast recovery rectifier improves efficiency with low power loss.
- Peak reverse recovery time of 250 ns reduces switching losses.
- Operates reliably between -65°C to 175°C, suitable for automotive AEC-Q101 systems.
- Features ultra-low leakage current with peak reverse current of 5 μA.
- Maximum forward voltage drop of 1.3 V supports efficient rectification.
- Glass passivated rectifier construction enhances durability and performance.
- Halogen free and RoHS compliant, meeting environmental standards.
Product Description
The Bourns CD214A-RS1J fast recovery diode is designed for rectification applications requiring high efficiency and low power loss. It features a single diode configuration in a surface mount DO-214AC (SMA) package, with dimensions 4.5 mm in length, 2.2 mm in width, and 1.16 mm in height, enabling integration into compact circuits.
This diode is capable of handling a maximum continuous forward current of 1 ampere and a peak reverse repetitive voltage rating of 600 volts, combining high voltage tolerance with a low forward voltage drop of 1.3 volts. Its fast recovery time of 250 nanoseconds reduces switching losses, making it suitable for high-frequency industrial, automotive, and electronic applications.
The device operates reliably across a wide temperature range from -65°C up to 175°C and meets the automotive grade AEC-Q101 standard, ensuring robustness in demanding environments. The peak non-repetitive forward surge current reaches 30 A, allowing tolerance to transient current spikes.
Constructed with glass passivation, the diode provides enhanced stability and longevity with ultra-low peak reverse current leakage of 5 microamperes, supporting efficient power management. The product is halogen free and RoHS compliant, meeting modern environmental and safety regulations.
This compact diode is ideal for use in industrial power electronics, automotive circuits, power supplies, and other applications requiring reliable fast recovery diodes with high voltage and current ratings. The surface mount packaging facilitates automated assembly processes, promoting manufacturing efficiency.
Surface mount DO-214AC package ensures compact design and easy PCB integration. Maximum continuous forward current of 1 A suitable for moderate power circuits. High peak reverse voltage rating of 600 V for demanding voltage applications.
Fast recovery time of 250 ns reduces energy losses during switching operations. Wide operating temperature range from -65°C to 175°C for automotive and industrial use. Compliance with automotive standard AEC-Q101 guarantees device robustness.
Glass passivated design provides durable and stable rectifier performance. Environmentally friendly with RoHS compliance and halogen-free materials.
For professional applications in electronics manufacturing, power conversion, and automotive systems, the Bourns CD214A-RS1J diode combines technical performance and reliability. For more options, explore the Schottky Diodes & Rectifiers category on EnvMart.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this model is 1 ampere.
It has a peak reverse repetitive voltage rating of 600 volts.
The maximum forward voltage drop is 1.3 volts.
The peak reverse recovery time is 250 nanoseconds.
This model operates reliably between -65°C and 175°C.
It comes in a surface mount package type DO-214AC (SMA).
It meets the automotive standard AEC-Q101.
The peak non-repetitive forward surge current reaches 30 amperes.
This diode has a pin count of 2.
It is classified as a fast recovery rectifier.
The peak reverse current leakage is 5 microamperes.
The country of origin for this diode is India.
