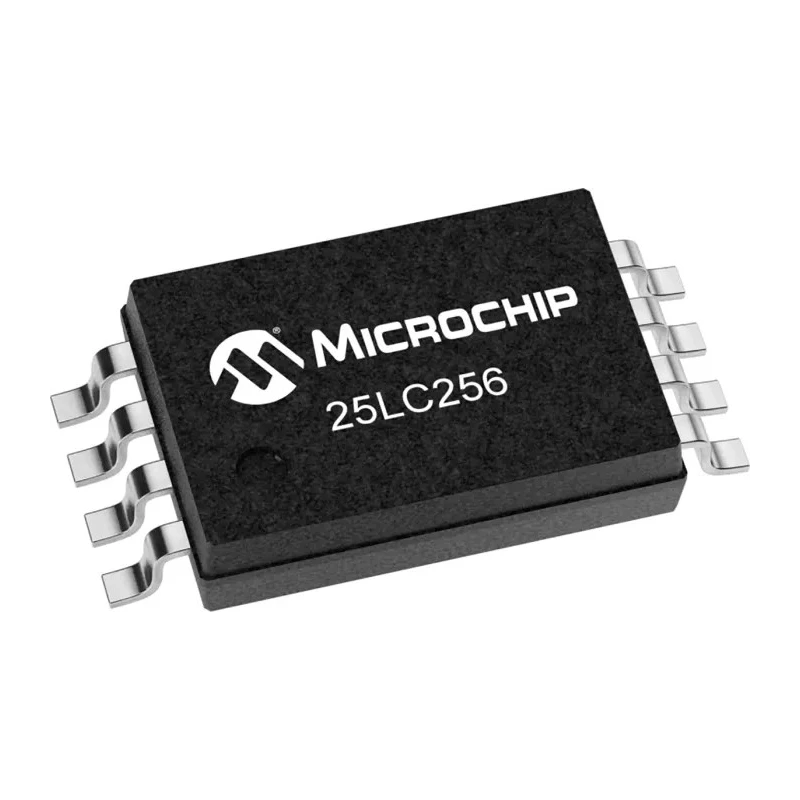

Microchip 256 kB EEPROM 50 ns 8-Pin TSSOP Serial-SPI 25LC256T-I/ST
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Length | 3.1mm |
| Model | 25LC256T-I/ST |
| Width | 6.4mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 85°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Memory size | 256kB |
| Interface Type | Serial-SPI |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 197-5382Brand: MicrochipManufacturers Part No.: 25LC256T-I/ST |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.5V |
| Supply Current | 6mA |
| Maximum Clock Frequency | 10MHz |
| Organisation | 32K x 8 Bit |
| Number of Bits per Word | 8 |
| Maximum Random Access Time | 50ns |
| Number of Words | 32k |
Key Features
- Offers a memory size of 256 kB with 32K x 8 bit organization.
- Features a maximum clock frequency of 10 MHz for fast data access.
- Designed with low-power CMOS technology for efficient power consumption.
- Supports surface mount with 8-pin TSSOP package for compact installation.
- Operates across a wide supply voltage range from 2.5 V to 5.5 V.
- Has a data retention period of up to 200 years, ensuring long-term reliability.
- Includes power-on and power-off data protection circuitry for safety.
- Complies with automotive standard AEC-Q100 for enhanced durability.
Product Description
Microchip 25LC256T-I/ST is a high-performance 256 kB serial EEPROM featuring a fast 50 ns maximum random access time and packaged in a compact 8-Pin TSSOP surface-mount form factor. This EEPROM utilizes a Serial-SPI interface, allowing efficient serial communication in embedded systems and memory applications.
The device is organized as 32K x 8 bits, supporting a maximum clock speed of 10 MHz which facilitates quick data reads and writes. Built with Low-Power CMOS technology, it consumes minimal power, making it suitable for battery-powered and energy-sensitive industrial electronics.
The EEPROM supports a reliable write cycle with a maximum write cycle time of 5 ms and includes robust power-on and power-off data protection circuitry to safeguard stored information from unexpected power interruptions.
Its data retention capability of up to 200 years ensures long-term reliability in memory storage applications. The component meets the stringent automotive industry standard AEC-Q100, providing high reliability for automotive and industrial use cases.
The device operates effectively within a supply voltage range of 2.5 V to 5.5 V and a temperature range from -40°C to +85°C, making it fit for varied environmental conditions. Measuring 3.1 mm in length and 6.4 mm in width, the compact size helps integration in space-constrained designs.
Memory size of 256 kB organized as 32K x 8 bits. Maximum clock frequency of 10 MHz for high-speed serial communication. Low-Power CMOS technology reduces power consumption. 8-Pin TSSOP package designed for surface mounting.
Wide supply voltage range from 2.5 V to 5.5 V. Data retention period of 200 years for reliable storage. Power-on and off data protection for data integrity. Complies with automotive standard AEC-Q100 for durability. Operating temperature from -40°C to +85°C supports harsh environments.
Compact dimensions: 3.1 mm length and 6.4 mm width.
This EEPROM is ideal for applications in electronics including industrial controls, automotive systems, consumer electronics, and embedded systems requiring non-volatile serial memory storage. Its industrial-grade reliability and compliance make it suited for laboratory, manufacturing, and automotive sectors.
Explore more EEPROM and semiconductor solutions in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It has a memory size of 256 kB organized as 32K x 8 bits.
The maximum clock frequency is 10 MHz, allowing for fast data access.
It operates within a supply voltage range of 2.5 V to 5.5 V.
The maximum random access time is 50 ns, enabling quick data retrieval.
It utilizes a Serial-SPI interface for efficient communication in embedded systems.
The dimensions are 3.1 mm in length and 6.4 mm in width.
It operates effectively within a temperature range from -40°C to +85°C.
It complies with the automotive standard AEC-Q100, ensuring high reliability.
This model supports surface mounting with an 8-pin TSSOP package.
The data retention period is up to 200 years, providing long-term reliability.
The supply current is 6 mA during operation.
The maximum write cycle time is 5 ms, ensuring reliable write operations.
