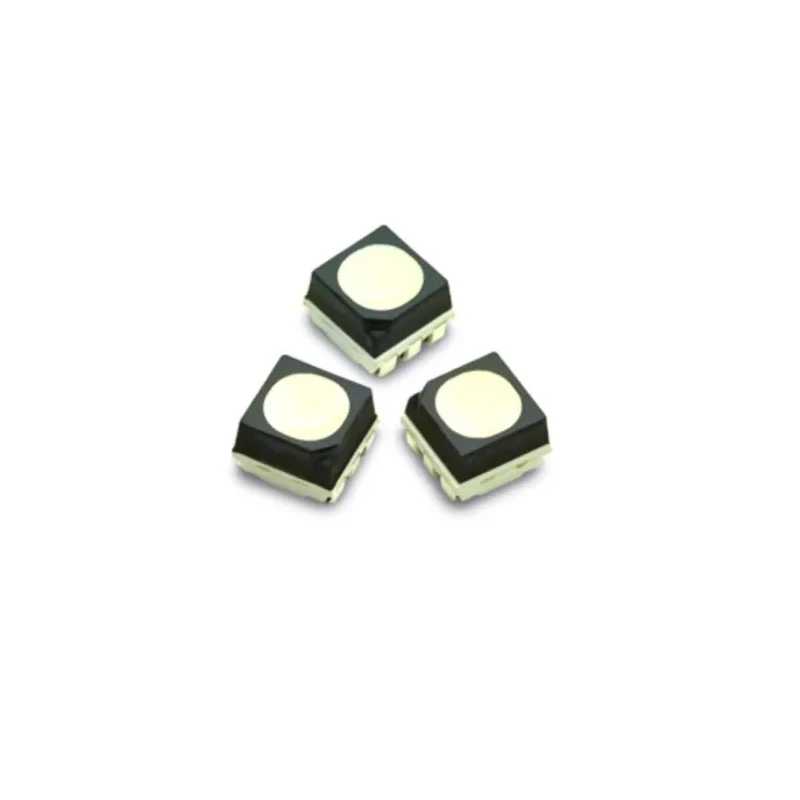

Broadcom 2.9 V RGB LED PLCC 6 Surface Mount, 3 LEDs, 110° Viewing Angle, 120mW Power ASMB-TTF0-0A20B

Broadcom ASMB-TTF0-0A20B is a surface mount RGB LED component designed for compact indicator and signalling tasks within electronic assemblies. Operating at a forward voltage of 2.9 V and able to handle a maximum current of 30 mA, this LED ensures reliable and efficient performance for a variety of applications.

The device features a diffused rectangular lens with precise dimensions of 3.7 x 3.5 mm that delivers a broad 110° viewing angle, allowing for clear visual indication. Its package is a 6-pin PLCC type optimized for surface mounting on printed circuit boards, facilitating high-volume, automated assembly via tape and reel packaging.

This LED component emits three distinct colors: blue, green, and red, with luminance intensities of 990 mcd, 2470 mcd, and 572 mcd respectively. The red emitter's spectral position is defined by a dominant wavelength of 628 nm. The maximum power dissipation at 120 mW reduces thermal load and enhances component longevity.

Certified RoHS compliant, this LED is suitable for use in various industrial, laboratory, and commercial electronic equipment. It is ideal for status indicators on industrial control panels, panel illumination in instrumentation, multicolour signalling in consumer electronics, and visual alerts in medical devices.

Though not certified for automotive standards, its robust design and packaging make it a versatile choice for many optoelectronics applications requiring high luminous output and broad visibility.

The LED supports a maximum forward current of 30 mA for reliable operation. It features a diffused rectangular lens measuring 3.7 x 3.5 mm providing a 110° viewing angle. Available in three colors: blue, green, and red with luminous intensities of 990, 2470, and 572 mcd respectively.

Power dissipation is rated up to 120 mW to minimize thermal stress. Designed for surface mount installation on PCB with a 6-pin PLCC package type. Supplied in tape and reel packaging to support automated assembly processes.

The red emitter has a dominant wavelength of 628 nm corresponding to its spectral position. The component complies with RoHS environmental standards but is not automotive certified. Ideal for status indicators in industrial controls, instrumentation displays, and consumer electronics.

Offers focused visual output suited for multicolour signalling and visual alerts. Explore the comprehensive range of Broadcom LED components and related optoelectronic devices on EnvMart to meet your industrial and commercial equipment needs.
