Vishay Standard Power UV LED 275 nm 3 mW 3-Pin Surface-Mount Ceramic Package VLMU35CL20-275-120

Free Delivery in India | Lowest Global Shipping Charges

Vishay Standard Power UV LED 275 nm 3 mW 3-Pin Surface-Mount Ceramic Package VLMU35CL20-275-120

Name: Vishay Standard Power UV LED 275 nm 3 mW 3-Pin Surface-Mount Ceramic Package VLMU35CL20-275-120
Brand: Vishay
SKU: 337289
Price: 20.22 USD
Availability: InStock



Category Electronic Components, Power & Connectors Brand Vishay Condition New

Specifications

Country of Origin	India
Brand	Vishay
Height	1.78mm
Length	3.45mm
Model	VLMU35CL20-275-120
Packaging	Tape & Reel
Width	3.45mm
Mount Type	Surface
Series	Standard Power UV LED
Number Of Leds	1
Package Type	SMT Ceramic
Standards/Approvals	RoHS
Number of Pins	3
Lens Shape	Square
Peak Wavelength	275nm
Radiant Flux	3mW
LED Material	Aluminium Gallium Nitride
UV Type	UV C

Key Features

This UV LED emits ultraviolet C light at 275 nm wavelength.
The radiant flux output is typically 3 mW providing reliable UV emission.

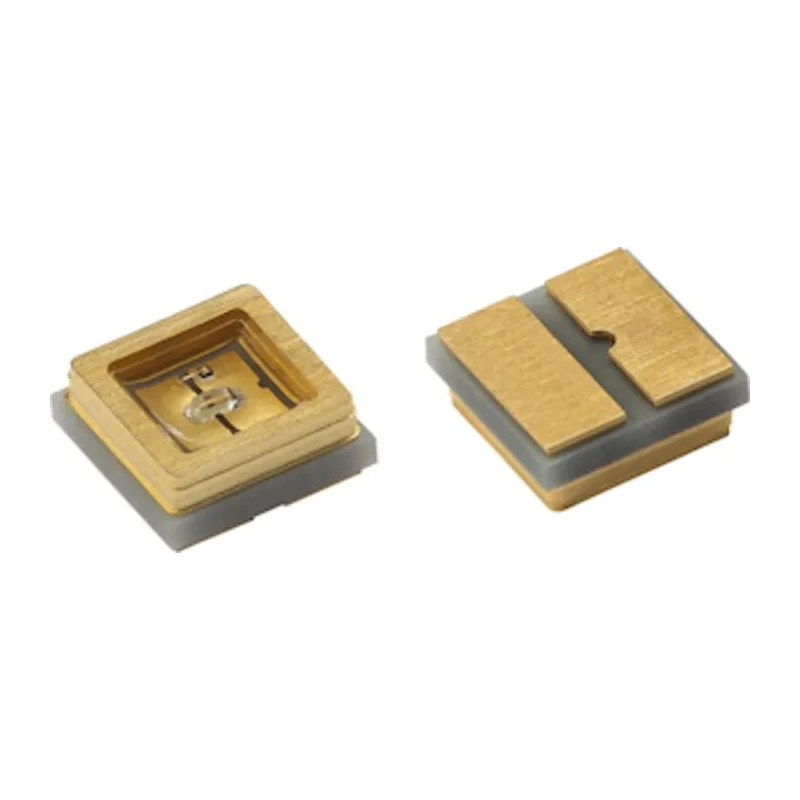

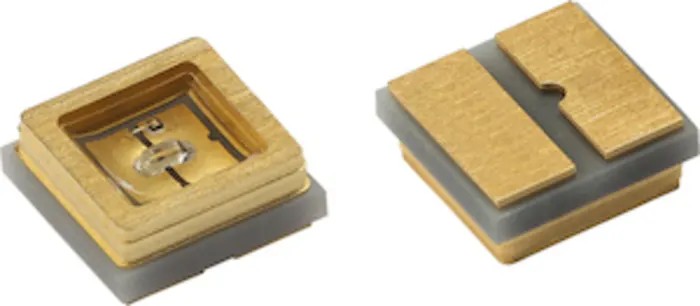

The device is housed in a compact SMT ceramic package measuring 3.45 mm by 3.45 mm with a height of 1.78 mm.
It features three pins for surface mounting on PCBs ensuring ease of integration.
Constructed with aluminium gallium nitride LED material for efficient UV light generation.
Designed for long operational lifetime with a silicone lens for durability.
Supports DC forward currents up to 30 mA and is suitable for reflow soldering processes.
Compliant with RoHS standards, ensuring environmentally responsible manufacturing.

Product Description

Vishay VLMU35CL20-275-120 Standard Power UV LED is a reliable ultraviolet C LED designed to emit deep UV light at a peak wavelength of 275 nm with a typical radiant flux of 3 mW. The LED is encapsulated in a robust surface-mount ceramic package with dimensions 3.45 mm x 3.45 mm x 1.78 mm, suitable for compact and efficient PCB integration.

Manufactured using aluminium gallium nitride, this LED delivers stable UV C output and operates safely at forward currents up to 30 mA. It utilizes a silicone lens which enhances the durability and longevity of the device, making it suitable for industrial and commercial applications that demand high reliability.

The 3-pin SMT ceramic package supports automated reflow soldering, enabling easy assembly in manufacturing environments. The Vishay UV LED complies with RoHS environmental standards and lacks automotive standard certification, indicating it is primarily intended for non-automotive uses.

This UV LED is commonly utilized in applications such as sterilization, water purification, medical device disinfection, counterfeit detection, and other semiconductor or optoelectronic equipment requiring a stable 275 nm UV radiation source.

Emits UV C radiation at 275 nm wavelength for effective disinfection. Compact SMT ceramic package for surface mounting on PCBs. Rated radiant flux of 3 mW with up to 30 mA forward current. High durability silicone lens ensures long operational life.

Aluminium gallium nitride LED material for efficient UV emission. RoHS compliant, environmentally safe design. Supports automated reflow soldering manufacturing processes. Ideal for industrial, medical, and water treatment applications.

This product is part of Vishay's standard power UV LED series, offering a specialized UV C LED solution with robust package and optical characteristics. Browse more UV LEDs at EnvMart for related component options.
