Testo Funnel Set for Use with Testo 417 Series, Air Flow Measurement, 0 to 440 m³/h, Model 0563 4170

Testo 0563 4170 Funnel Set for Use with Testo 417 Series offers precise air flow rate measurements with a measurement range of 0 to 440 m³/h, supporting both light and heavy-duty applications. This funnel set is designed to work seamlessly with the Testo 417 Series instruments to facilitate easy assembly and highly accurate flow rate measurements in various industrial and commercial environments.

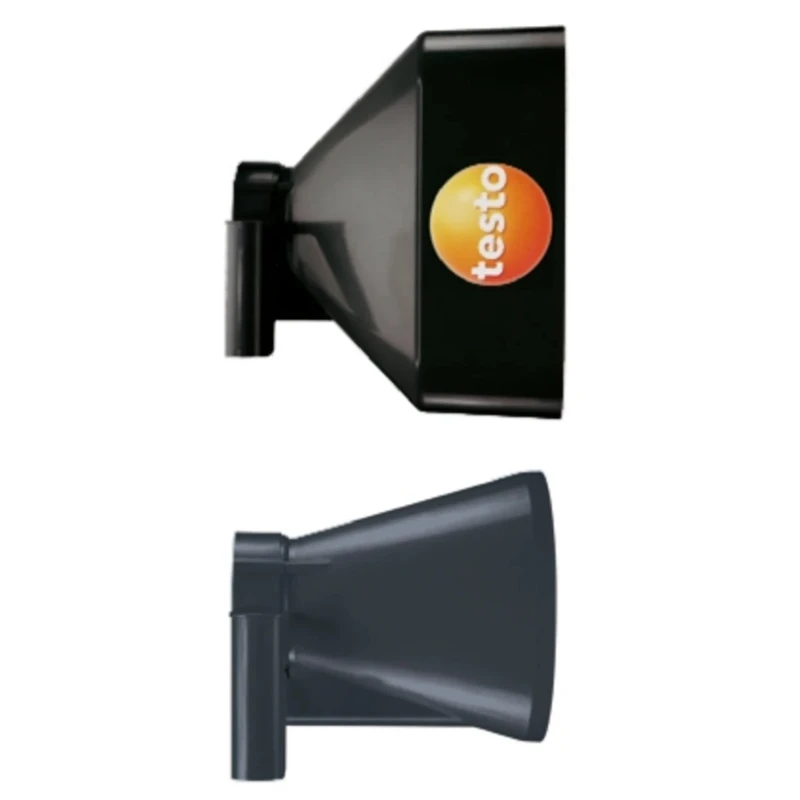

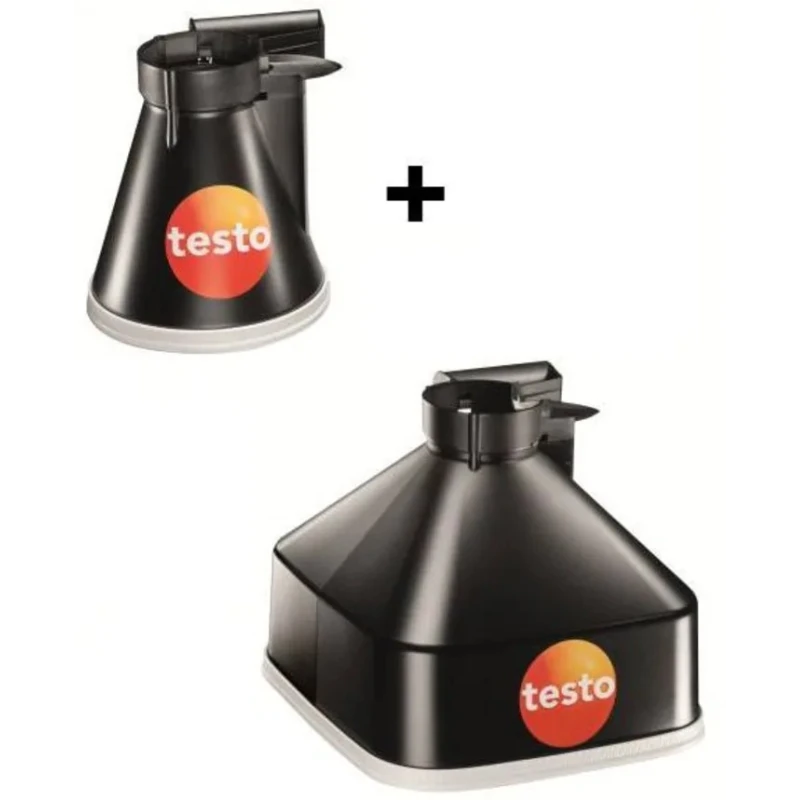

The set contains two distinct funnels: one measuring 200 x 200 mm designed for disc valve outlets, and another measuring 330 x 330 mm intended for ventilator outlets. These sizes cover a broad range of airflow outlet configurations, making the set versatile for HVAC system inspections, process and packaging industries, and commercial building applications.

The funnels feature an integrated rubber ring that ensures a secure and stable fit with the measuring instruments, reducing the potential for error during the measurement process. The device operates effectively within a temperature range of 0°C to +50°C, allowing use in demanding and varying environmental conditions.

This funnel set provides a high resolution of 0.1 m³/h for measurements up to 99.9 m³/h, supporting accurate flow readings essential in quality control and regulatory compliance tasks. It is also compatible with flow straighteners to obtain reliable readings in swirl outlet conditions.

Applications for this product include HVAC system analysis, industrial air flow monitoring, research in environmental test and measurement, and commercial air ventilation safety checks.

The set comprises a funnel for disc valves (200 x 200 mm) and a funnel for ventilators (330 x 330 mm). Designed for HVAC and industrial air flow rate measurement applications. Compatible with Testo 417 Series instruments for accuracy and ease of use.

Provides a wide measurement range of 0 to 440 m³/h. Features an integrated rubber ring for secure instrument attachment. Operates across an ambient temperature range of 0 to 50 degrees Celsius. High resolution flow measurements with 0.1 m³/h sensitivity.

Constructed in Germany to high manufacturing standards.

For professionals requiring precise air flow measurement in industrial, commercial, and laboratory environments, the Testo funnel set offers reliability and performance. Discover more measuring and testing instruments and accessories in the EnvMart catalog.
