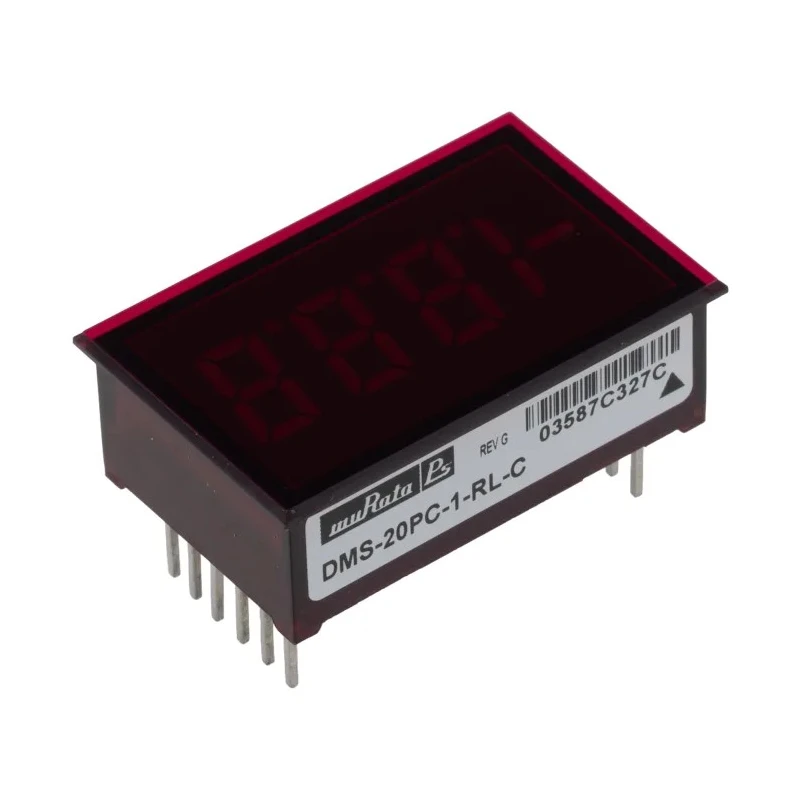

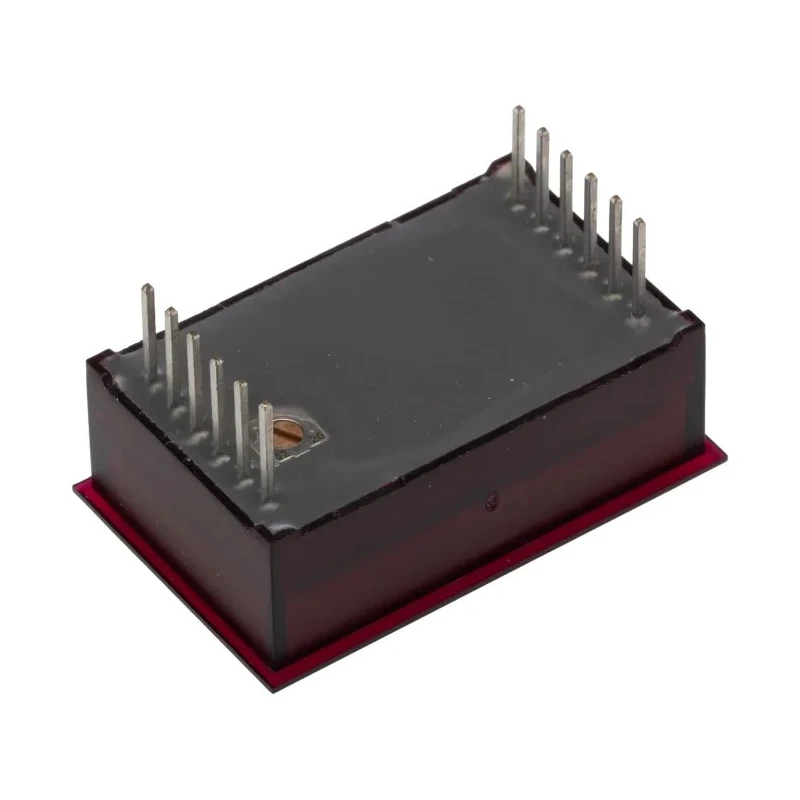

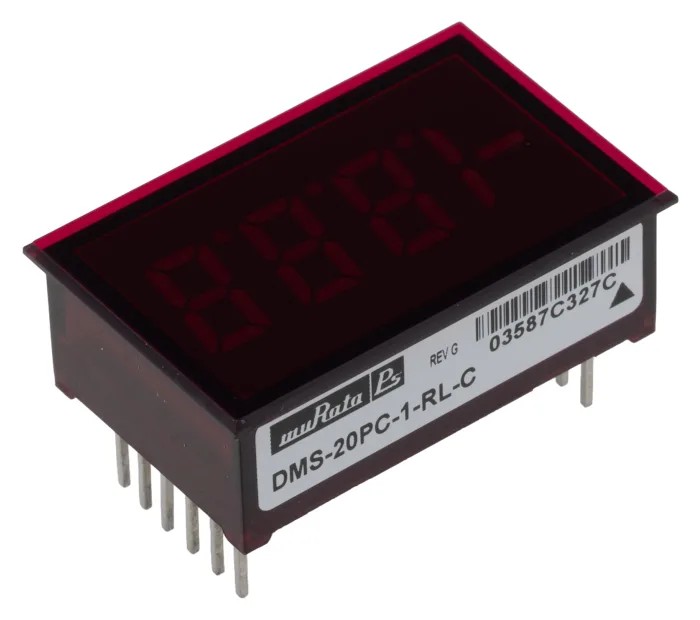

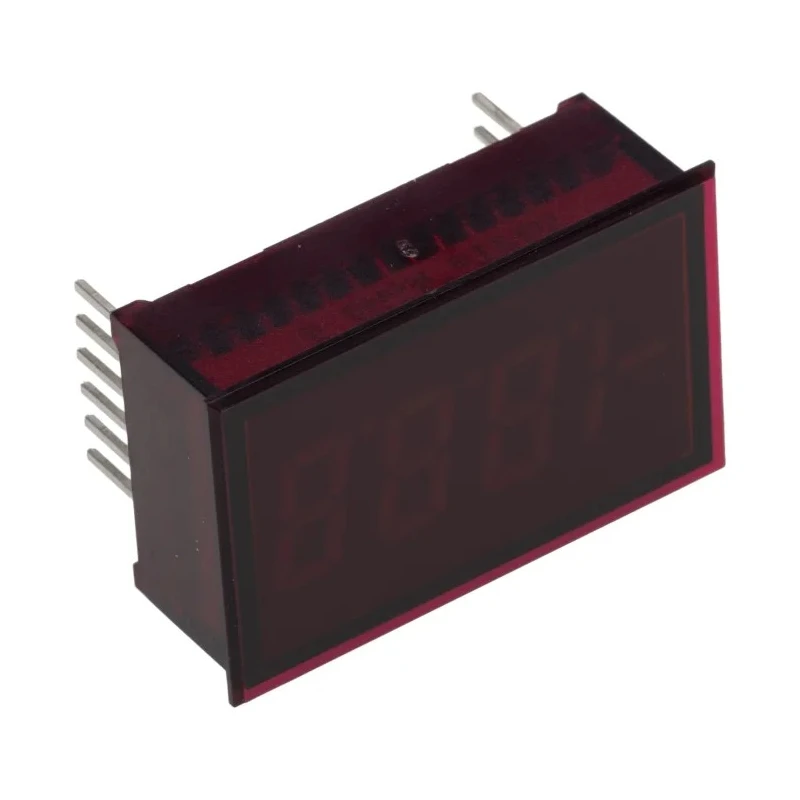

Murata Power Solutions Digital Voltmeter AC/DC, 22 mm Cutout Height, 34 mm Cutout Width, Depth 17.45 mm DMS-20PC-1-RL-C

Free Delivery in India | Lowest Global Shipping Charges

Murata Power Solutions Digital Voltmeter AC/DC, 22 mm Cutout Height, 34 mm Cutout Width, Depth 17.45 mm DMS-20PC-1-RL-C

Name: Murata Power Solutions Digital Voltmeter AC/DC, 22 mm Cutout Height, 34 mm Cutout Width, Depth 17.45 mm DMS-20PC-1-RL-C
Brand: Murata Power Solutions
SKU: 310039
Price: 82.52 USD
Availability: InStock



Category Digital Voltmeter Brand Murata Power Solutions Condition New

Specifications

Country of Origin	China
Brand	Murata Power Solutions
Dimensions	H22.4 x W35.1 x D18.47mm
Model	DMS-20PC-1-RL-C
Depth	17.45mm
Series	DMS-20PC
Maximum Operating Temperature	60°C
Current Type	AC/DC
Cutout Height	22mm
Cutout Width	34mm
Panel cut-out	34 x 22 mm
Depth behind panel	17.45 mm

Key Features

Features a 3.5 digit LED display with 9.4 mm digit height for clear readings.
Epoxy encapsulated 12-pin DIP design ensures durability and splash proof operation.
Panel cut-out size is 34 mm width by 22 mm height for easy installation.
Depth behind panel is 17.45 mm to accommodate mounting requirements.
Maximum operating temperature of 60°C supports reliable industrial use.
Includes a ‘Display Enable’ function for power-down mode to save energy.
Auto-polarity and over-range indication features enhance measurement safety and convenience.
Sealed sub-miniature design protects internal components from environmental damage.

Product Description

Murata Power Solutions DMS-20PC-1-RL-C is a Digital Voltmeter capable of measuring AC/DC voltage with high accuracy. Designed for panel or PCB mounting, it features a compact 22.4 mm height by 35.1 mm width by 18.47 mm depth sealed sub-miniature form factor.

The epoxy encapsulated 12-pin DIP design provides excellent protection in industrial environments, ensuring reliable operation in temperatures up to 60°C. Its splash proof capability can be enhanced with an optional bezel and gasket, making it suitable for harsh conditions in electrical automation and process control systems.

This voltmeter includes an LED display with 3.5 digits and a digit height of 9.4 to 10 mm, facilitating easy reading of voltage levels. The ‘Display Enable’ feature allows the user to put the device into power-down mode to conserve energy during periods of inactivity. Over-range indication and auto-polarity functions add safety and user convenience.

Ideal for industrial, laboratory, manufacturing, and electrical panel integration applications, this device supports precise voltage monitoring. Its cutout size of 34 mm width by 22 mm height and depth behind the panel of 17.45 mm ensure compatibility with standard installations.

Epoxy encapsulated 12-pin DIP, sealed sub-miniature design for durability. Splash proof with optional bezel and gasket for protection. 3.5 digit LED display with 9.4 mm digit height for visibility. Auto-polarity and over-range indication for safety.

Display Enable function enables power down mode. Compact dimensions: H22.4 x W35.1 x D18.47 mm. Panel cut-out dimension: 34 x 22 mm for easy mounting. Maximum operating temperature: 60°C suitable for industrial environments.

Works with both AC and DC voltage measurement.
