Wurth Elektronik WE-SL1 Wirewound Surface Mount Inductor with Ferrite Core, 180 μH, ±40% Tolerance, 300 mA DC 744212181

Wurth Elektronik 744212181 WE-SL1 Wirewound Surface Mount Inductor features a ferrite core with sectional winding construction offering 180 μH inductance with a tolerance of ±40%. Rated for a maximum DC current of 300 mA and a maximum self-resonant frequency of 100 kHz.

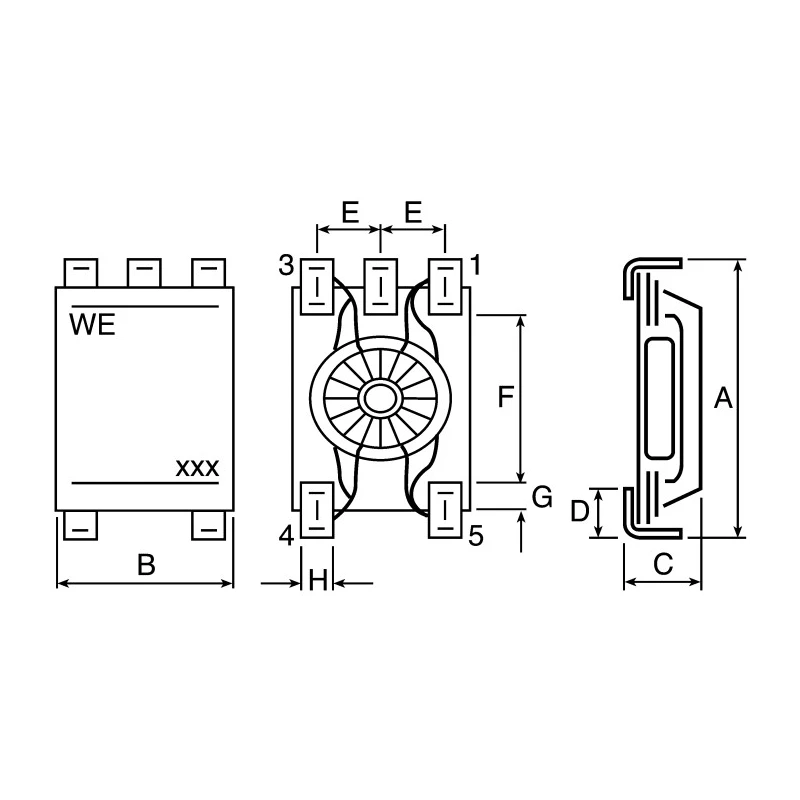

This inductor is specifically designed for surface mount technology applications, coming in a compact size with length 6.5 mm, height 1.65 mm, and depth 3.6 mm. It is packaged in tape and reel format to support automated assembly processes.

Compliant with automotive standard AEC-Q200, the component ensures robust and reliable operation in automotive and industrial environments. It operates within a broad temperature range from -40°C to 105°C, making it versatile for various electronic applications.

The device offers a maximum DC resistance of 250 mΩ and utilizes a Lötpad termination style tailored for precise soldering. Safety standards UL-94 V-0 and RoHS certification confirm its adherence to environmental and fire safety guidelines.

Common applications include use in CAN bus systems, USB, FireWire, and other data and power lines where low stray inductance and noise suppression are critical. Ferrite core with sectional winding construction ensures effective electromagnetic interference suppression.

Compact surface mount size suitable for high-density PCB layouts. Automotive rated for reliability under harsh conditions. Tape and reel packaging supports automated PCB assembly processes. Wide operating temperature range enhances versatility.

Conforms to UL-94 V-0 and RoHS standards. Optimized for data communication and power line filtering applications. Explore further Wurth Elektronik inductors and electronic components category on EnvMart for reliable industrial and commercial solutions.
