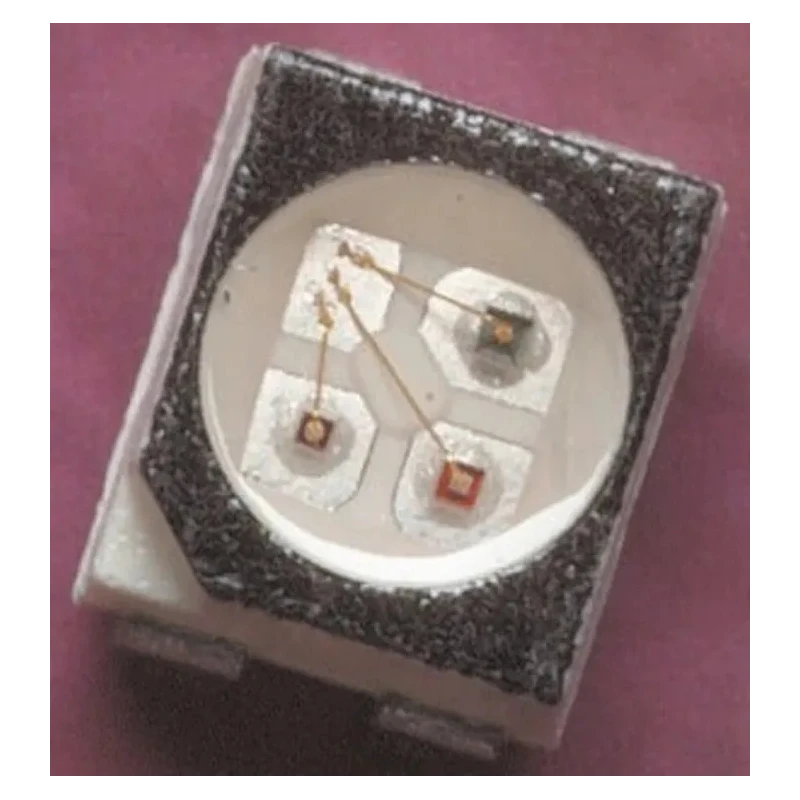

Broadcom 2.2 V Green, Red LED PLCC 4 Surface Mount Bi-Colour Indicator HSMF-A203-A00J1

Broadcom HSMF-A203-A00J1 is a bi-colour LED indicator featuring green and red LEDs in a compact PLCC 4 surface mount package with dimensions 3.2 x 2.8 x 1.8 mm. Designed for reliable, high-brightness applications, it operates at a forward voltage of 2.2 V and supports a maximum forward current of 20 mA. Its wide 120° viewing angle and clear round lens with a luminosity of 8 mcd ensure excellent visibility in various environments.

This LED is optimized using advanced AllnGaP and InGaN die technology, with an enhanced silicone resin encapsulant to ensure durability and performance. Its flat top surface facilitates easy coupling with light pipes, making it ideal for backlighting in automotive interiors, office equipment, industrial machines, and home appliances.

Packaged on Tape & Reel, the HSMF-A203-A00J1 supports automated mounting and assembly processes. It has a low power dissipation limit of 52 mW, balancing brightness with energy efficiency. The device features 2 LEDs integrated into a 4-pin PLCC package, providing a simple interface for bi-colour LED indications.

This product does not have specific automotive standards but is designed for broad commercial and industrial use cases requiring robust, surface-mount bi-colour LED indicators. The LED has a forward voltage of 2.2 V at 20 mA.

Package dimensions are 3.2 x 2.8 x 1.8 mm in PLCC 4 format. The device includes two LEDs with a viewing angle of 120 degrees. High reliability is ensured by enhanced silicone resin and advanced semiconductor die materials.

Applications include automotive interior lighting, office equipment, industrial, and home appliances. Easy compatibility with light pipes and indicator panels. Packaged in Tape & Reel for efficient manufacturing processes.

2 LEDs, 4 pins surface mount design for simple integration. Explore wide options in LED components at EnvMart for industrial, automotive, and commercial applications.
