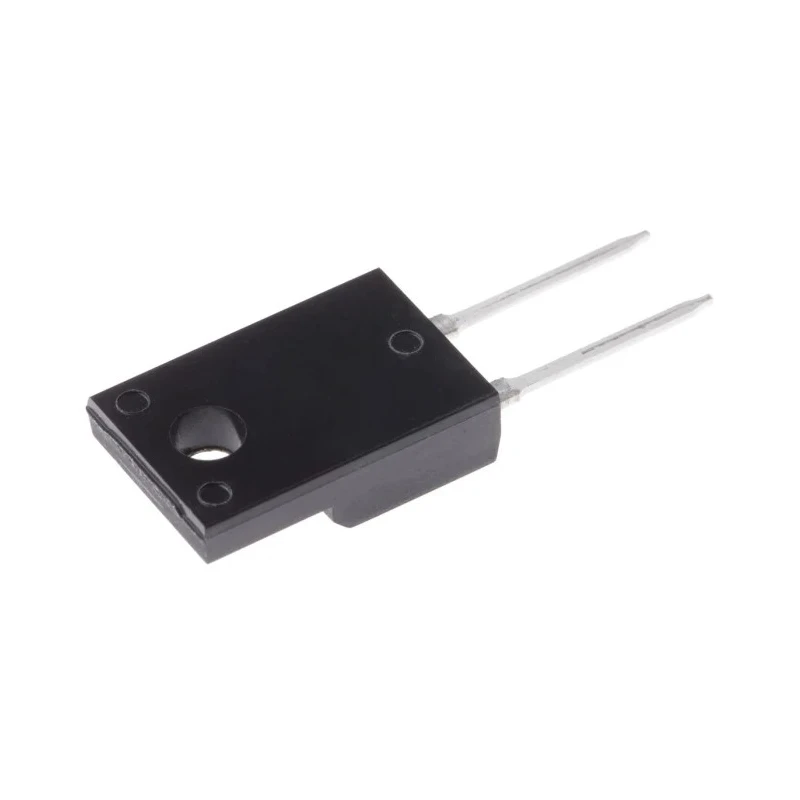

STMicroelectronics 600 V 8 A Single Diode Switching 2-Pin Through Hole TO-220 STTH8R06FP

STMicroelectronics STTH8R06FP is a high-performance 600 V, 8 A single switching diode designed for use in electronic circuits requiring fast recovery and efficient current handling. It comes in a through-hole TO-220 package with 2 pins, making it suitable for through-hole PCB mounting and power applications.

This diode supports a maximum continuous forward current of 8 amperes and a peak forward surge current of up to 80 amperes, ensuring robust operation in demanding electrical environments. The maximum forward voltage drop is 2.9 volts, which minimizes power loss during conduction.

It features a peak reverse repetitive voltage rating of 600 volts and a very fast reverse recovery time of 45 nanoseconds, offering excellent performance in switching power supplies, converters, and other high-speed circuits. The diode's peak reverse current is only 30 microamperes, reducing leakage and improving efficiency.

Operating temperature for this component ranges from -65°C to 175°C, providing broad environmental range suitability for industrial, commercial, and laboratory electronics applications. The compact TO-220 package dimensions are 10.4 mm length, 4.6 mm width, 9.3 mm height, with a pin diameter of 3 mm, facilitating easy mounting and heat dissipation.

This component is RoHS compliant, ensuring reduced environmental impact and compatibility with modern manufacturing standards. It is not suitable for automotive standard use. This diode has a maximum continuous forward current of 8 amperes.

It supports a peak reverse repetitive voltage of 600 volts. The device features a peak forward surge current of 80 amperes. Its maximum forward voltage drop is 2.9 volts ensuring efficient switching. The peak reverse recovery time is 45 nanoseconds for fast switching performance.

Operating temperature ranges from -65°C to a maximum of 175°C. The diode provides a peak reverse current of 30 microamperes for low leakage. Mounting is through-hole style with a TO-220 package shape for easy PCB integration.

Dimensions include a length of 10.4 mm, width of 4.6 mm, height of 9.3 mm, and pin diameter of 3 mm. The component complies with RoHS standards for environmental safety.

This diode is widely used for industrial electronics, power management, manufacturing equipment, and other applications requiring reliable, efficient semiconductor switching components. Explore other semiconductors and diode options in our Electronics & Electricals category on EnvMart for additional solutions.
