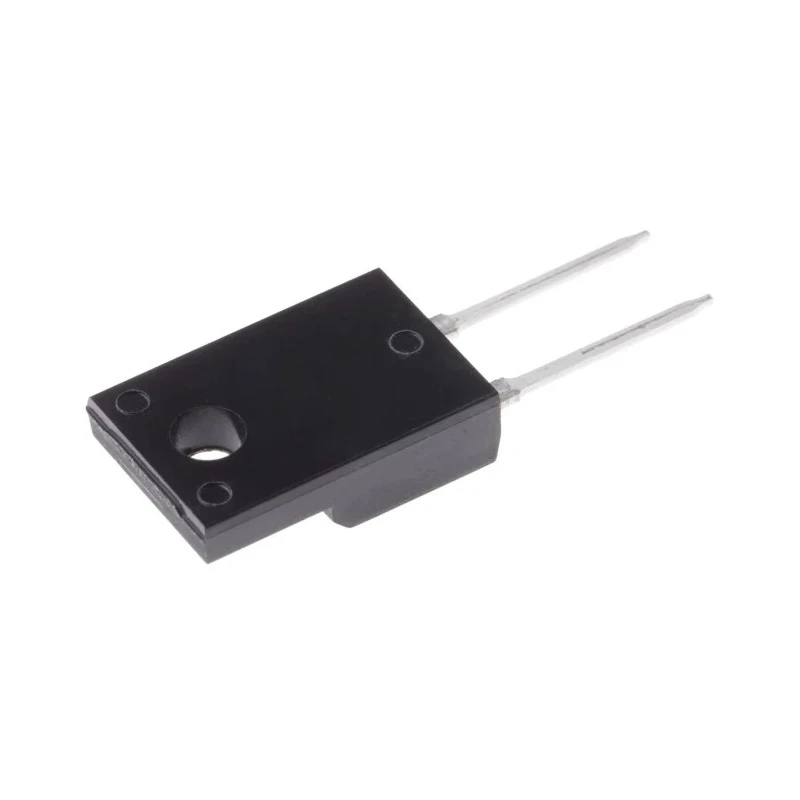

STMicroelectronics 600 V 8 A Switching Diode Through Hole TO-220 Package STTH8L06FP
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 3mm |
| Brand | STMicroelectronics |
| Height | 9.3mm |
| Length | 10.4mm |
| Model | STTH8L06FP |
| Width | 4.6mm |
| Mount Type | Through Hole |
| Series | STTH8 |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-220 |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 8A |
| Peak Reverse Repetitive Voltage Vrrm | 600V |
| Diode Configuration | Single |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 8μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 120A |
| Maximum Forward Voltage Vf | 1.3V |
| Peak Reverse Recovery Time trr | 105ns |
Key Features
- Equipped with a 2-pin TO-220 package for through hole mounting.
- Capable of handling peak non-repetitive forward surge current up to 120 A.
- Maximum forward voltage drop of 1.3 V ensures efficient low loss operation.
- Peak reverse recovery time of 105 ns supports fast switching applications.
- Operates reliably between -40°C to 175°C maximum operating temperature.
- Compact dimensions with length 10.4 mm, width 4.6 mm, height 9.3 mm, and diameter 3 mm.
- Compliant with RoHS standards for environmental safety.
- Ideal for industrial, electronic, and power management applications requiring robust rectifier switching diodes.
Product Description
STMicroelectronics STTH8L06FP is a high-performance single switching diode designed for through hole mounting in a TO-220 package. It supports a maximum continuous forward current of 8 A and can withstand a peak reverse repetitive voltage of 600 V, making it suitable for demanding power electronic circuits.
The diode features a low maximum forward voltage of 1.3 V which enables efficient conduction with minimal power loss. Its fast switching capability is highlighted by a peak reverse recovery time of 105 ns, allowing use in fast switching rectification and power conversion applications.
Engineered for reliability, it supports a high peak non-repetitive forward surge current of 120 A and operates safely within a temperature range of -40°C to a maximum of 175°C. The compact TO-220 package dimensions (length 10.4 mm, width 4.6 mm, height 9.3 mm, diameter 3 mm) facilitate easy mounting and integration into industrial and electronic equipment.
The diode is RoHS compliant, adhering to environmental standards for hazardous substance restrictions. Its single diode configuration and 2-pin layout allow straightforward incorporation into various circuits.
This component is ideal for industrial automation, power supplies, electronic instrumentation, and manufacturing equipment where robust and reliable switching diode performance is required.
Equipped with a 2-pin TO-220 package for through hole mounting. Capable of handling peak non-repetitive forward surge current up to 120 A. Maximum forward voltage drop of 1.3 V ensures efficient operation. Fast peak reverse recovery time of 105 ns suitable for switching applications.
Operates reliably at temperatures ranging from -40°C to 175°C. Compact dimensions ensure easy device integration. RoHS compliant for environmental safety standards. Designed for use in industrial and electronic power applications.
Explore a wide range of Semiconductor Diodes and industrial electronic components at EnvMart for your engineering and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this model is 8 A.
It can withstand a peak reverse repetitive voltage of 600 V.
The maximum forward voltage drop is 1.3 V, ensuring efficient low loss operation.
The peak reverse recovery time is 105 ns, making it suitable for fast switching applications.
The dimensions of the TO-220 package are 10.4 mm in length, 4.6 mm in width, and 9.3 mm in height, with a diameter of 3 mm.
It operates reliably within a temperature range of -40°C to 175°C.
This model uses a through hole mounting type.
It is capable of handling a peak non-repetitive forward surge current of up to 120 A.
Yes, it is compliant with RoHS standards for environmental safety.
The diode configuration is single, with a 2-pin layout for easy integration.
It is ideal for industrial automation, power supplies, electronic instrumentation, and manufacturing equipment.
The peak reverse current is specified at 8 μA.
