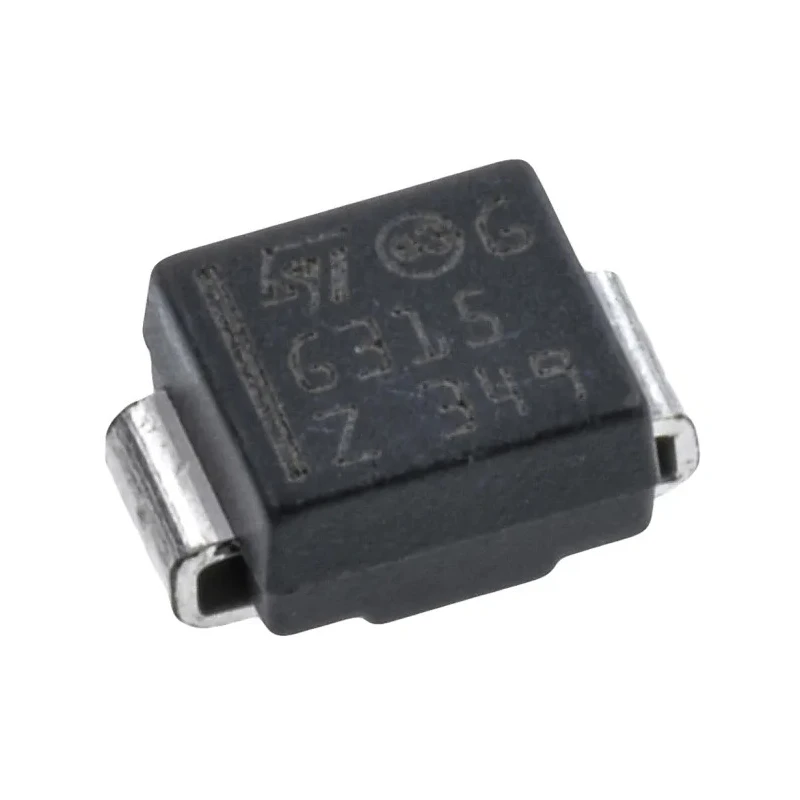

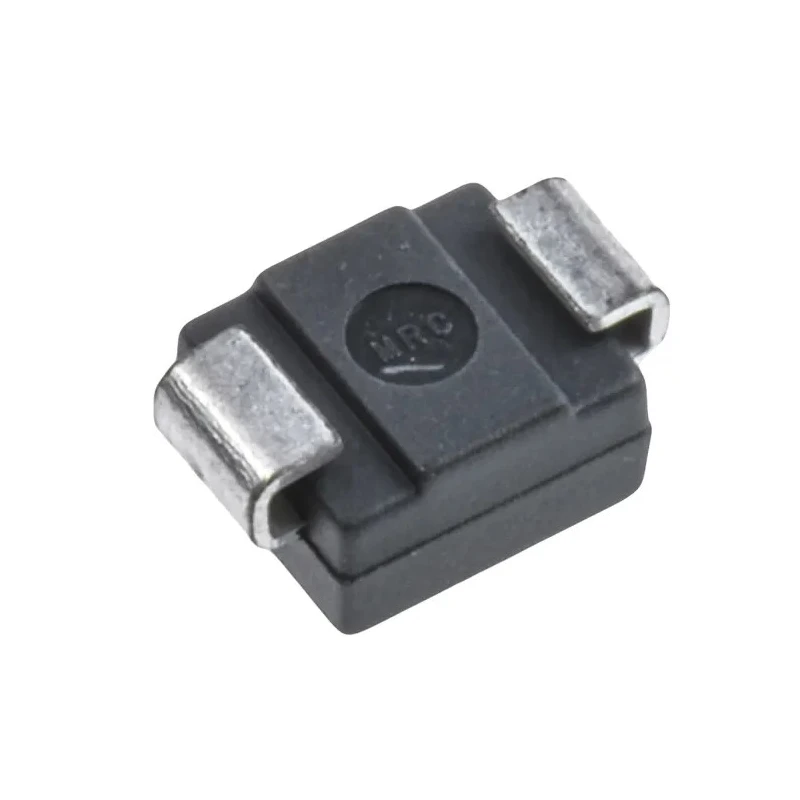

STMicroelectronics 150 V 3 A Schottky Diode Surface Mount DO-214AA 2-Pin STPS3150U

STMicroelectronics STPS3150U is a high-performance Schottky diode designed for efficient switching and rectification tasks in power electronics. This device is rated for a maximum continuous forward current of 3 A and a peak reverse voltage of 150 V, making it suitable for various power supply and voltage regulation applications.

The diode is housed in a compact DO-214AA surface mount package with precise physical dimensions of 4.6 mm length, 3.95 mm width, and 2.45 mm height, facilitating integration into high-density circuit boards.

Operating reliably within a broad temperature range from -65°C to 175°C, it suits demanding industrial and commercial environments. It also supports a peak non-repetitive forward surge current of 100 A, making it robust against transient conditions.

The device features a low maximum forward voltage drop of 820 mV which enhances energy efficiency by reducing power loss during conduction. Its peak reverse current is minimal at 2 μA, contributing to low leakage and improved device reliability.

This single Schottky Diode with 2 pins is ideal for use in DC/DC converters, free-wheeling diodes in motor drives, and power rectifier circuits across industrial, manufacturing, laboratory, and automotive electronic systems.

The diode supports a maximum continuous forward current of 3 amperes. It has a peak reverse repetitive voltage of 150 volts suitable for various power management applications. Features a low forward voltage drop of 820 millivolts to improve energy efficiency.

Operates reliably in temperatures from -65°C to 175°C. Offers a peak non-repetitive forward surge current capability of 100 amperes. Compact DO-214AA package with dimensions 4.6 mm length, 3.95 mm width, and 2.45 mm height.

Pin count is 2, configured as a single Schottky barrier diode. Maximum peak reverse current is 2 microamperes ensuring minimal leakage. Designed for surface mount applications in electronics and power conversion equipment.

This STMicroelectronics diode is widely used in industrial automation, power supply design, telecommunications equipment, and automotive electronics. Its high temperature tolerance and reliable characteristics make it a preferred choice for engineers requiring durable and efficient power components.

For additional support, designers can access 3D models, schematics, and technical documentation provided by STMicroelectronics to facilitate smooth integration and testing. Explore more components and solutions within the Semiconductors and Diodes category at EnvMart for comprehensive options tailored to your application needs.
