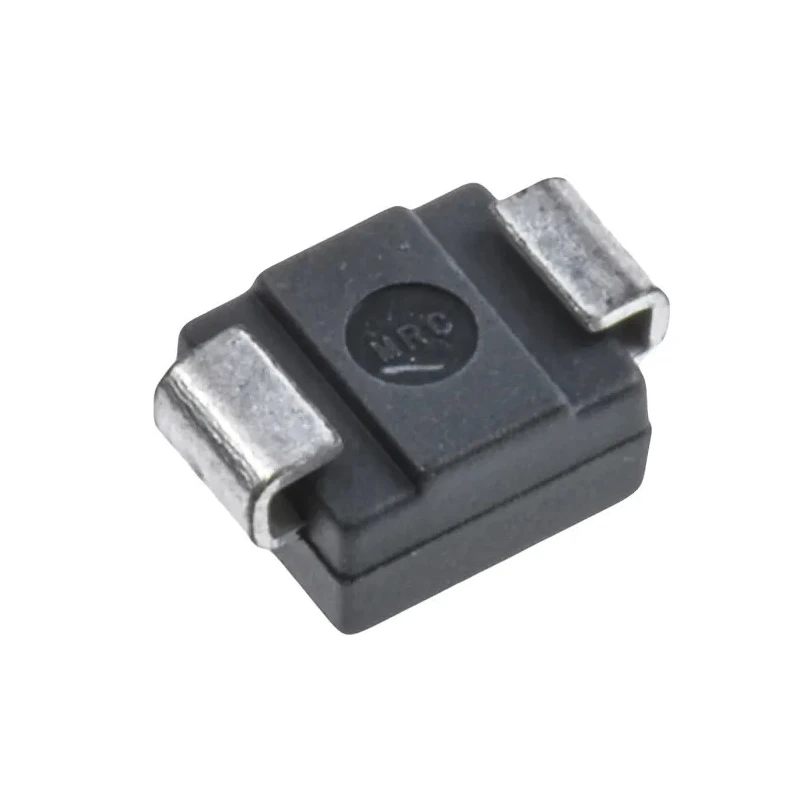

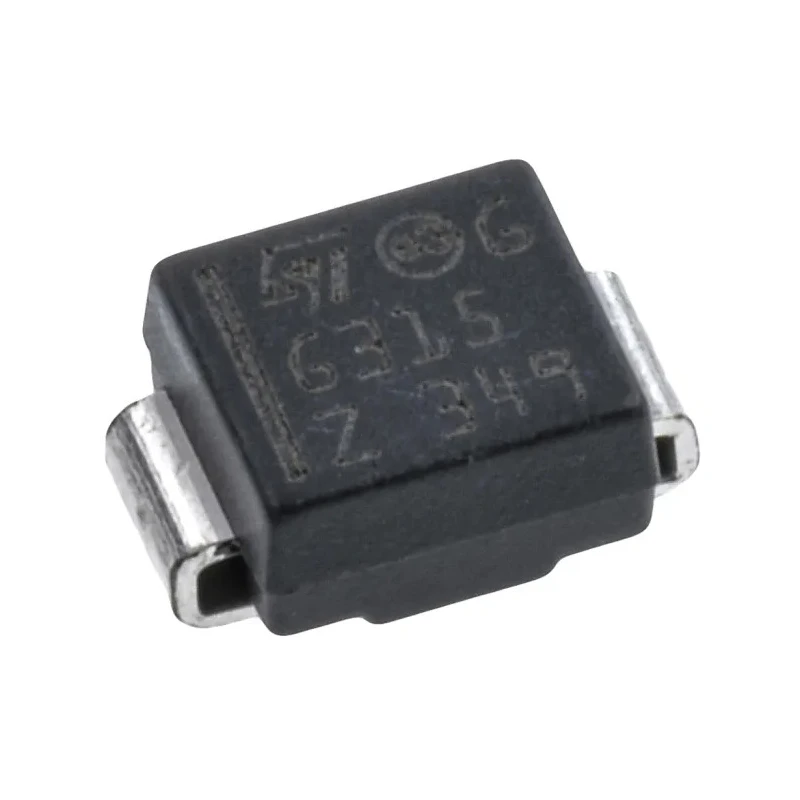

STMicroelectronics Schottky Diode 150 V 3 A Surface Mount DO-214AA STPS3150U

STMicroelectronics STPS3150U Schottky Diode is a high-reliability semiconductor component designed for efficient rectification in electronic circuits. This diode features a surface mount DO-214AA package and supports continuous forward current of 3 A with a peak reverse repetitive voltage of 150 V, suitable for power electronic applications.

The device operates efficiently within a wide temperature range from -65°C to 175°C, ensuring robust performance in demanding industrial or automotive environments. Its low forward voltage drop of 820 mV and low peak reverse leakage current of 2 μA reduce power losses and improve overall circuit efficiency.

The diode configuration is single and is engineered to withstand peak non-repetitive forward surge currents up to 100 A, making it resilient against transient overloads. Precise package dimensions of 4.6 mm length, 3.95 mm width, and 2.45 mm height enable compact PCB designs and facilitate automated assembly processes.

Typical applications include power supply rectification, voltage clamping, reverse voltage protection, and general industrial electronic circuits requiring reliable Schottky barrier diodes. The surface mount package type supports modern manufacturing techniques, to enhance productivity and consistency in volume production.

Designed for low forward voltage drop and fast switching applications. Allows operation between -65°C to 175°C temperature range. Single diode configuration with a peak repetitive reverse voltage of 150 V. Package dimensions approximately 4.6mm length, 3.95mm width, and 2.45mm height.

Peak surge forward current rating of 100 A for transient conditions. Maximum forward voltage is 820 mV ensuring high efficiency. Surface mount design facilitates automated assembly processes. Low peak reverse leakage current of 2 μA enhances reliability.

Suitable for power supply, automotive, and general electronic circuit protection.

This product is part of the STMicroelectronics series of Schottky Barrier Diodes, designed for industrial, automotive, and consumer electronics applications. Browse the Semiconductor Diode category on EnvMart for an extensive selection of electronic components suited for various professional uses.
