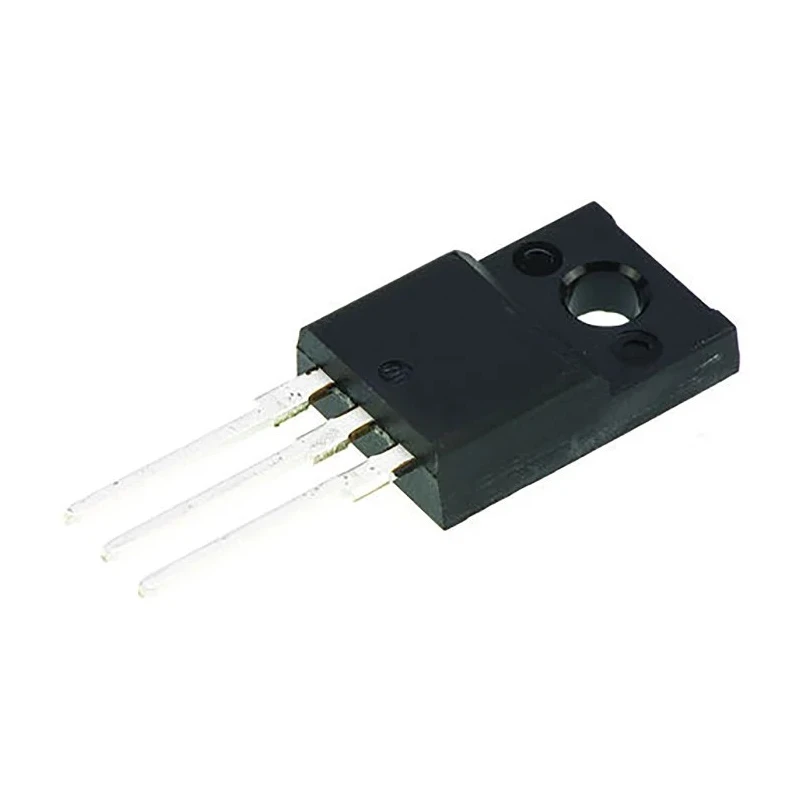

STMicroelectronics 60 V 10 A Schottky Barrier Diode, 3-Pin TO-220ABFP STPS10L60CFP
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 9.3mm |
| Length | 10.4mm |
| Model | STPS10L60CFP |
| Width | 4.6mm |
| Mount Type | Through Hole |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-220ABFP |
| Minimum Operating Temperature | -65°C |
| Pin Count | 3 |
| Maximum Continuous Forward Current If | 10A |
| Peak Reverse Repetitive Voltage Vrrm | 60V |
| Diode Configuration | Common Cathode |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 220μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 180A |
| Maximum Forward Voltage Vf | 0.52V |
Key Features
- The diode supports a maximum continuous forward current of 10A ensuring robust performance.
- It features a peak reverse repetitive voltage of 60V suitable for various electronic circuits.
- With a low maximum forward voltage of 0.52V, it minimizes power loss during operation.
- The device operates reliably from -65°C up to a maximum of 150°C ambient temperature.
- It provides a peak non-repetitive forward surge current capacity of 180A for transient tolerance.
- This Schottky diode has a compact 3-pin common cathode configuration.
- Mount type is through-hole with dimensions approximately 10.4mm length, 9.3mm height, and 4.6mm width.
- Peak reverse current is very low at 220μA, enhancing efficiency in sensitive applications.
Product Description
STMicroelectronics STPS10L60CFP is a high-quality 60 V, 10 A Schottky Barrier Diode housed in a 3-pin TO-220ABFP package, intended for reliable performance in electronic and power converter applications. This diode delivers efficient rectification with low voltage drop and high surge current capability.
Its through-hole mount and compact dimensions of 10.4mm length, 9.3mm height, and 4.6mm width facilitate easy PCB integration and thermal management. Operating temperature range from -65°C to 150°C allows usage in harsh industrial, automotive, and power supply environments.
The device features a common cathode diode configuration with a maximum continuous forward current of 10 A and a peak non-repetitive forward surge current of 180 A, enabling high reliability in transient conditions. Its peak reverse voltage rating of 60 V suits a wide range of electronic circuits requiring fast switching and low power dissipation.
The diode supports a maximum continuous forward current of 10A ensuring robust performance. It features a peak reverse repetitive voltage of 60V suitable for various electronic circuits. With a low maximum forward voltage of 0.52V, it minimizes power loss during operation.
The device operates reliably from -65°C up to a maximum of 150°C ambient temperature. It provides a peak non-repetitive forward surge current capacity of 180A for transient tolerance. This Schottky Diode has a compact 3-pin common cathode configuration.
Mount type is through-hole with precise package TO-220ABFP. Its low peak reverse current of 220μA optimizes circuit efficiency.
This product does not have automotive certification but is suitable for automotive electronic applications where certification is not mandated. Applications include power supplies, rectification in DC-DC converters, freewheeling diodes in switching regulators, and general purpose power electronics.
Explore the Electronics & Electricals category on EnvMart to find more semiconductor solutions and power rectifiers from leading brands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for the STMicroelectronics STPS10L60CFP is 10A.
This diode has a peak reverse repetitive voltage rating of 60V, making it suitable for various electronic circuits.
The maximum forward voltage drop for this model is 0.52V, which helps minimize power loss during operation.
It operates reliably within a temperature range of -65°C to 150°C.
The diode can handle a peak non-repetitive forward surge current of 180A, providing good transient tolerance.
This model features a common cathode configuration, which is typical for Schottky diodes.
The dimensions of the TO-220ABFP package are approximately 10.4mm in length, 9.3mm in height, and 4.6mm in width.
The STPS10L60CFP uses a through-hole mounting type, facilitating easy integration onto PCBs.
The peak reverse current is very low at 220μA, which enhances efficiency in sensitive applications.
This diode is suitable for applications such as power supplies, rectification in DC-DC converters, and freewheeling diodes in switching regulators.
The STMicroelectronics STPS10L60CFP is manufactured in India.
This diode has a pin count of 3, corresponding to its common cathode configuration.
